Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

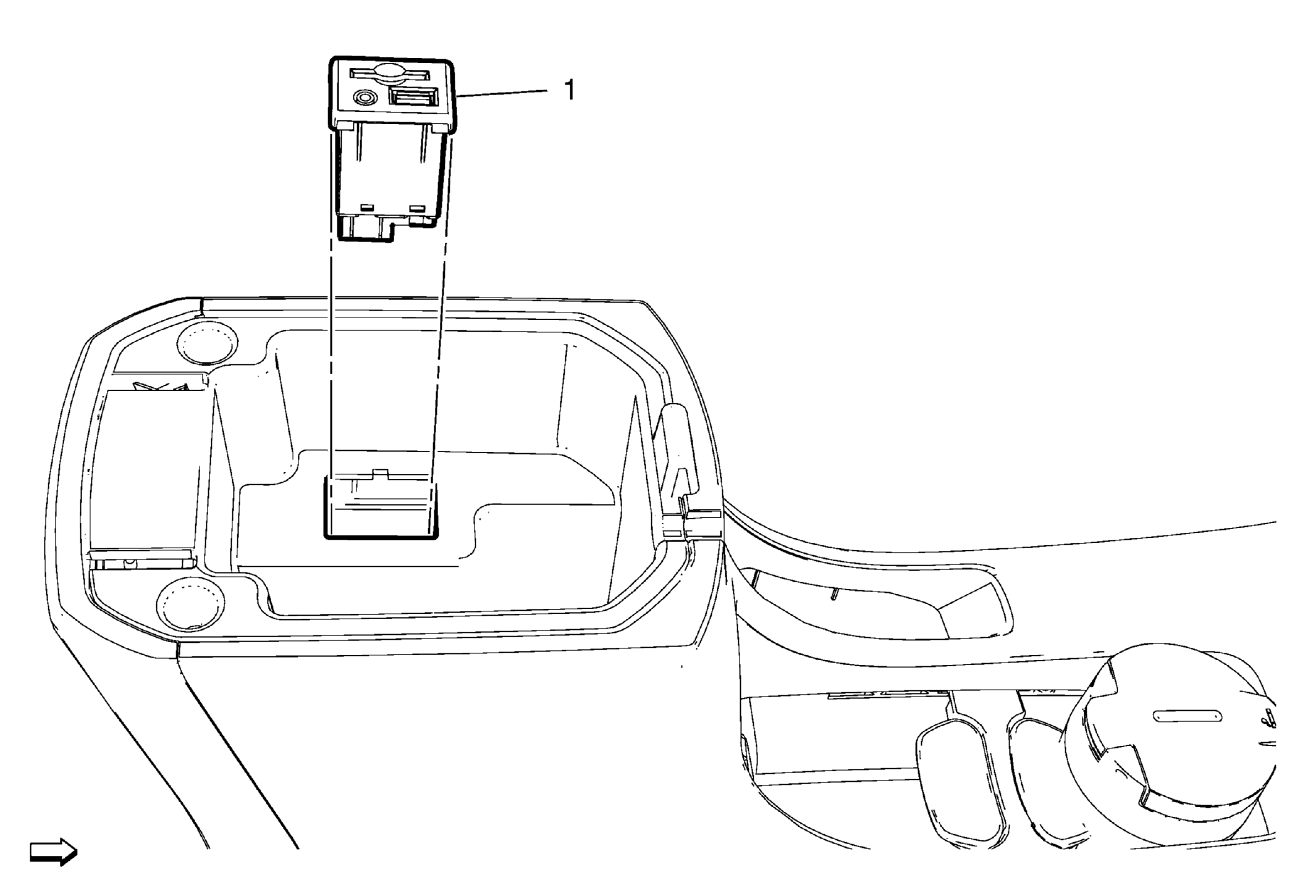

Fig 1: Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle
GM2595340Courtesy of GENERAL MOTORS COMPANY
Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

Callout Component Name
Preliminary Procedure
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1 Audio Disc Player and USB and Auxiliary In and Memory Card Receptacle

Procedure

  1. Use a suitable screwdriver in order to disengage receptacle from the front floor console.
  2. Disconnect electrical components.
