Power, Ground, Serial Data, Antenna And Display

WARNING: This page is about a different car, the 2012 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

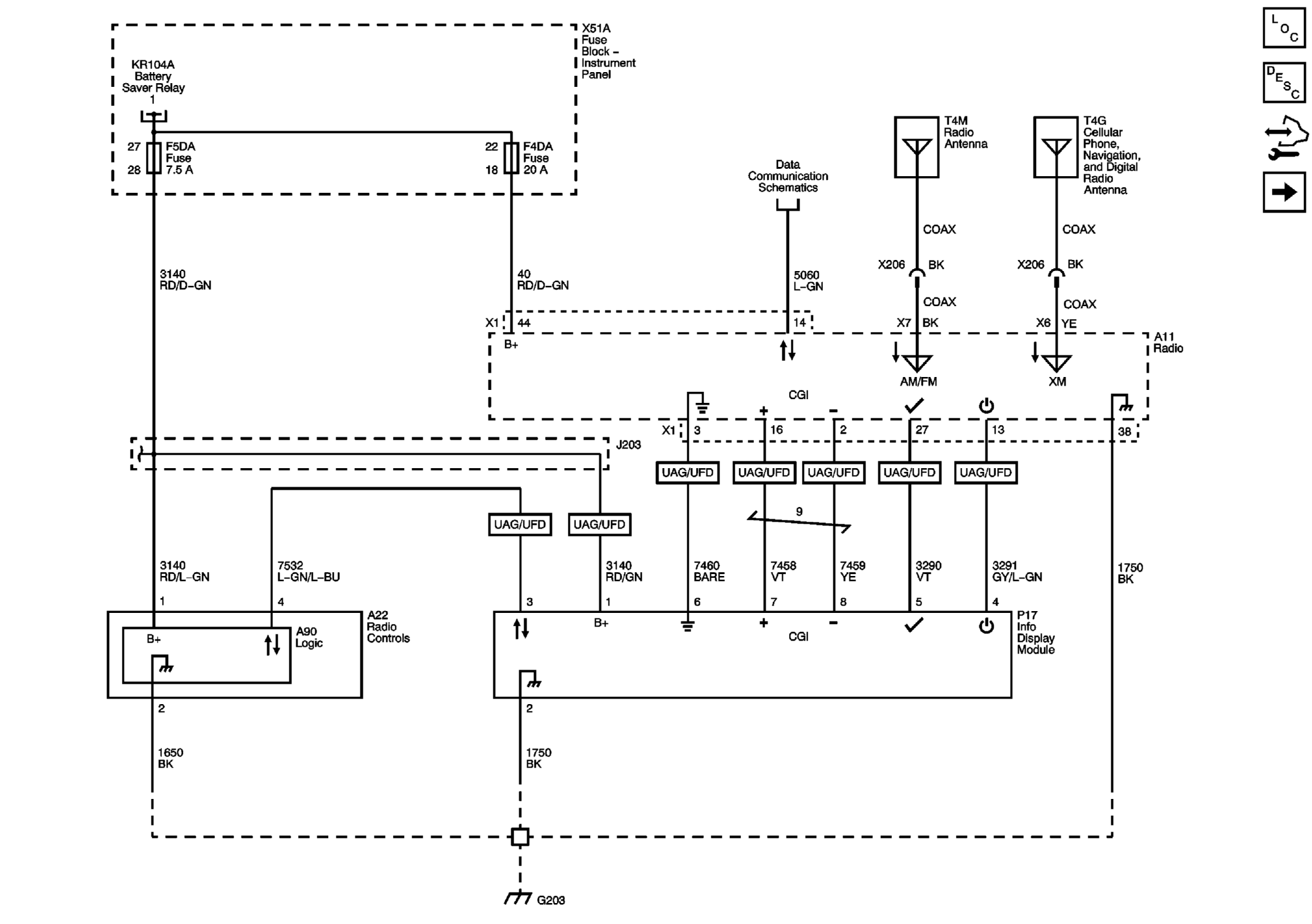

Fig 1: Power, Ground, Serial Data, Antenna And Display Wiring Schematic
GM2585461Courtesy of GENERAL MOTORS COMPANY
