Communication Interface Module Bracket Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

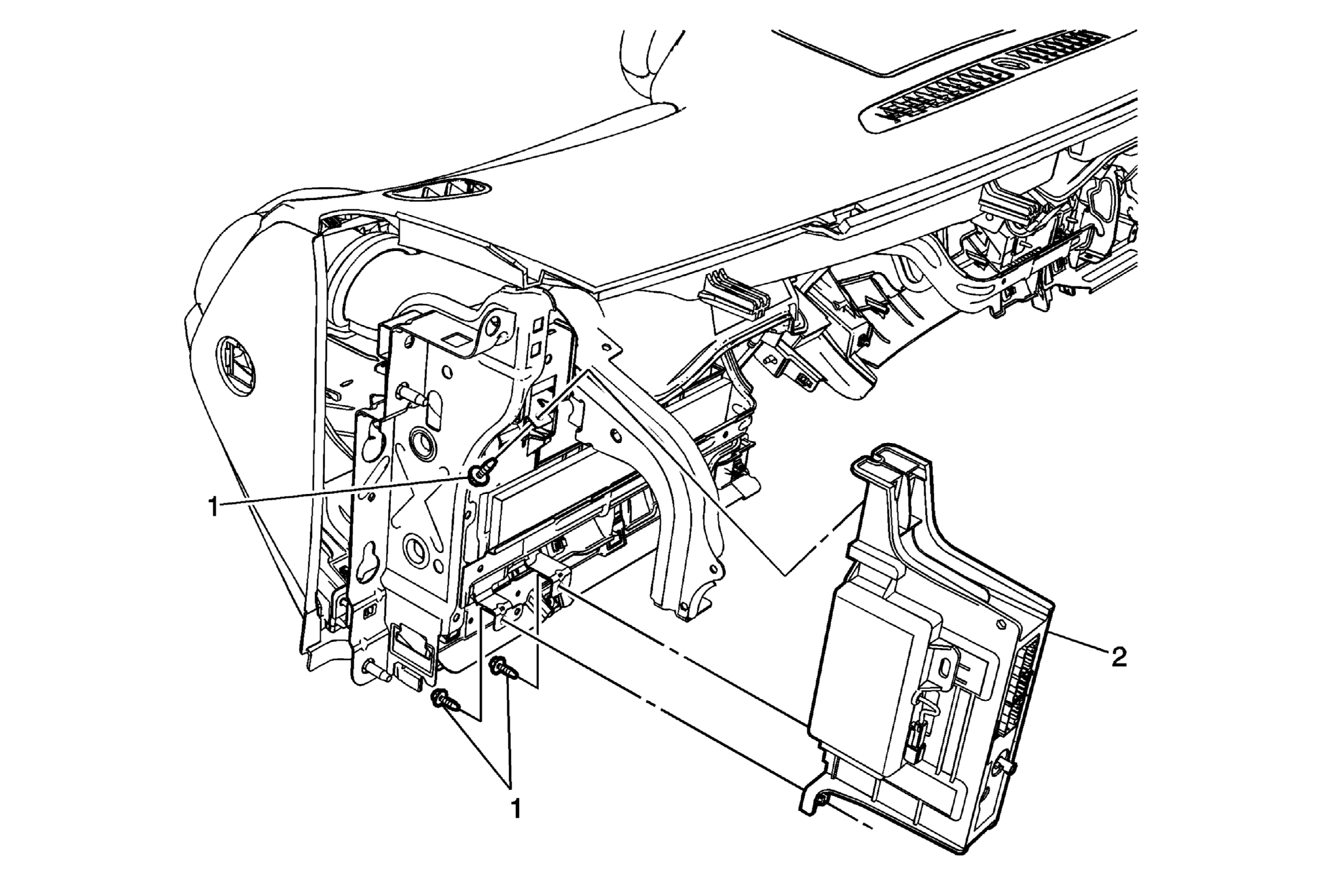

Fig 1: Communication Interface Module Bracket
GM2348943Courtesy of GENERAL MOTORS COMPANY
Communication Interface Module Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
1 Communication Interface Module Bracket Bolts (Qty: 3)
CAUTION:

Refer to Fastener Caution .

2 Communication Interface Module Bracket

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
