Radio Control Module Replacement
WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
Radio Control Module Replacement

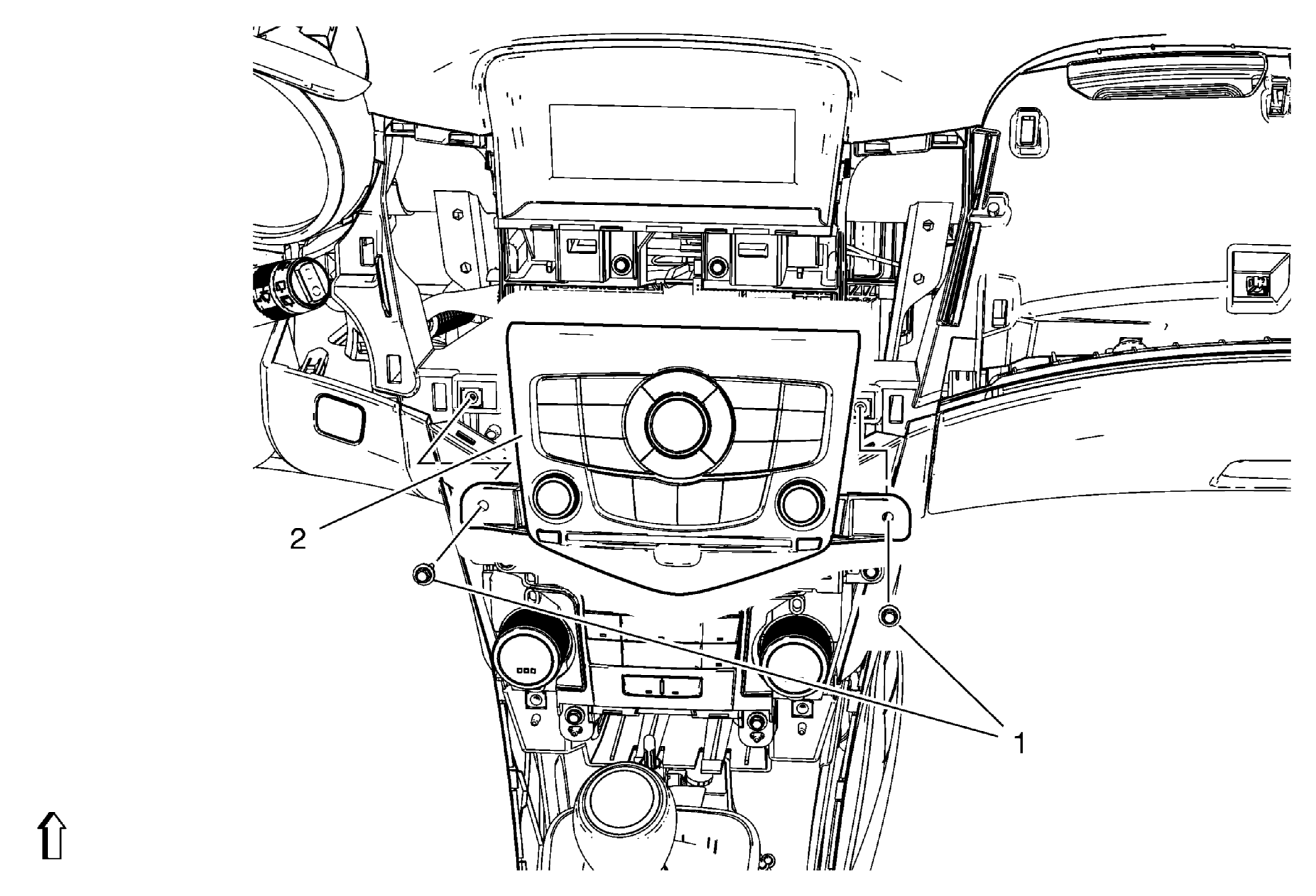

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement . |
|
| 1 | Radio Control Module Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Control Module Procedure Disconnect electrical connectors. |
