Power, Ground, Serial Data, Antenna and Display Wiring Schematics

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

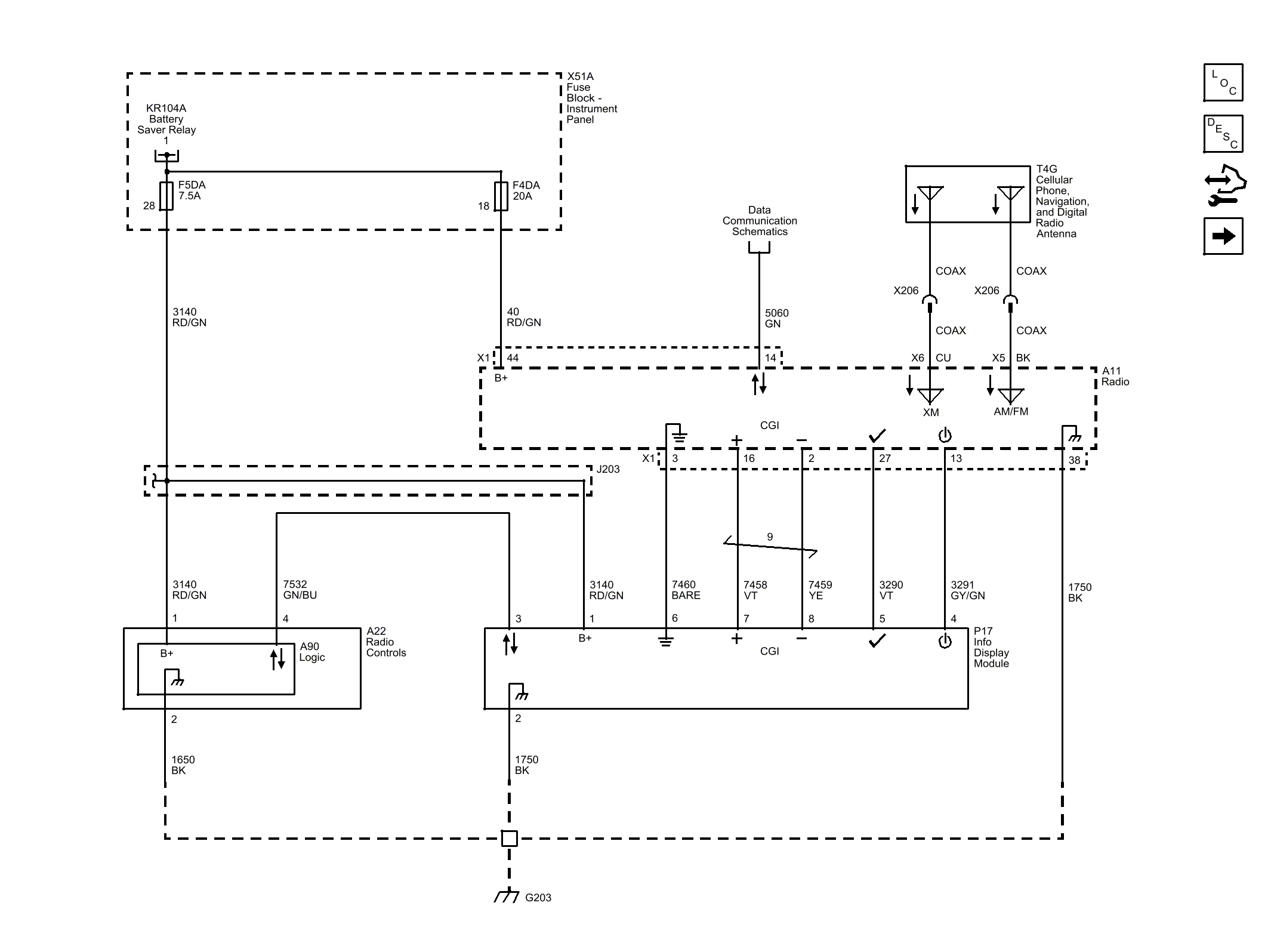

Fig 1: Power, Ground, Serial Data, Antenna and Display Wiring Schematic
GM3250275Courtesy of GENERAL MOTORS COMPANY
