Rear of Instrument Panel Components

Items
1: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X2 (UE1)
2: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
3: X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1 X51A Fuse Block - Instrument Panel, Wire Entry
4: K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
5: K43 Power Steering Control Module K43 Power Steering Control Module X1 K43 Power Steering Control Module X2
6: F114D Knee Air Bag - Driver (AYF) F114D Knee Air Bag - Driver (AYF)
7: F114P Knee Air Bag - Passenger (AYF) F114P Knee Air Bag - Passenger (AYF)
8: C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery (UE1)

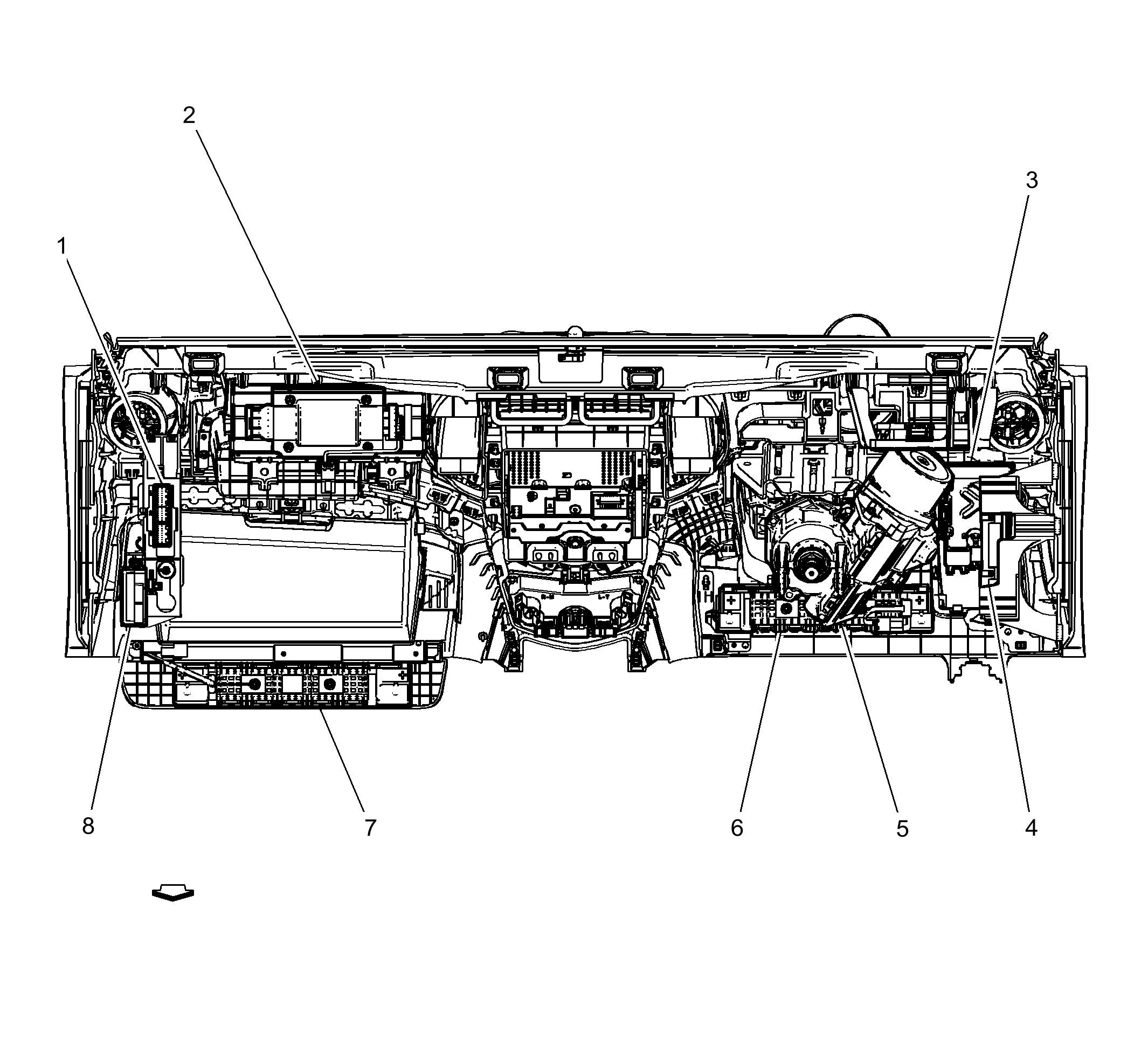

Fig 1: Rear of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
