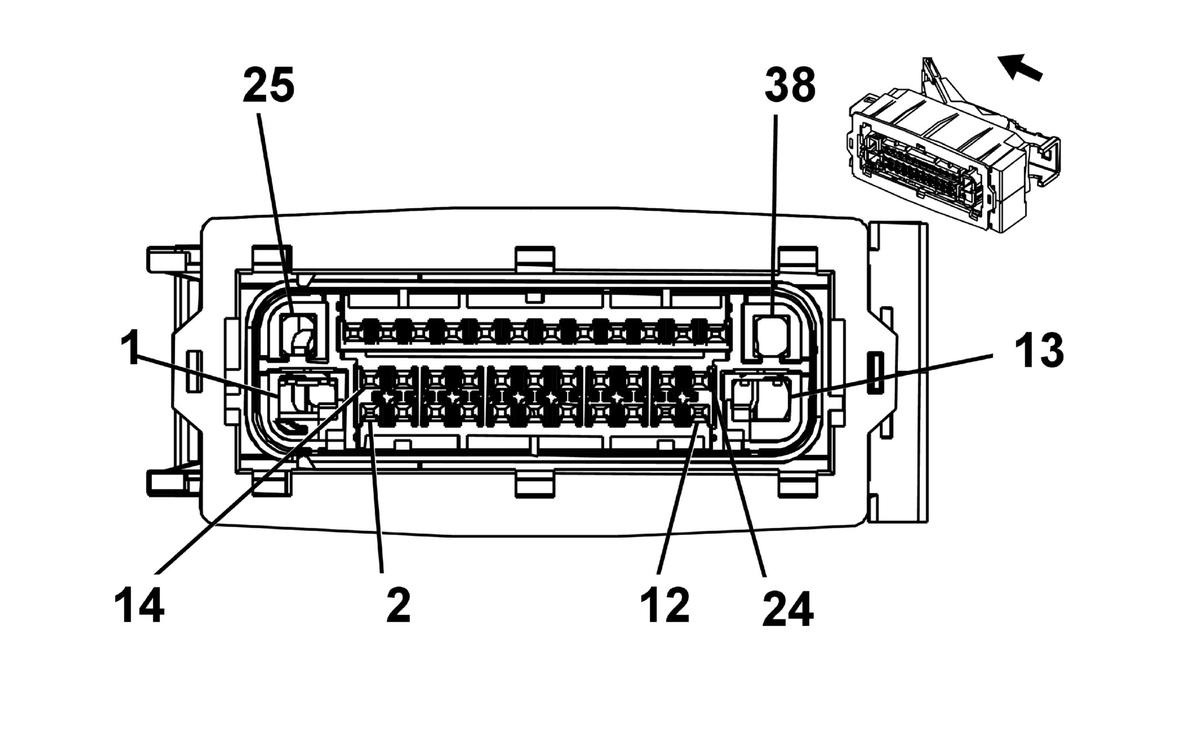

K17 Electronic Brake Control Module

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Pending	Pending	Pending	Pending	Pending	Pending	Pending

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	4	RD/YE	140	Battery Positive Voltage	I	JM4/FX3
2-3	-	-	-	Not Used	-	-
4	0.5	GN/BN	2087	Combined Vehicle Inertial Sensor Supply Voltage	I	FX3
5-11	-	-	-	Not Used	-	-
12	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) (2)	I	FX3
13	4	BK	250	Ground	I	JM4/FX3
14	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	JM4/FX3
15-17	-	-	-	Not Used	-	-
18	0.5	YE	872	Wheel Speed Sensor Signal Right Front	I	JM4/FX3
19	0.5	VT	882	Wheel Speed Sensor Signal Right Rear	I	JM4/FX3
20	0.5	GY/BK	7127	Wheel Speed Sensor Supply Voltage Left Rear	I	JM4/FX3
21	0.5	GY/WH	7064	Wheel Speed Sensor Supply Voltage Left Front	I	(JM4/FX3)
22	0.5	GN/GY	333	Brake Fluid Level Sensor Signal	I	-
23	-	-	-	Not Used	-	-
24	0.5	WH	6106	High Speed GMLAN Serial Data (-) (2)	I	FX3
25	2.5	RD/WH	40	Battery Positive Voltage	I	JM4/FX3
26	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	I	JM4/FX3
27-28	-	-	-	Not Used	-	-
29	0.5	WH/BU	5986	Serial Data Communication Enable	I	JM4/FX3
30	-	-	-	Not Used	-	-
31	0.5	GY/BN	7065	Wheel Speed Sensor Supply Voltage Right Front	I	JM4/FX3
32	0.5	GY/YE	7128	Wheel Speed Sensor Supply Voltage Right Rear	I	JM4/FX3
33	0.5	BU	884	Wheel Speed Sensor Signal Left Rear	I	JM4/FX3
34	0.5	GY	830	Wheel Speed Sensor Signal Left Front	I	-
35-37	-	-	-	Not Used	-	-
38	2.5	BK	250	Ground	I	JM4/FX3
