Hazard Warning Switch Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

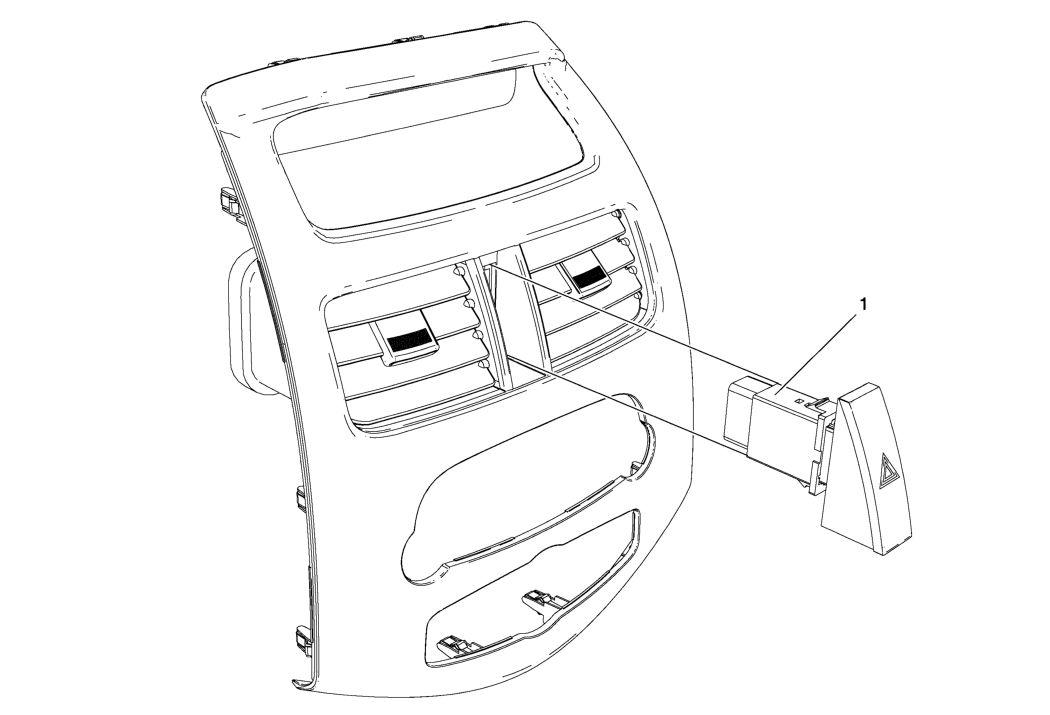

Fig 1: Hazard Warning Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement
1	Hazard Warning Switch Procedure Disconnect the electrical connector. Squeeze tabs on switch to unsnap from housing bracket.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement

Hazard Warning Switch

Procedure

Disconnect the electrical connector.
Squeeze tabs on switch to unsnap from housing bracket.
