Ignition Lock Cylinder
WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

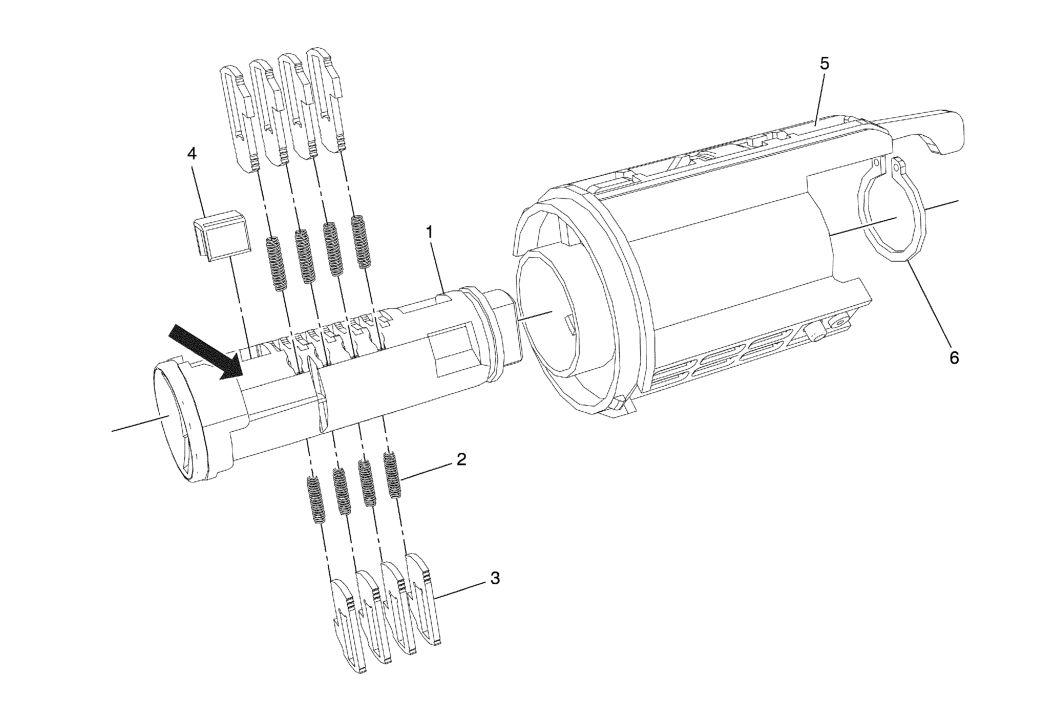

- Tumbler spring (2) and tumbler (3) to be assembled into cylinder (1)-In this case start with the tumbler near the cylinder head and work through until the last tumbler at the cylinder ground. Use the key as tool by pushing it in step by step to hold the already assembled tumblers in place.
- Slide piece (4) to be assembled into the pocket in cylinder (1).
- Apply grease on the cylinder diameter.
- Assemble the rotor case (5) and sub-assembly.
- Remove the key.
- Install the C-ring (6) to the bottom of the cylinder.
