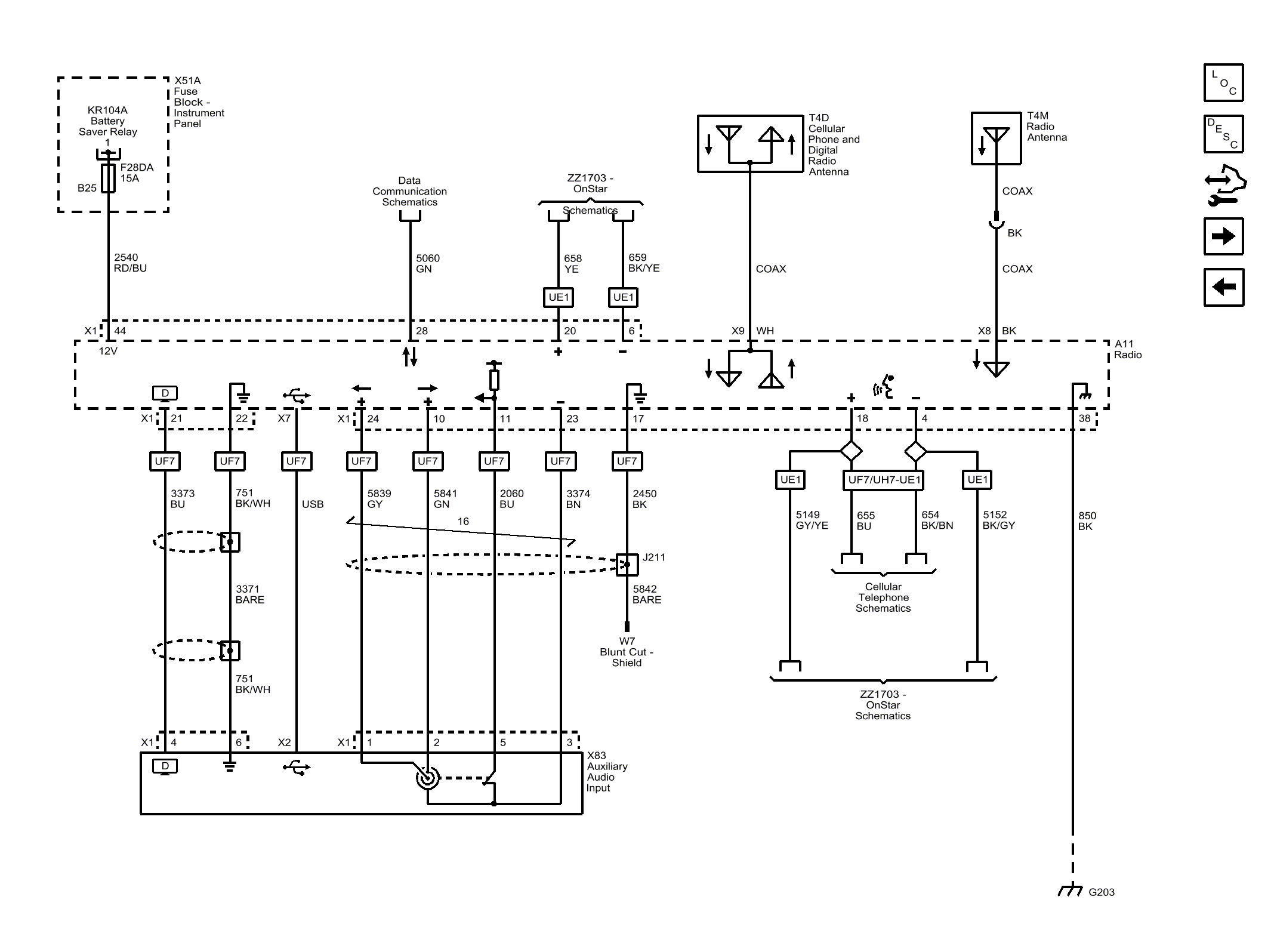

Power, Ground, Serial Data, Antenna, and Audio Input Wiring Schematics

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
