Front of Engine Compartment Components

Front of Engine Compartment Components

Items
1:  G10 Cooling Fan Motor G10 Cooling Fan Motor
2:  B34B Engine Coolant Temperature Sensor 2 (EVP) B34B Engine Coolant Temperature Sensor 2

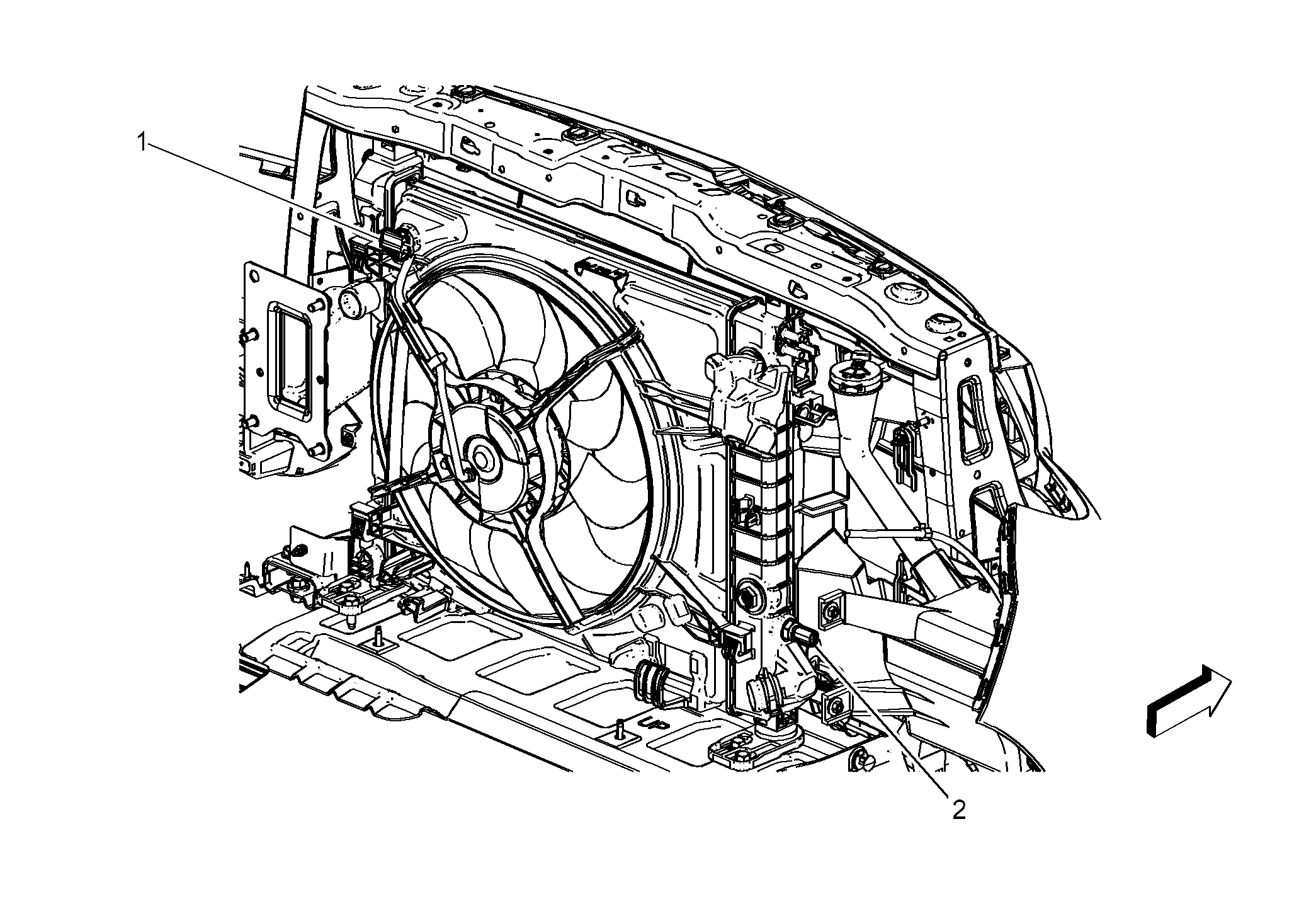

Fig 1: Front of Engine Compartment Components
GM2772125Courtesy of GENERAL MOTORS COMPANY
