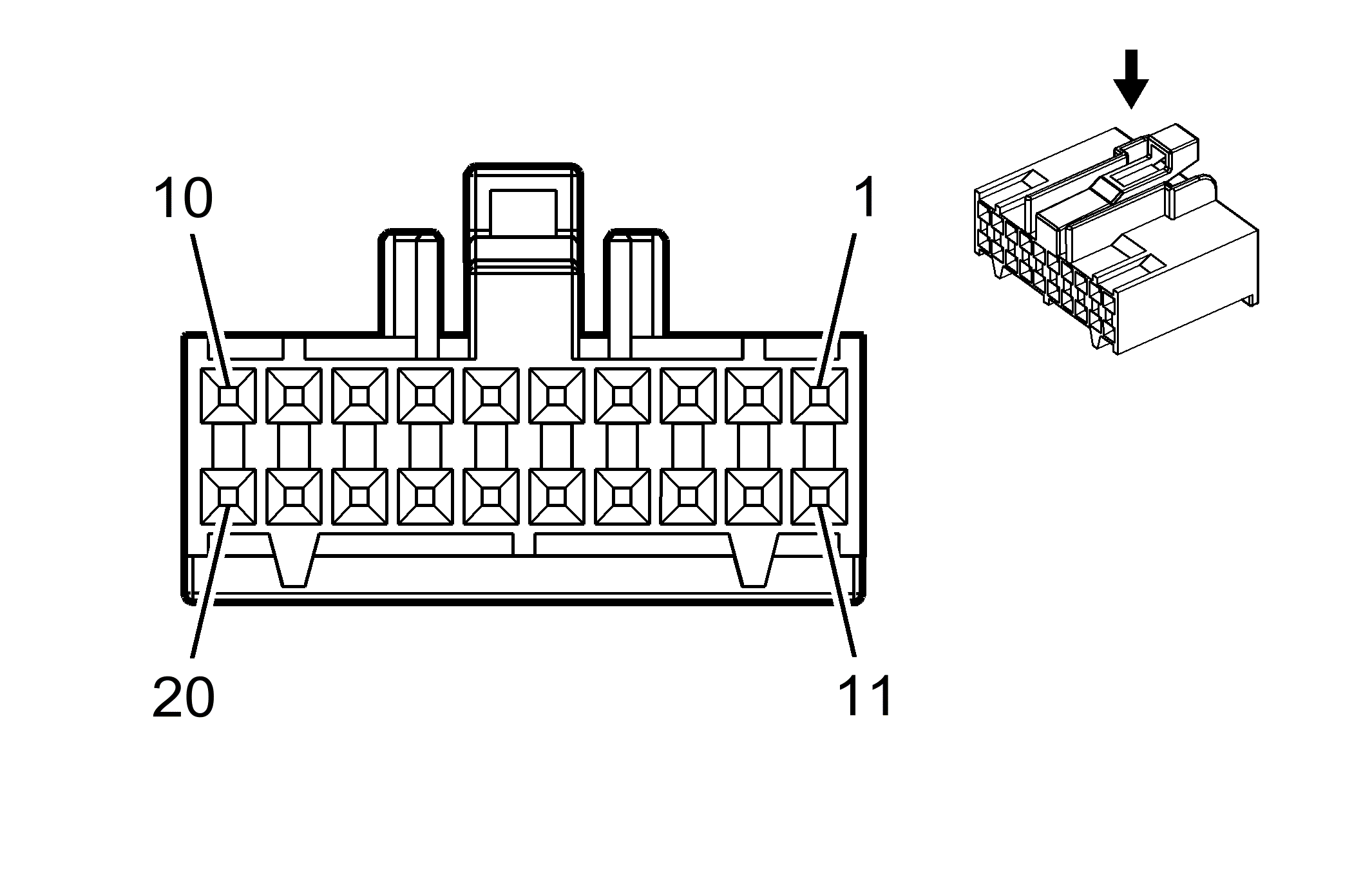

P17 Info Display Module
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 172047-2
- Service Connector: Pending
- Description: 20-Way F Dual Line Interconnect Type
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pending |
Pending |
Pending |
Pending |
Pending |
Pending |
Pending |
P17 Info Display Module
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/GY |
139 |
Run/Crank Ignition 1 Voltage |
I |
STD |
| 2 |
0.35 |
GY |
728 |
Security Indicator Control |
I |
STD |
| 3 |
0.35 |
BU |
2307 |
Passenger Air Bag On Indicator Control |
I |
AYF/C99 |
| 4 |
- |
- |
- |
Not Used |
- |
- |
| 5 |
0.35 |
BU |
2307 |
Passenger Air Bag On Indicator Control |
I |
AYF/C99 |
| 6 |
0.35 |
GN |
2308 |
Passenger Air Bag Off Indicator Control |
I |
(AYF/C99) |
| 7 |
0.5 |
BK |
750 |
Ground |
I |
STD |
| 8 |
0.35 |
GN/BU |
183 |
Front Fog Lamp Indicator Control |
I |
STD |
| 9 |
0.35 |
BU/VT |
184 |
Rear Fog Lamp Indicator Control |
I |
STD |
| 10 |
0.35 |
WH/GY |
185 |
Low Washer Fluid Indicator Control |
I |
STD |
| 11 |
0.35 |
VT/WH |
5234 |
Passenger Seat Belt Indicator |
I |
TFC |
| 12 |
0.5 |
VT/GY |
139 |
Run/Crank Ignition 1 Voltage |
I |
AK5/AJ7/AYF |
| 13-20 |
- |
- |
- |
Not Used |
- |
- |
