Primary Timing Chain Guide Replacement - Upper

Primary Timing Chain Guide Replacement - Upper

Removal Procedure





1. Remove the spark plugs in order to ease crankshaft/engine rotation. Refer to Spark Plug Replacement Service and Repair.

2. Remove the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.

3. Remove the primary camshaft drive chain tensioner. Refer to Primary Camshaft Intermediate Drive Chain Tensioner Removal Primary Camshaft Intermediate Drive Chain Tensioner Removal.

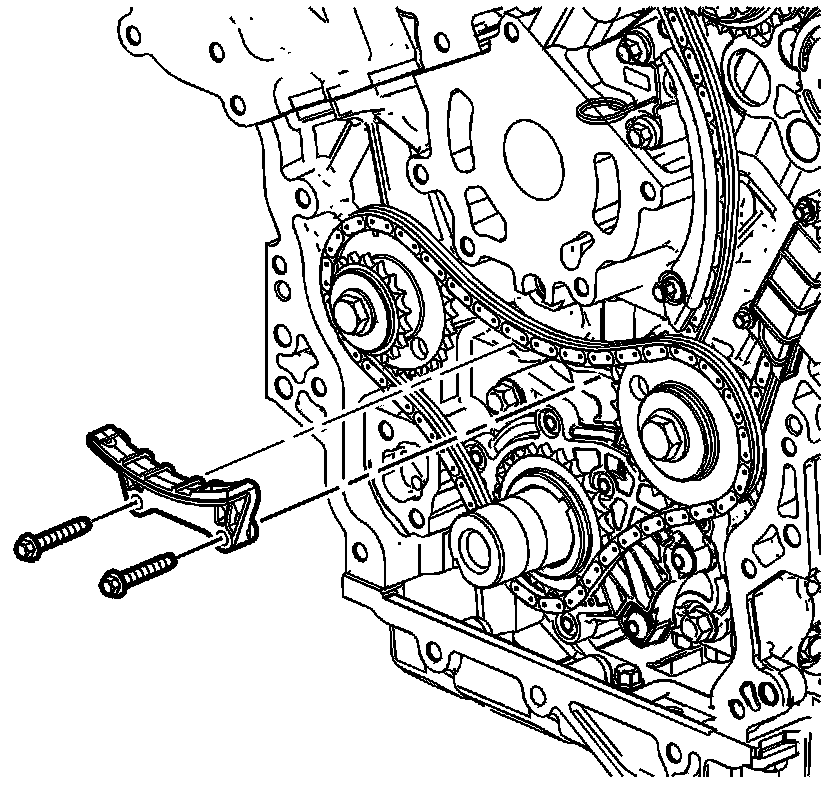

4. Remove the primary upper camshaft drive chain guide. Refer to Primary Timing Chain Guide Removal - Upper Primary Timing Chain Guide Removal - Upper.

Installation Procedure





1. Install the primary upper camshaft drive chain guide. Refer to Primary Timing Chain Guide Installation - Upper Primary Timing Chain Guide Installation - Upper.

2. Install the primary camshaft drive chain tensioner. Refer to Primary Camshaft Intermediate Drive Chain Tensioner Installation Primary Camshaft Intermediate Drive Chain Tensioner Installation.

3. Install the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.

4. Install the spark plugs. Refer to Spark Plug Replacement Service and Repair.
