Ground Views

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

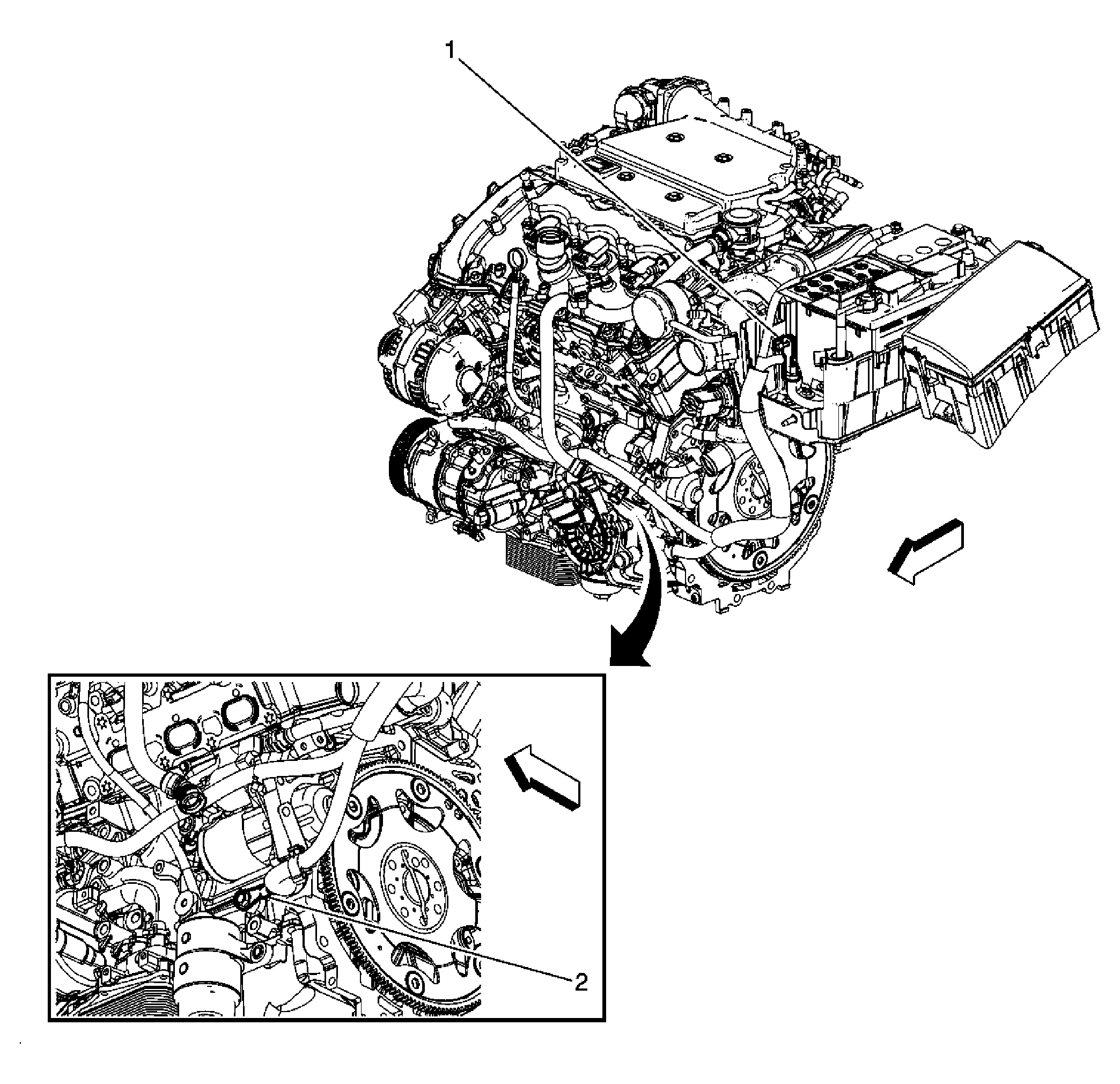

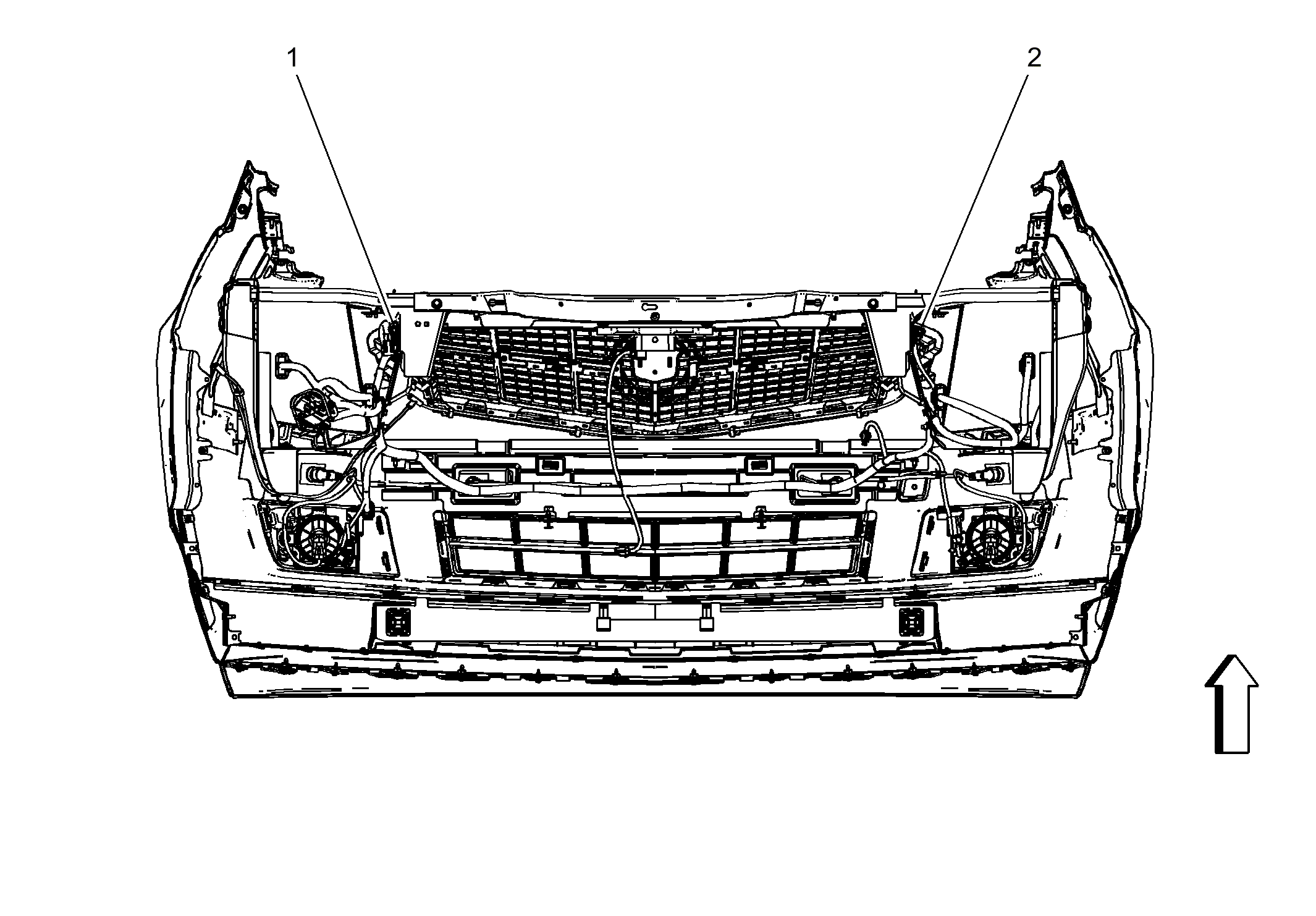

Fig 1: Locating G100 & G113 (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G100
2	G113

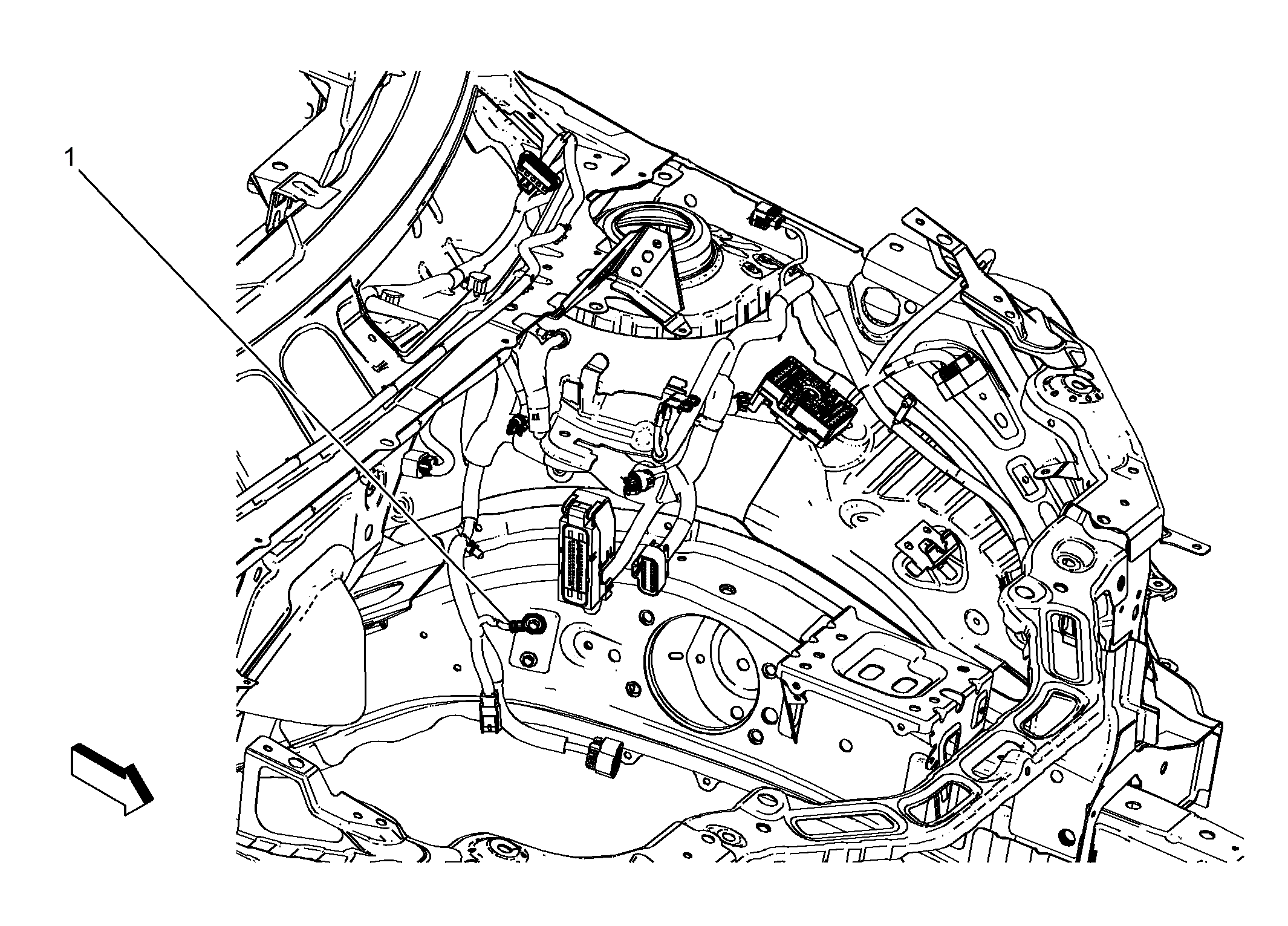

Fig 2: Identifying G100 & G113 (LF1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G100
2	G113

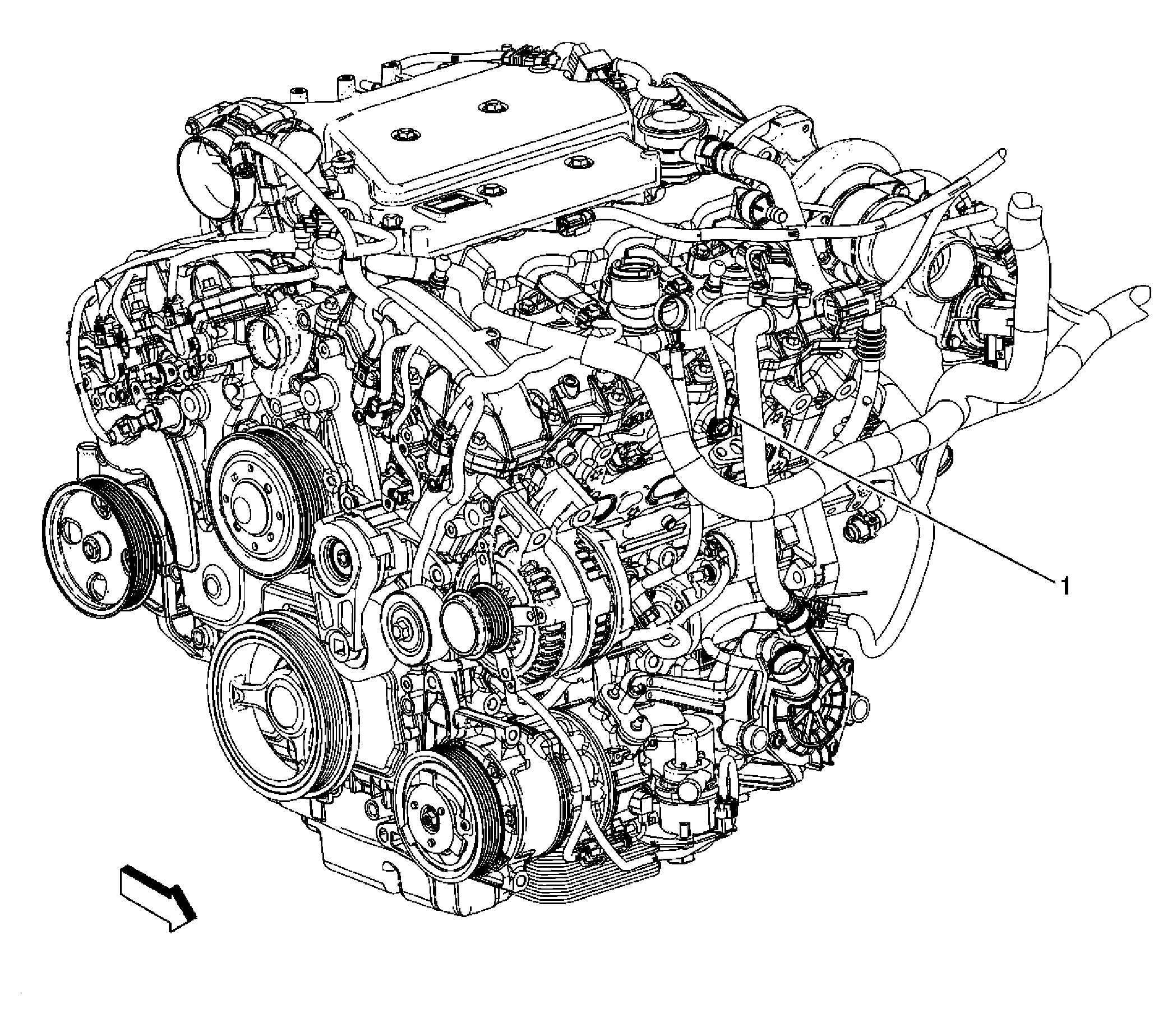

Fig 3: Locating G101 & G102

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	G102

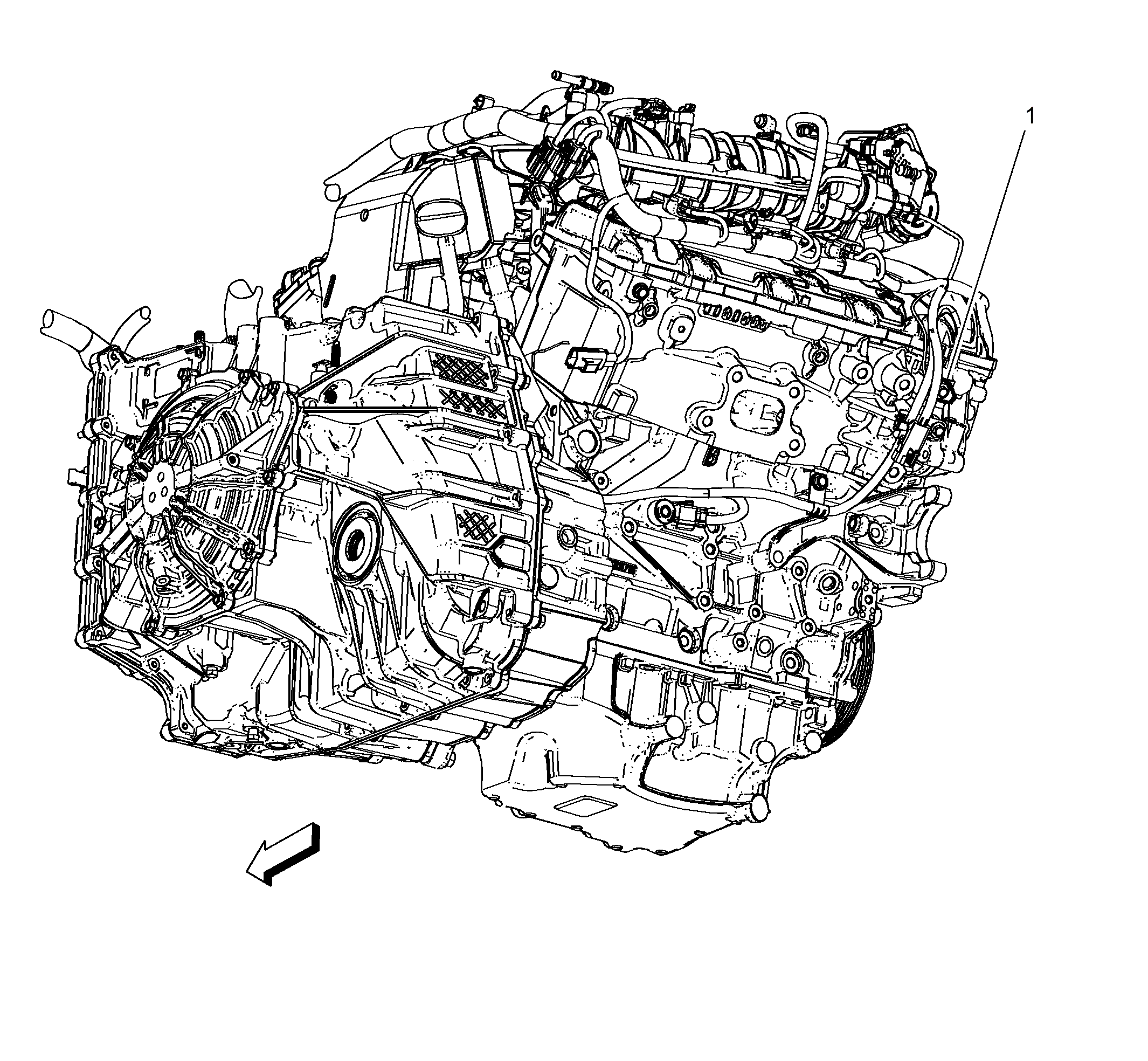

Fig 4: Identifying G110 (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G110

Fig 5: Identifying G110 (LF1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G110

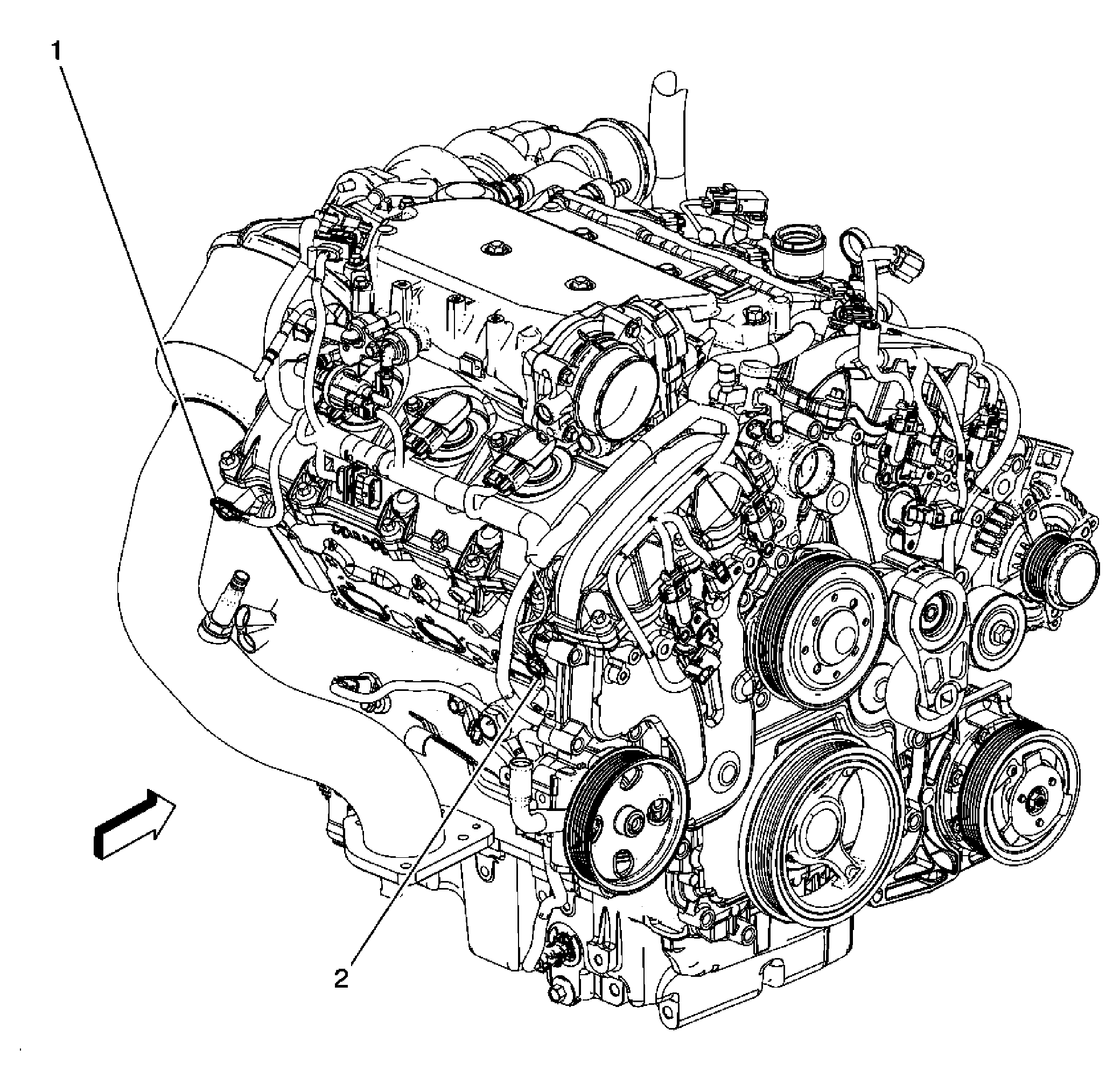

Fig 6: Identifying G111 & G112 (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G112
2	G111

Fig 7: Identifying G112 (LF1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G112

Fig 8: Identifying G131

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G131

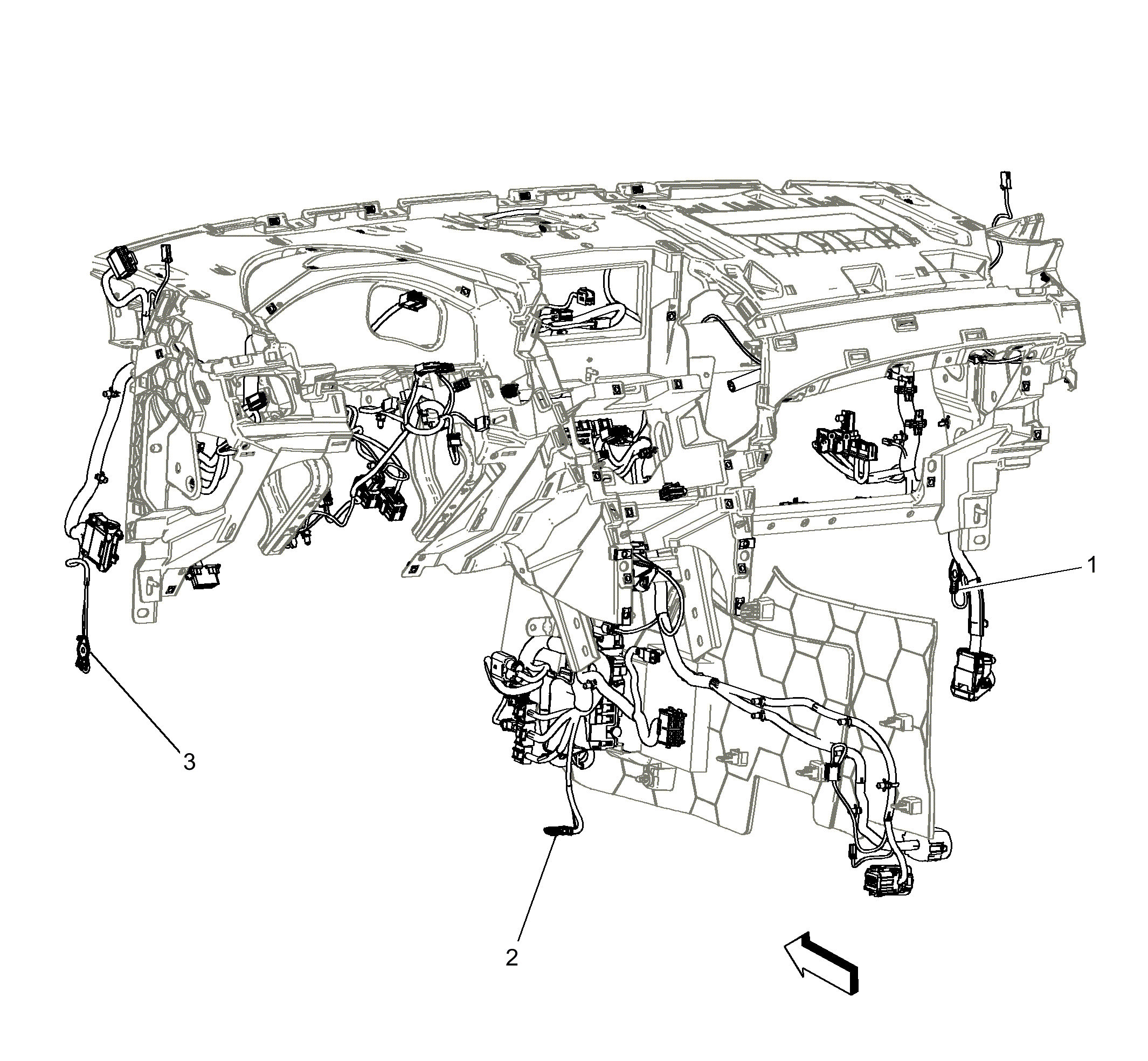

Fig 9: Locating G200, G201 & G202

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G200
2	G202
3	G201

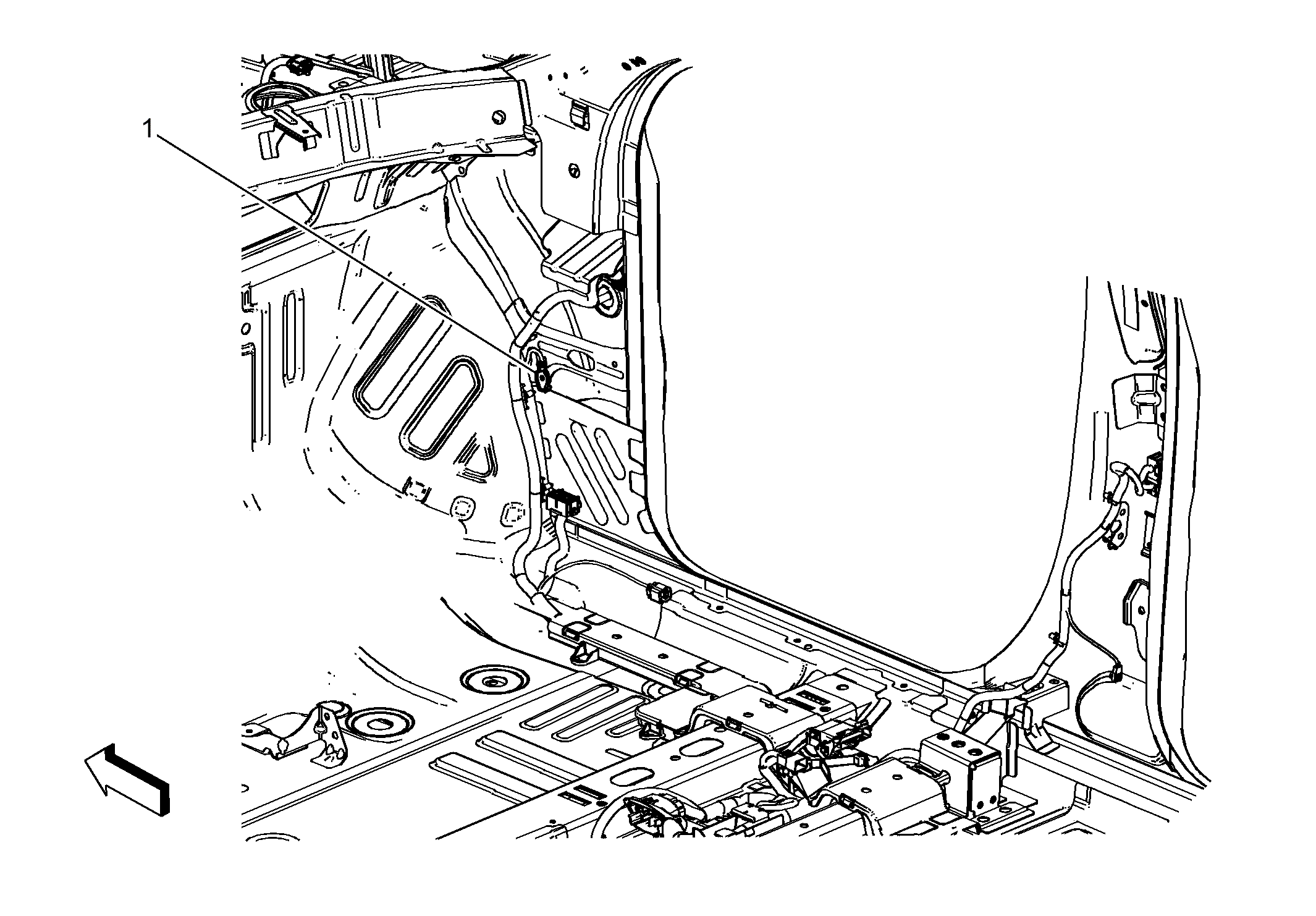

Fig 10: Locating G300

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G300

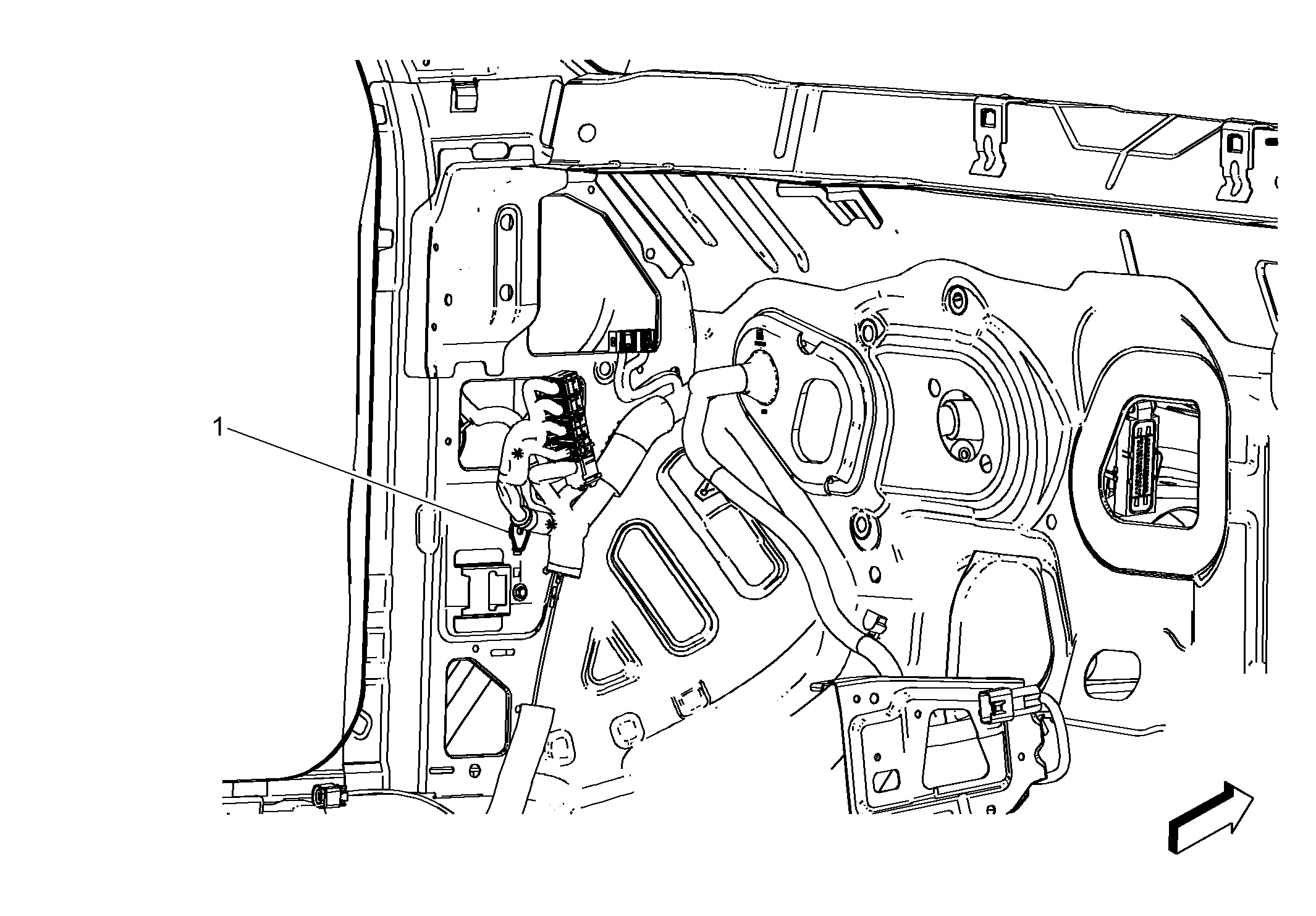

Fig 11: Locating G301

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301

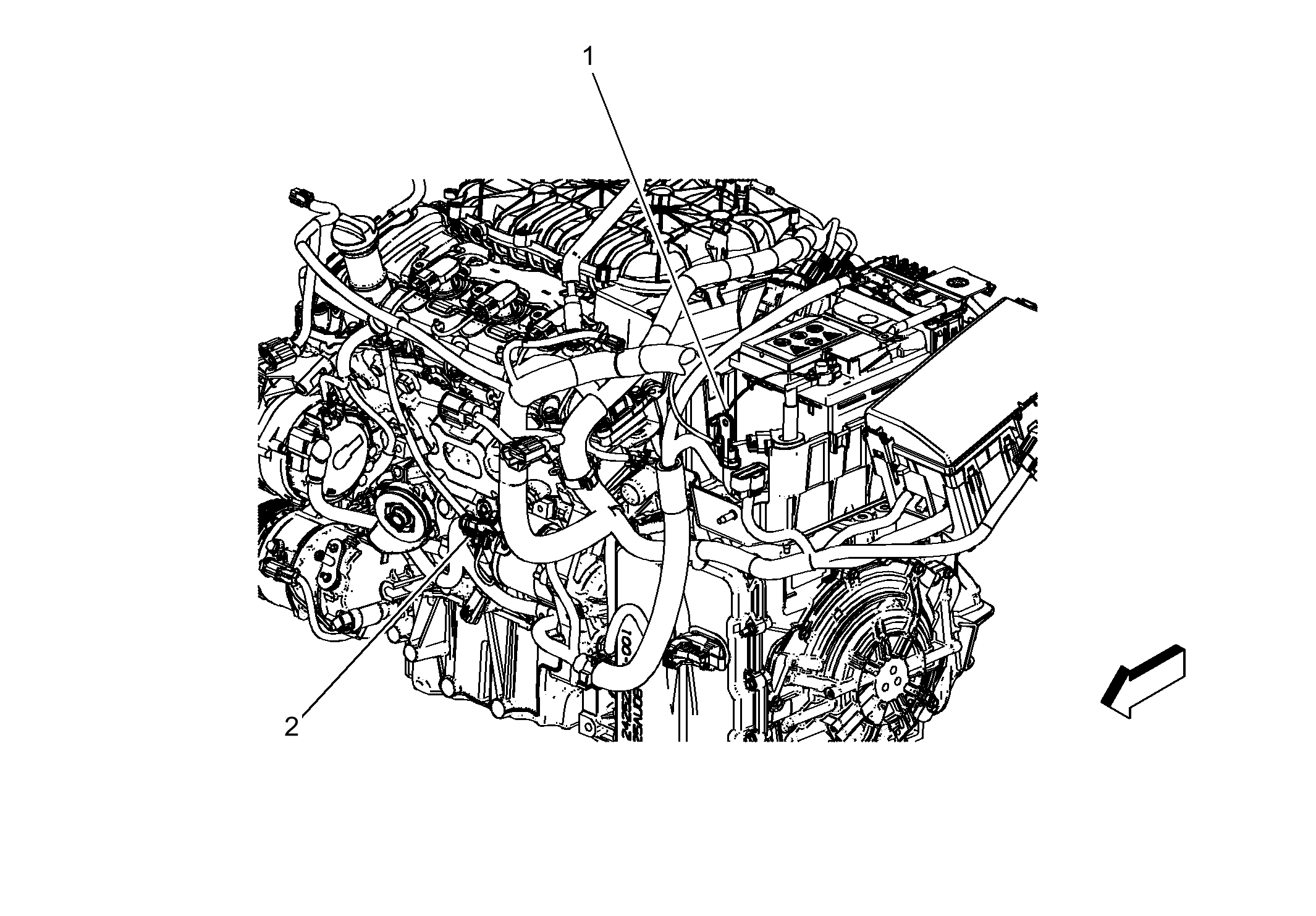

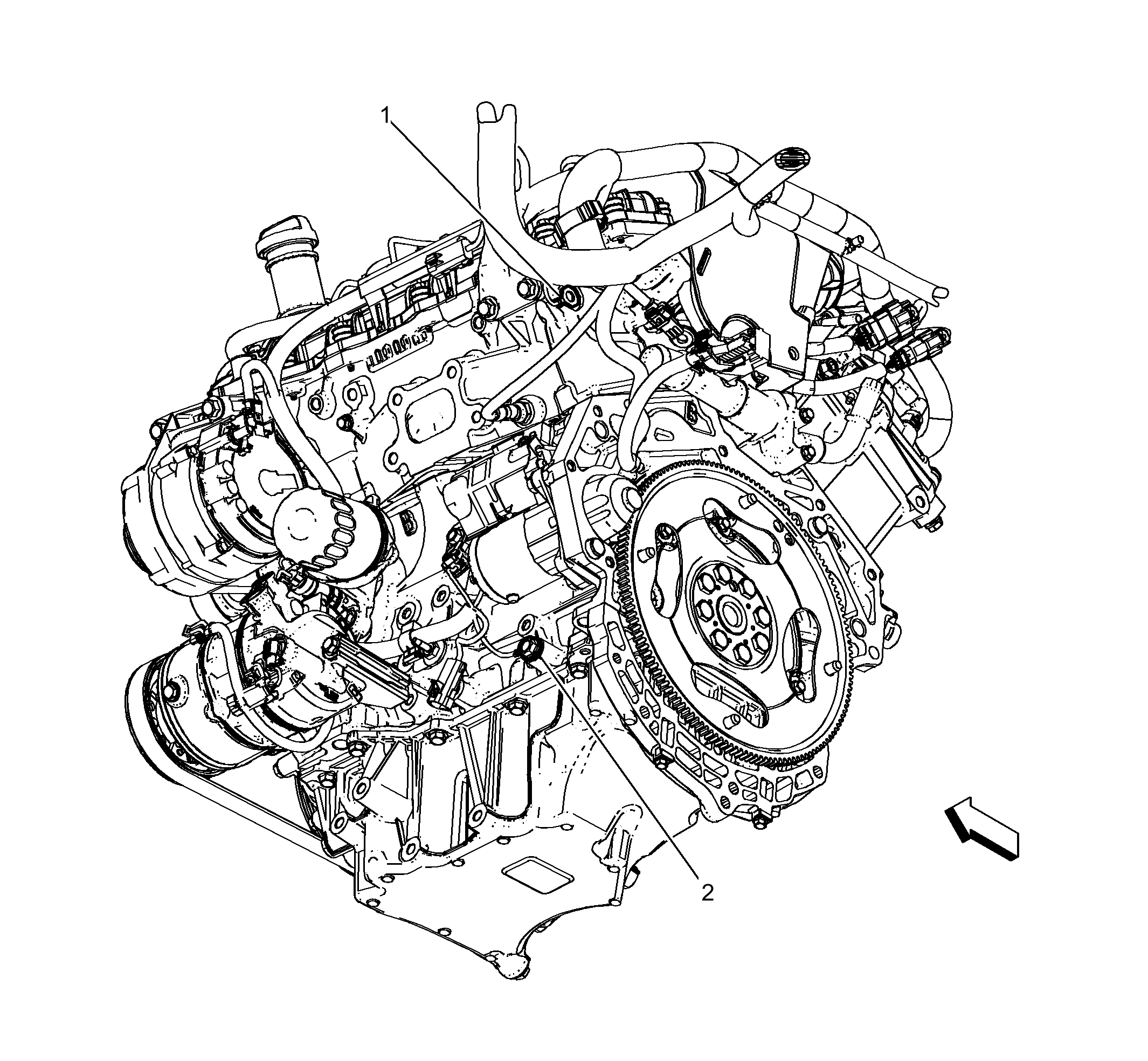

Fig 12: Identifying G400 & G402

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G400
2	G402

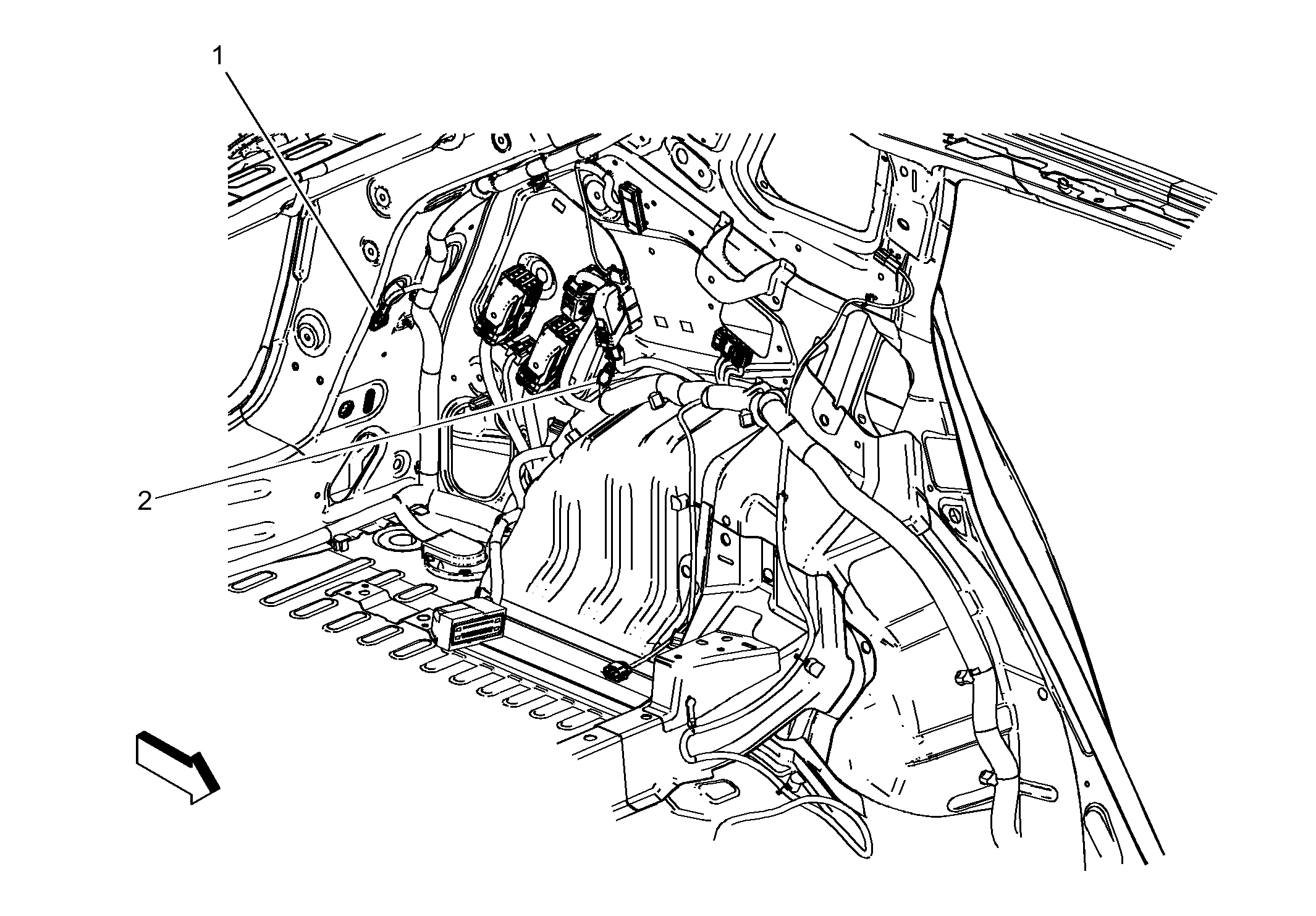

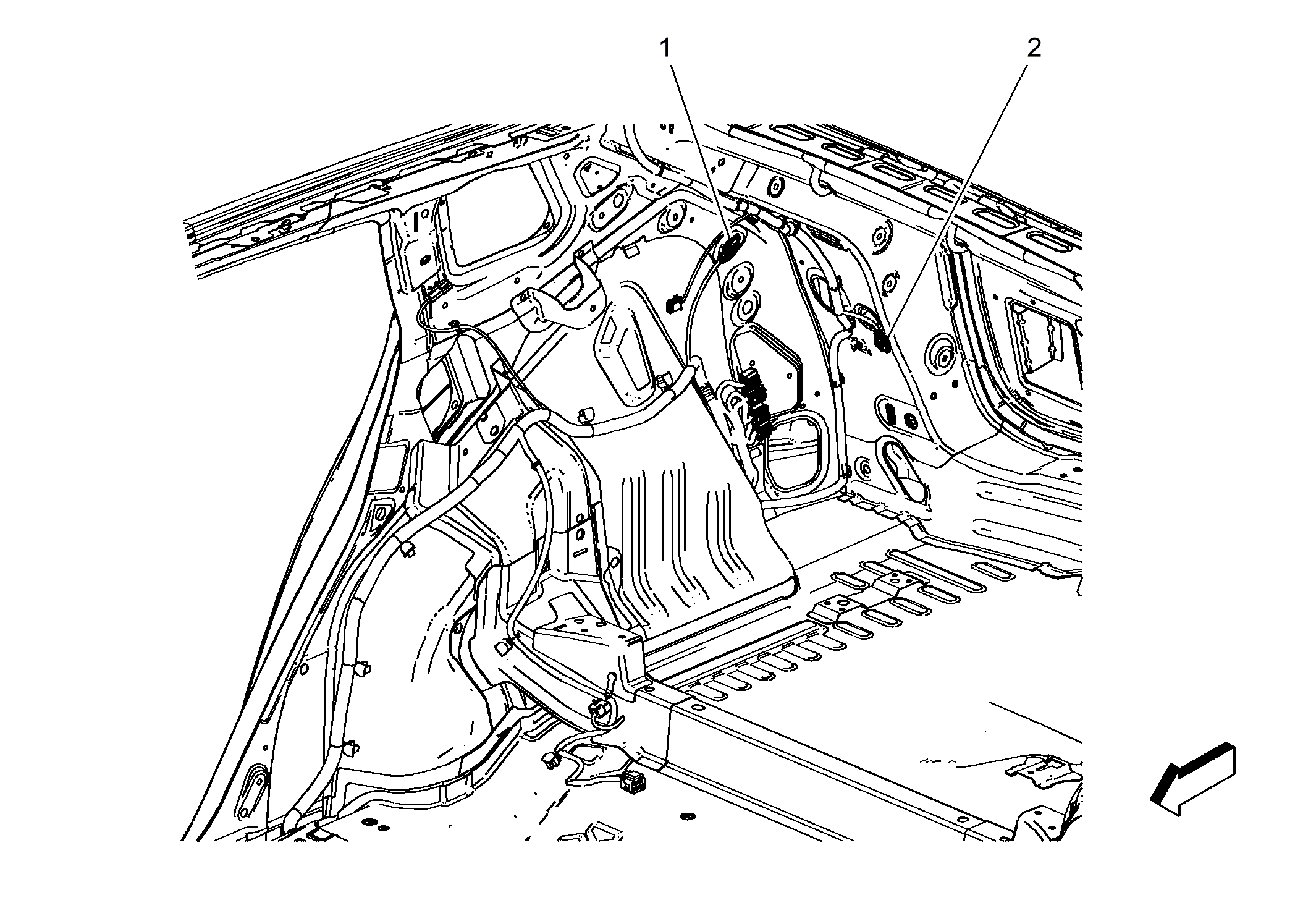

Fig 13: Identifying G401 & G403

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G403
2	G401
