Battery Positive Fuse Block Cable Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

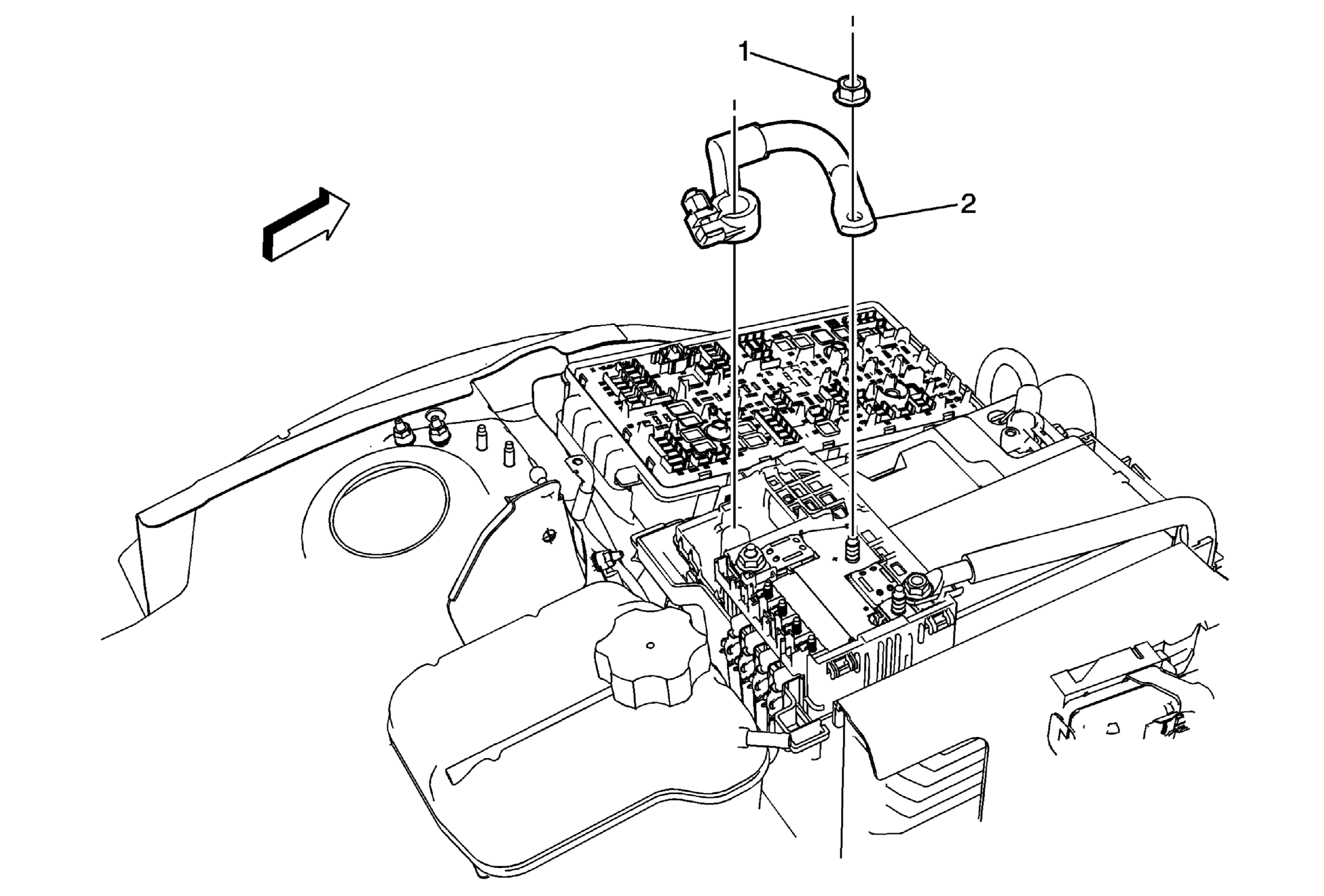

Fig 1: View Of Battery Positive Fuse Block Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Open the battery fuse block cover. Remove the battery positive fuse block cable.
1	Nut CAUTION: Refer to Fastener Caution . Tighten: 12 N.m (106 lb in)
2	Battery Positive Fuse Block Cable

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Open the battery fuse block cover.
Remove the battery positive fuse block cable.

Nut

CAUTION: Refer to Fastener Caution .

Tighten: 12 N.m (106 lb in)

Battery Positive Fuse Block Cable
