Instrument Panel Multifunction Switch Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

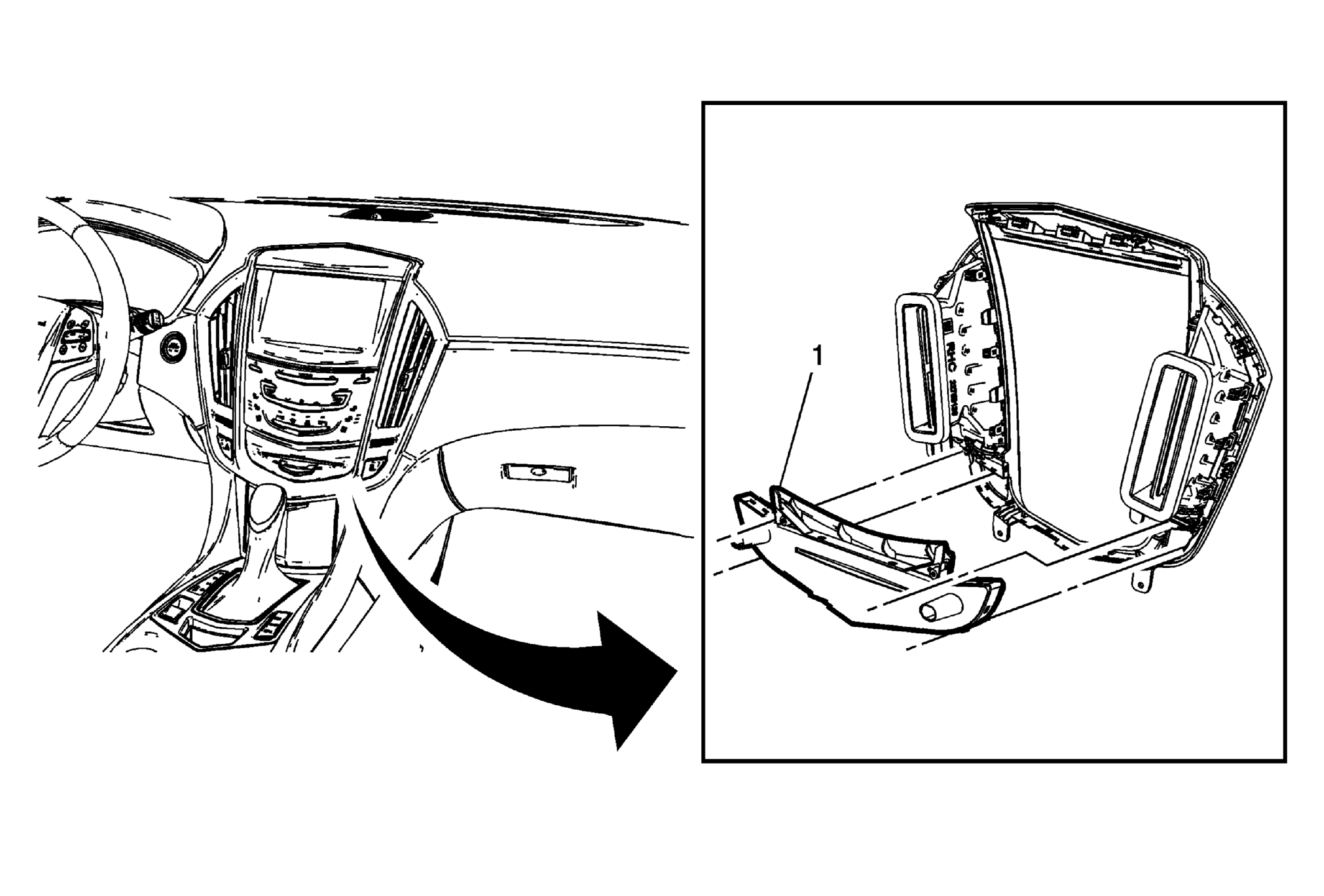

Fig 1: Instrument Panel Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
1	Instrument Panel and Multifunction Switch Procedure Disconnect the electrical connections. Release tabs on switch to remove from the trim panel.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .

Instrument Panel and Multifunction Switch

Procedure

Disconnect the electrical connections.
Release tabs on switch to remove from the trim panel.
