Liftgate Release Controls (without TB5)
WARNING:
This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

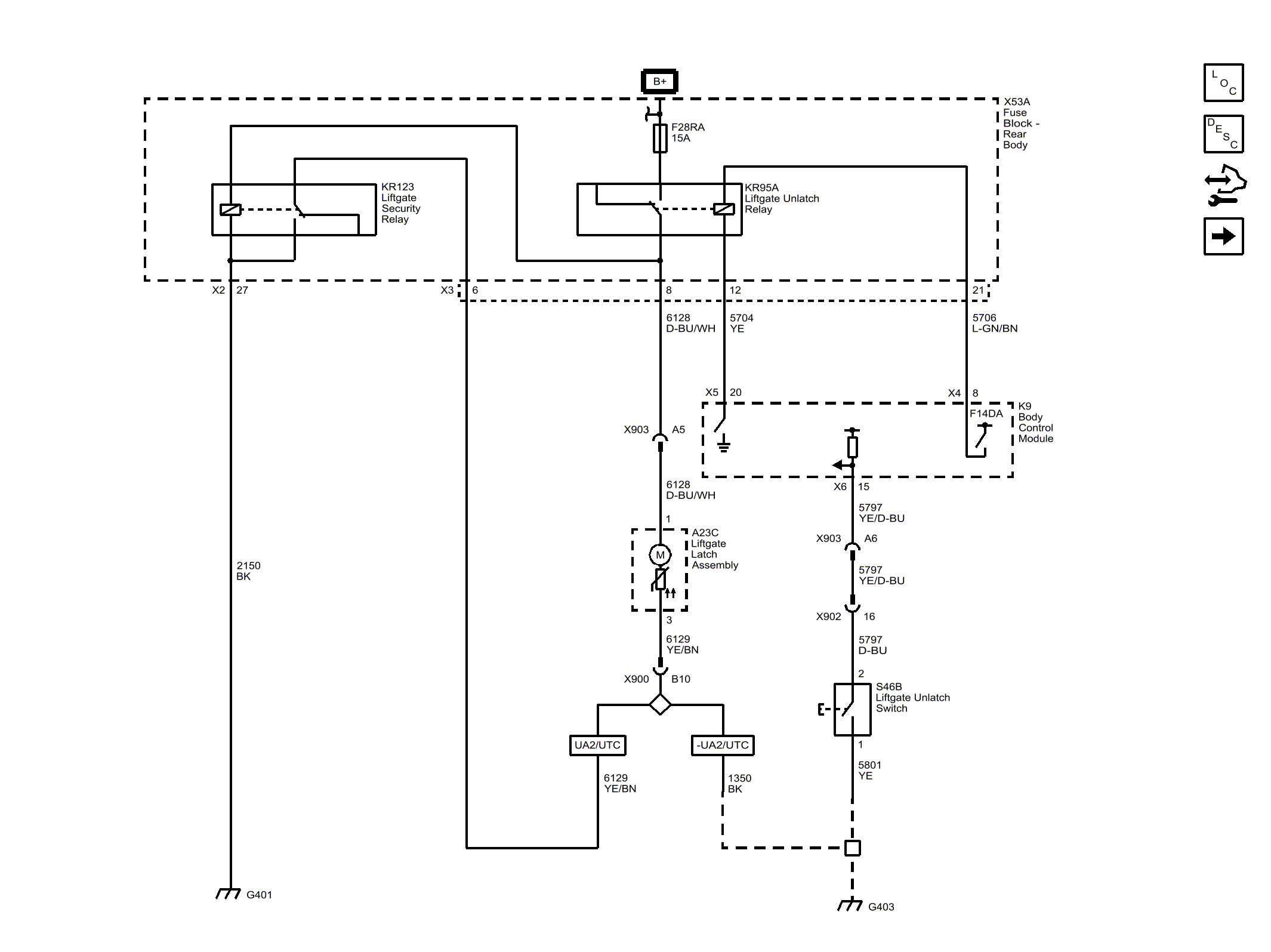

Fig 1: Liftgate Release Controls (without TB5)
Courtesy of GENERAL MOTORS COMPANY
