Power, Ground, Serial Data, and Front Controls (TB5)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

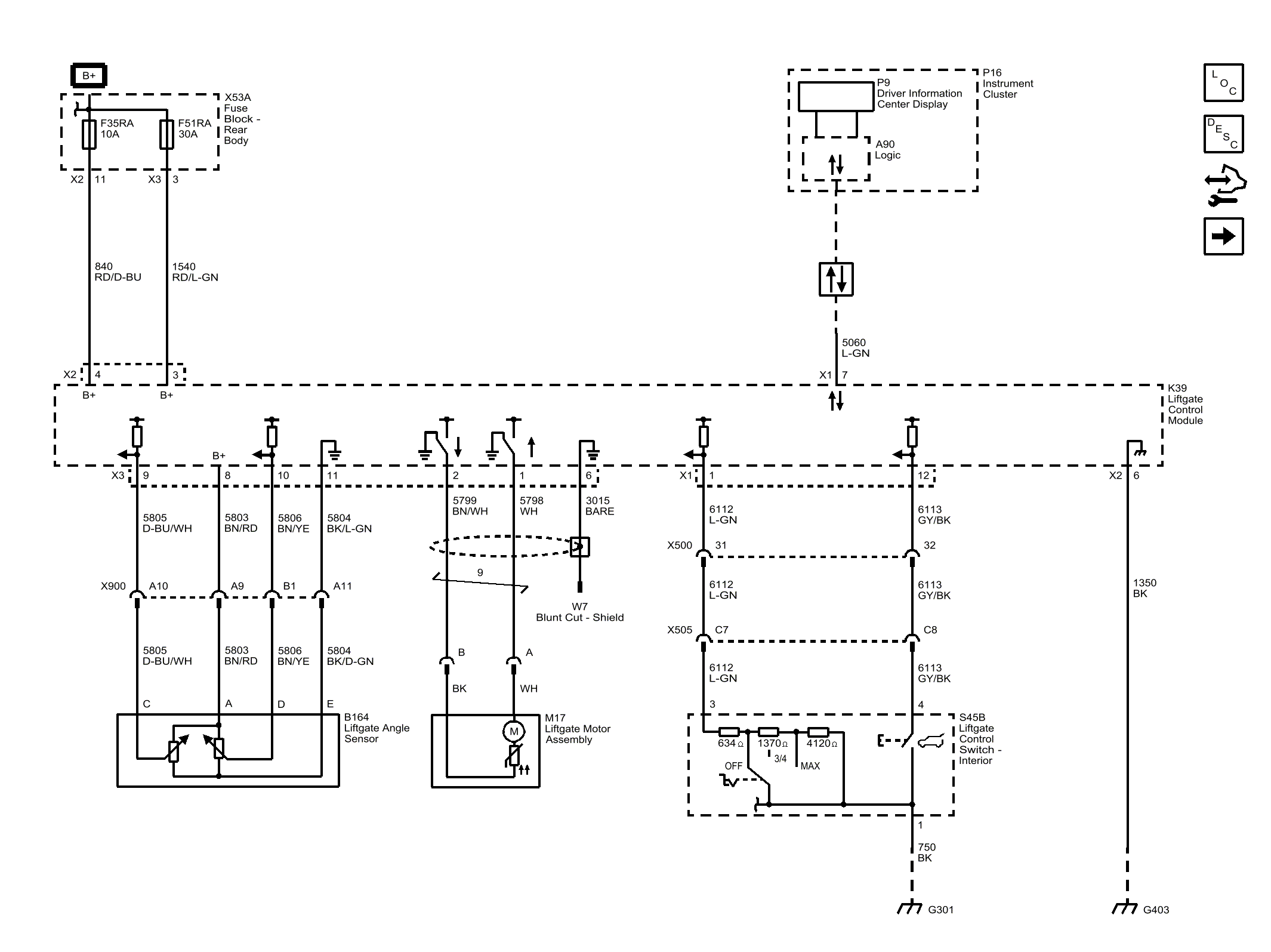

Fig 1: Power, Ground, Serial Data, and Front Controls (TB5)
GM3754620Courtesy of GENERAL MOTORS COMPANY
