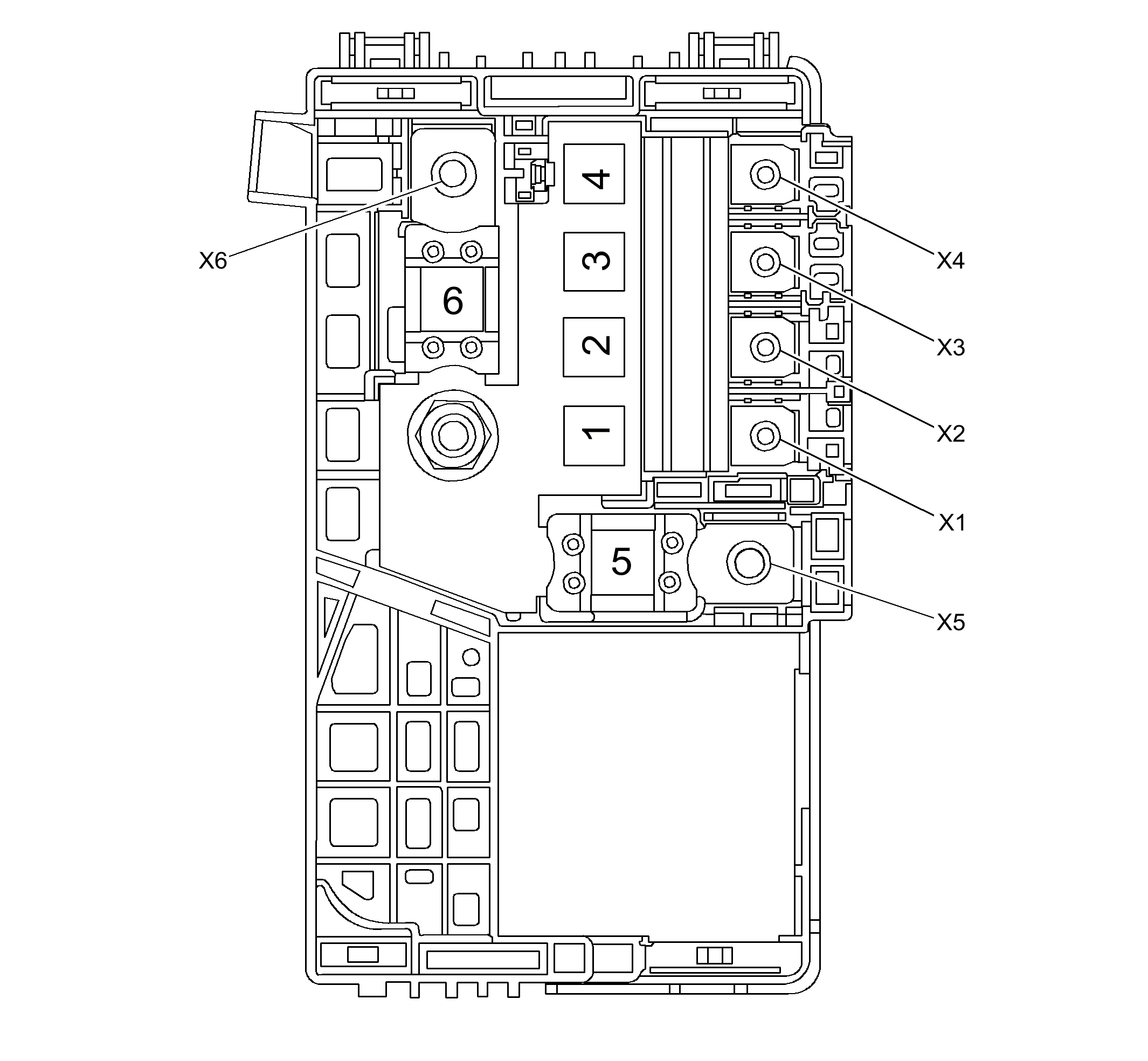

X50D Fuse Block - Battery Top View
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
X50D FUSE BLOCK - BATTERY FUSE IDENTIFICATION
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| 1 | - | F1UB Fuse | 60A | X51A Fuse Block - Instrument Panel |
| 2 | - | F2UB Fuse | 60A | X51A Fuse Block - Instrument Panel |
| 3 | - | F3UB Fuse | 100A | Not Used |
| 4 | - | F4UB Fuse | 80A | Not Used |
| 5 | - | F5UB Fuse | 250A | X50A Fuse Block - Underhood |
| 6 | - | F6UB Fuse | 300A | G13 Generator, M64 Starter Motor |
