Object Detection System And Pedestrian Protection System
>>
Schematic and Routing Diagrams
>>
Object Detection Schematics
>>
Front Sensors
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Sensors

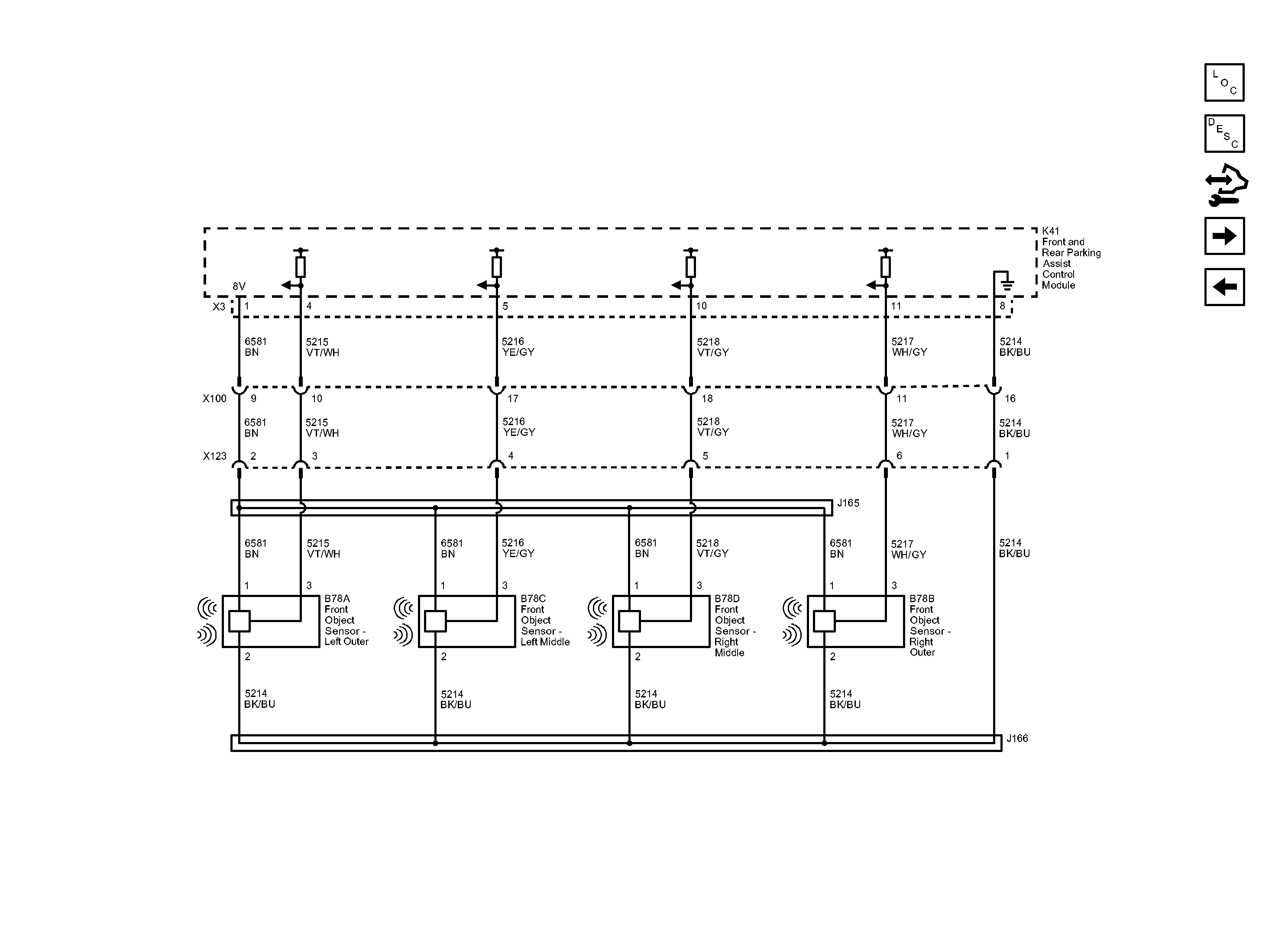

Fig 1: Front Sensors Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
