Installation Procedure

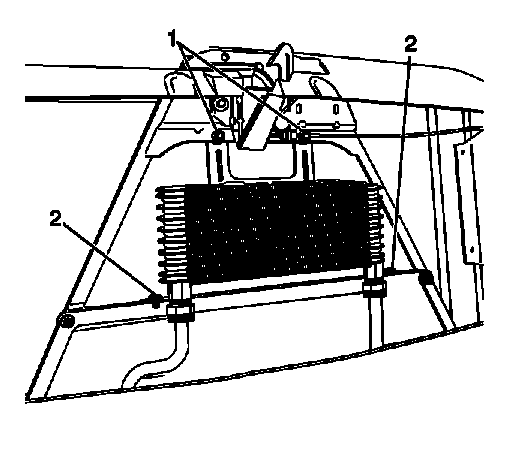

    Fig 1: Auxiliary Oil Cooler Bolts And Push Pins
    GM711677Courtesy of GENERAL MOTORS COMPANY
  1. Install the auxiliary oil cooler to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the bolts (1) and the push pins (2) that retain the auxiliary oil cooler to the radiator brace.

    Tighten

    Tighten the bolts to 12 N.m (9 lb ft).

  3. Connect the transmission oil cooler lines to the auxiliary cooler. Refer to appropriate transmission repair information.
  4. Install the front grille assembly. Refer to EXTERIOR TRIM .
