Main Relay (Computer/Fuel System): Locations




Electrical Center Identification Views

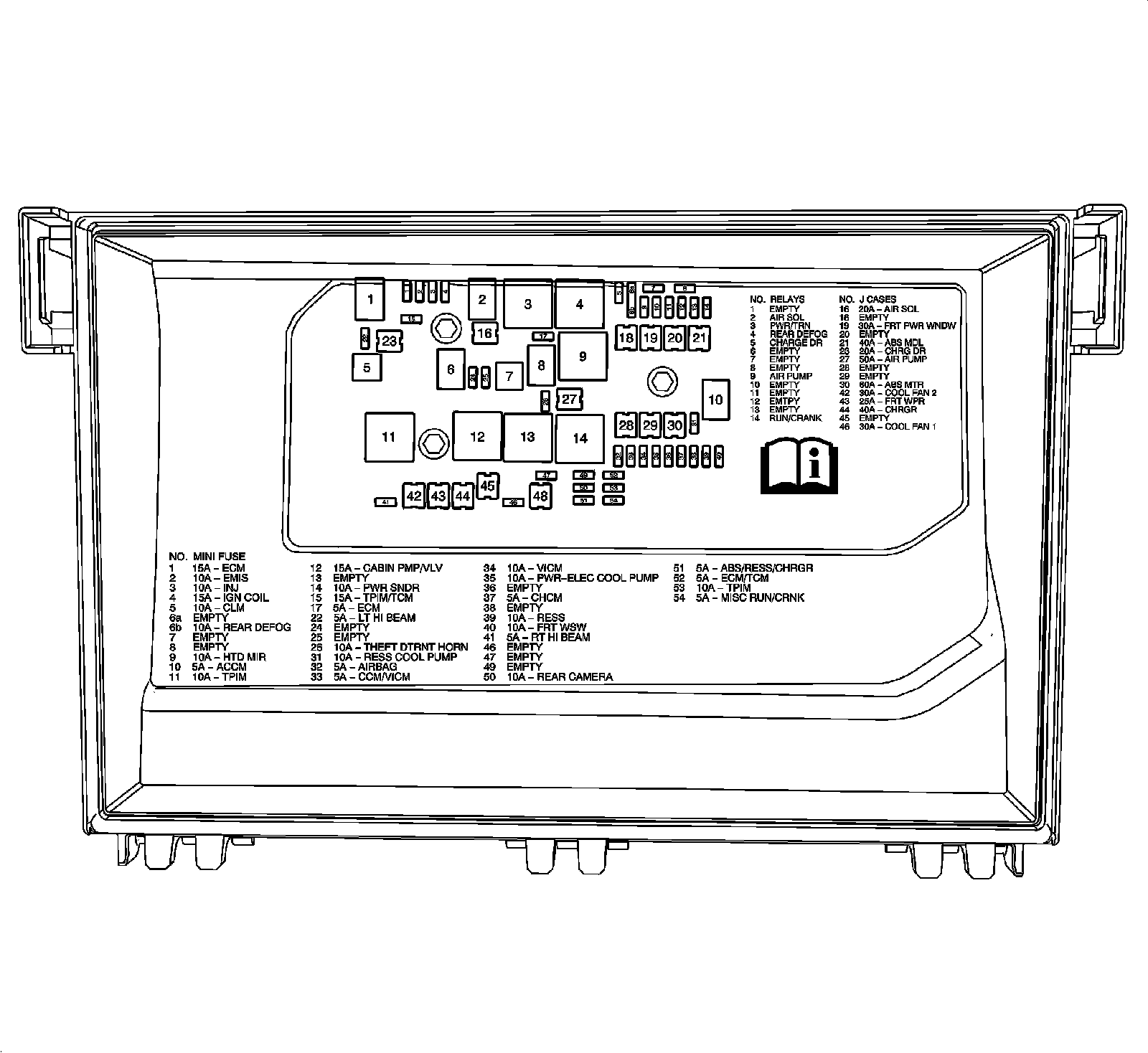

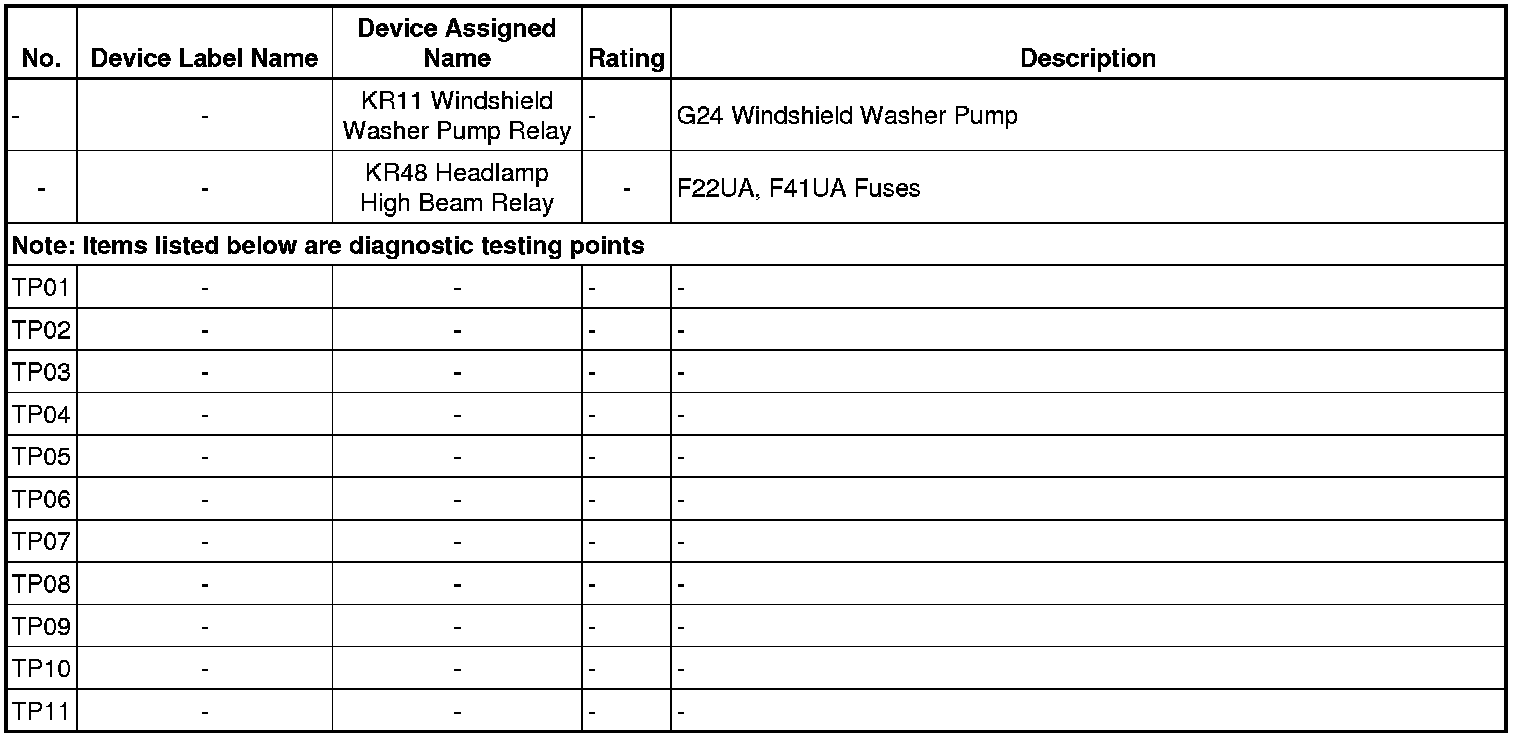

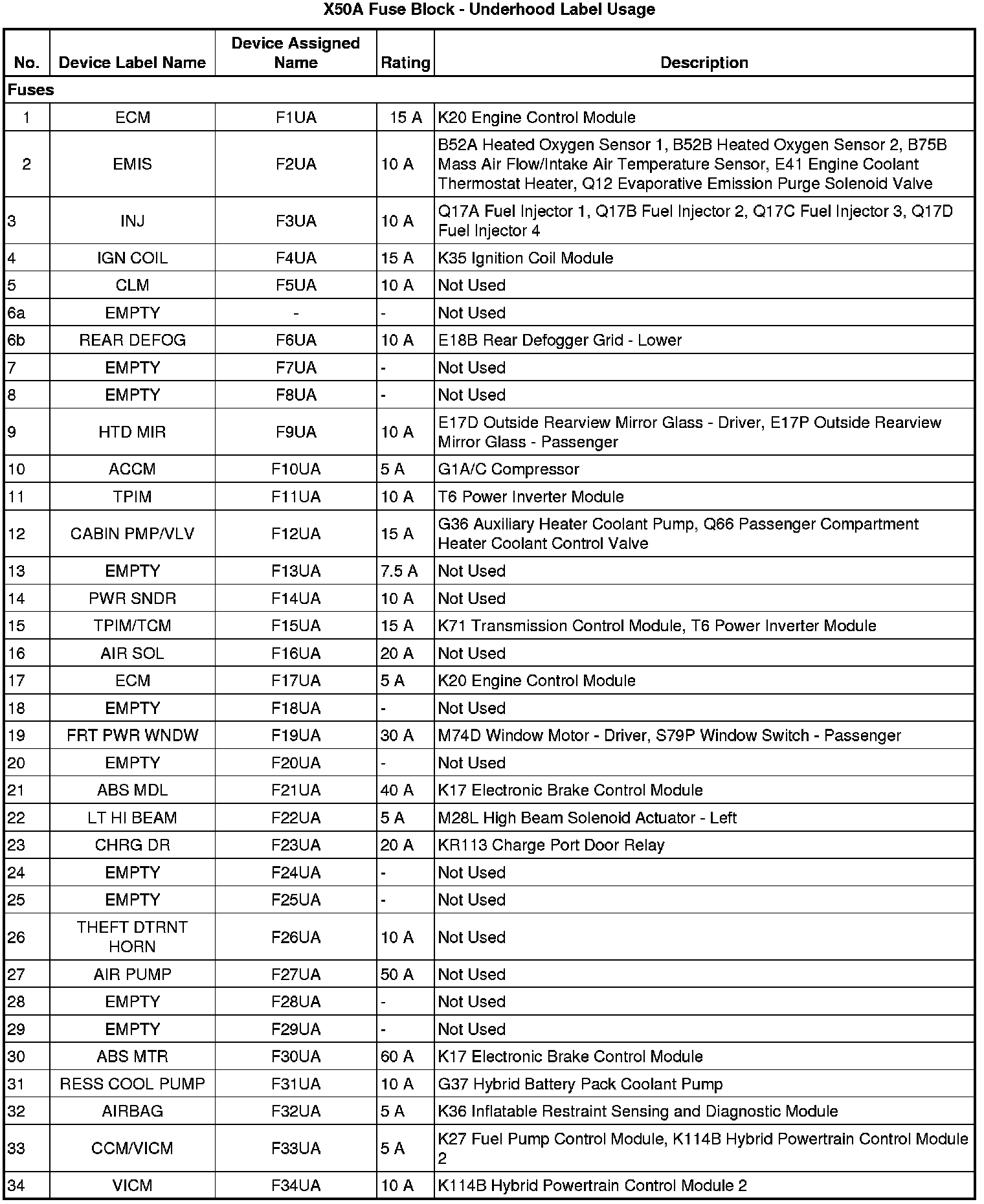

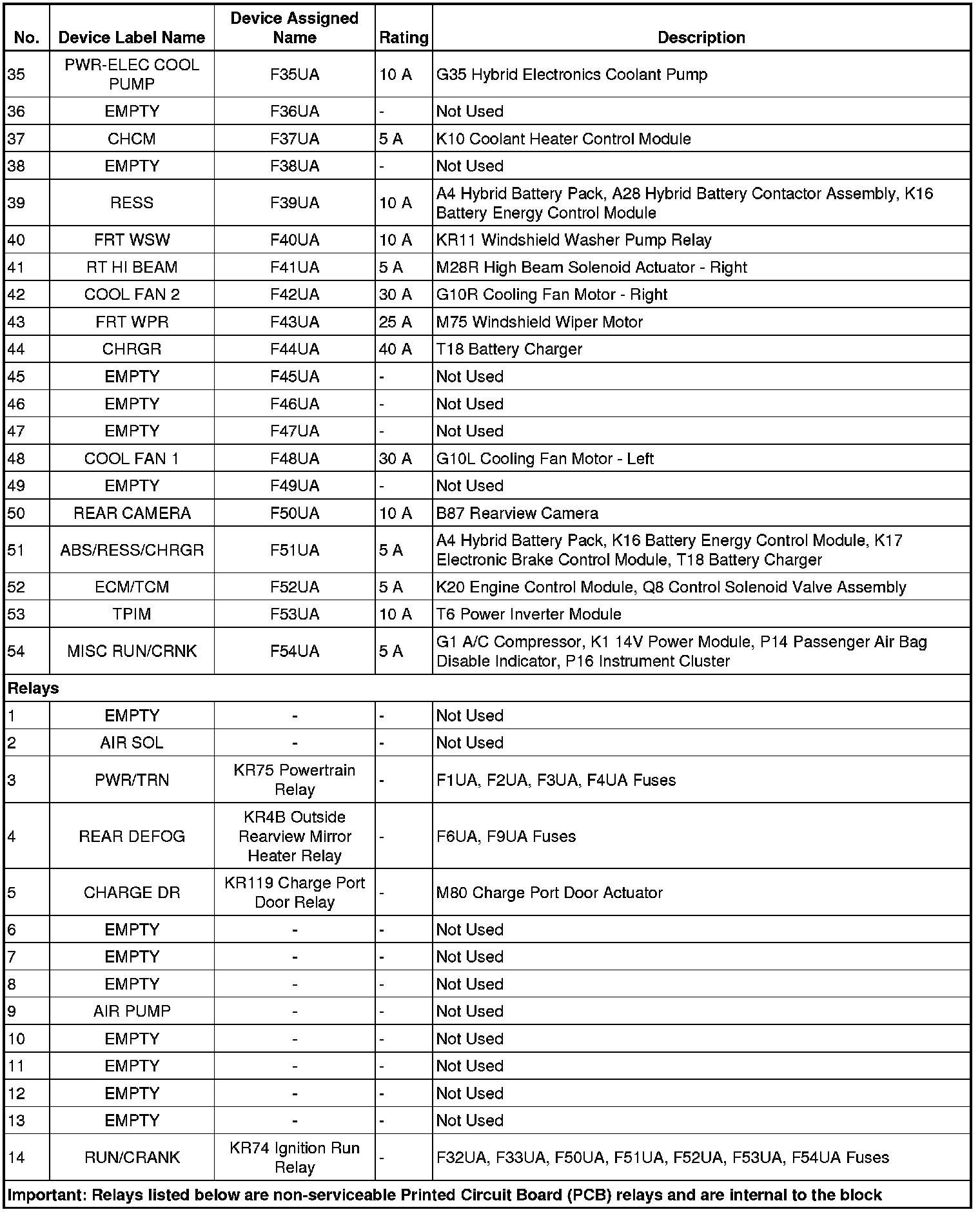

X50A Fuse Block - Underhood Label
