Digital Radio (UBT)Info Display Wiring Schematics

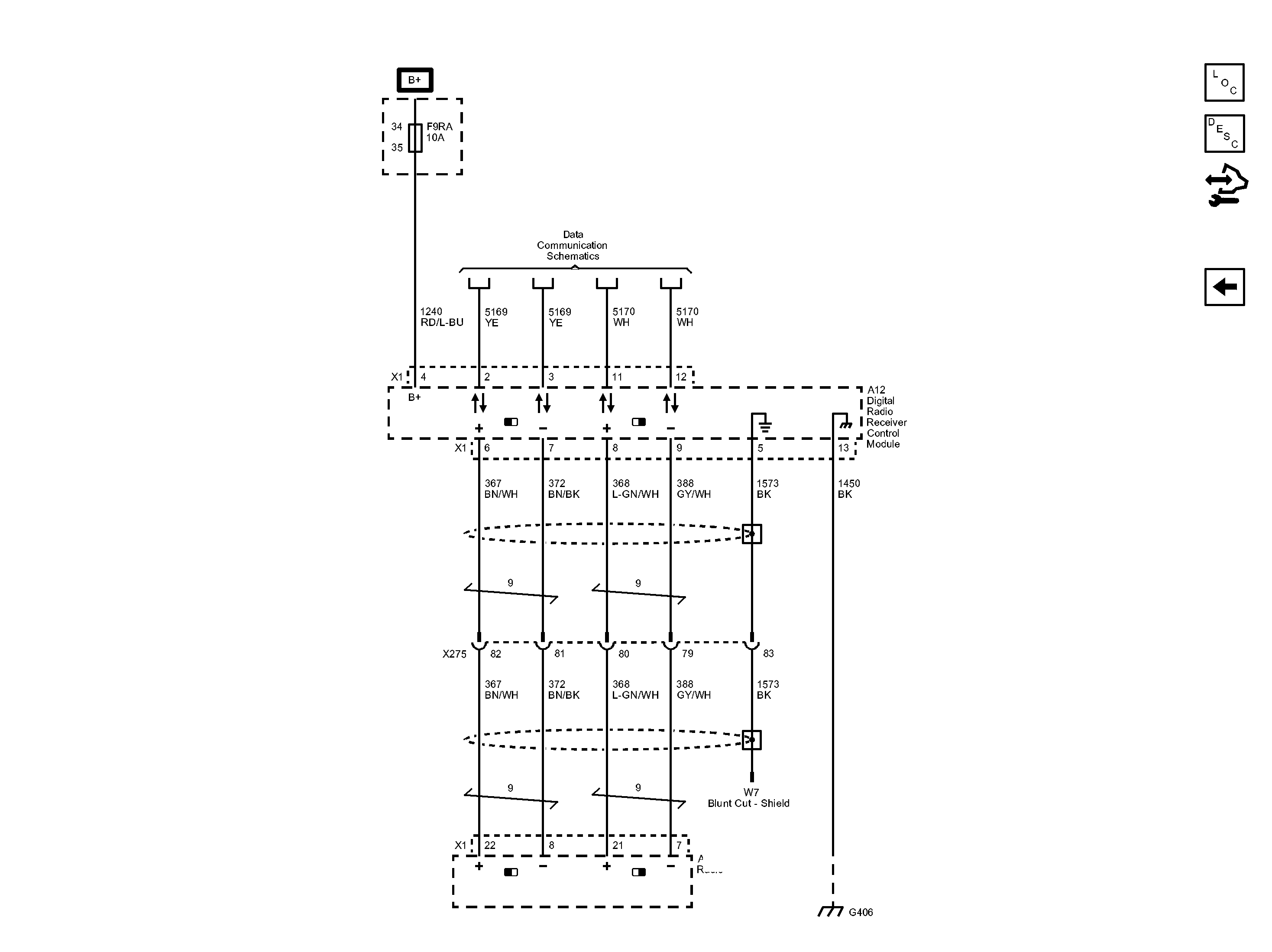

Fig 1: Digital Radio (UBT)Info Display Wiring Schematics
GM2853490Courtesy of GENERAL MOTORS COMPANY
