Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

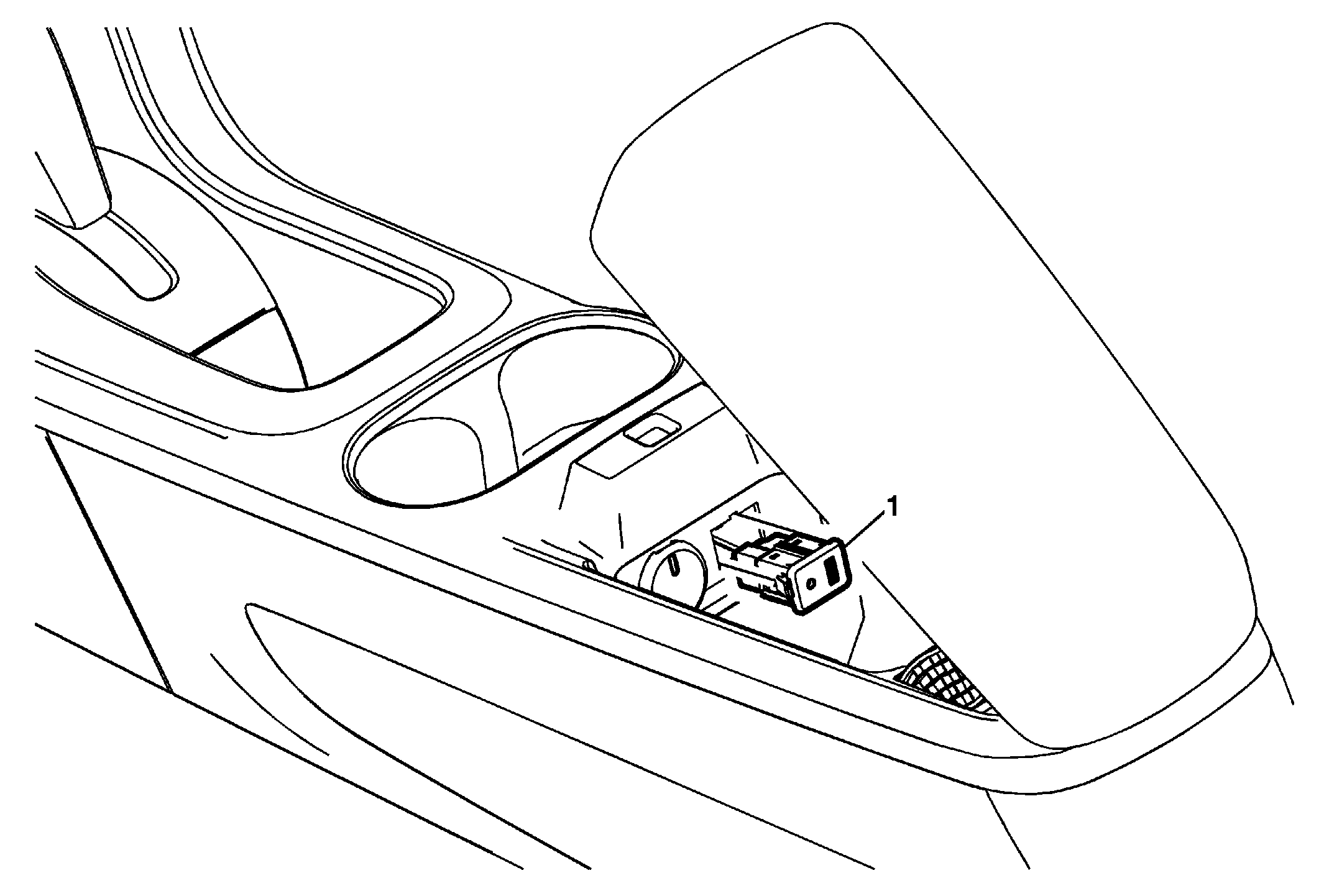

Fig 1: Audio Disc Player, USB, Auxiliary In And Memory Card Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement
1	Audio Disc Player and USB and Auxiliary In and Memory Card Receptacle Procedure Depress the tabs to remove the receptacle. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement

Audio Disc Player and USB and Auxiliary In and Memory Card Receptacle

Procedure

Depress the tabs to remove the receptacle.
Disconnect the electrical connector.
