Behind the Instrument Panel Components

Items
1: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag
2: K77 Remote Control Door Lock Receiver K77 Remote Control Door Lock Receiver
3: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (MV5, M10, MM6 or MG9)B22 Brake Pedal Position Sensor (MYB, MYC or MYD)
4: X84 Data Link Connector X84 Data Link Connector
5: X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1
6: B25B Clutch Pedal Position Sensor (MV5, M10, MM6 or MG9) B25B Clutch Pedal Position Sensor (MV5, M10, MM6 or MG9)
7: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Position Sensor
8: T15 Navigation Antenna Signal Splitter (UHQ with UE1) T15 Navigation Antenna Signal Splitter X1 (UHQ)T15 Navigation Antenna Signal Splitter X2 (UHQ)T15 Navigation Antenna Signal Splitter X3 (UHQ)
9: A11 Radio A11 Radio X1 A11 Radio X4 A11 Radio X5 A11 Radio X7
10: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor
11: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X2 (UE1)
12: T4S Wireless Communication Antenna - Bluetooth (UPF)
13: C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery (UE1)

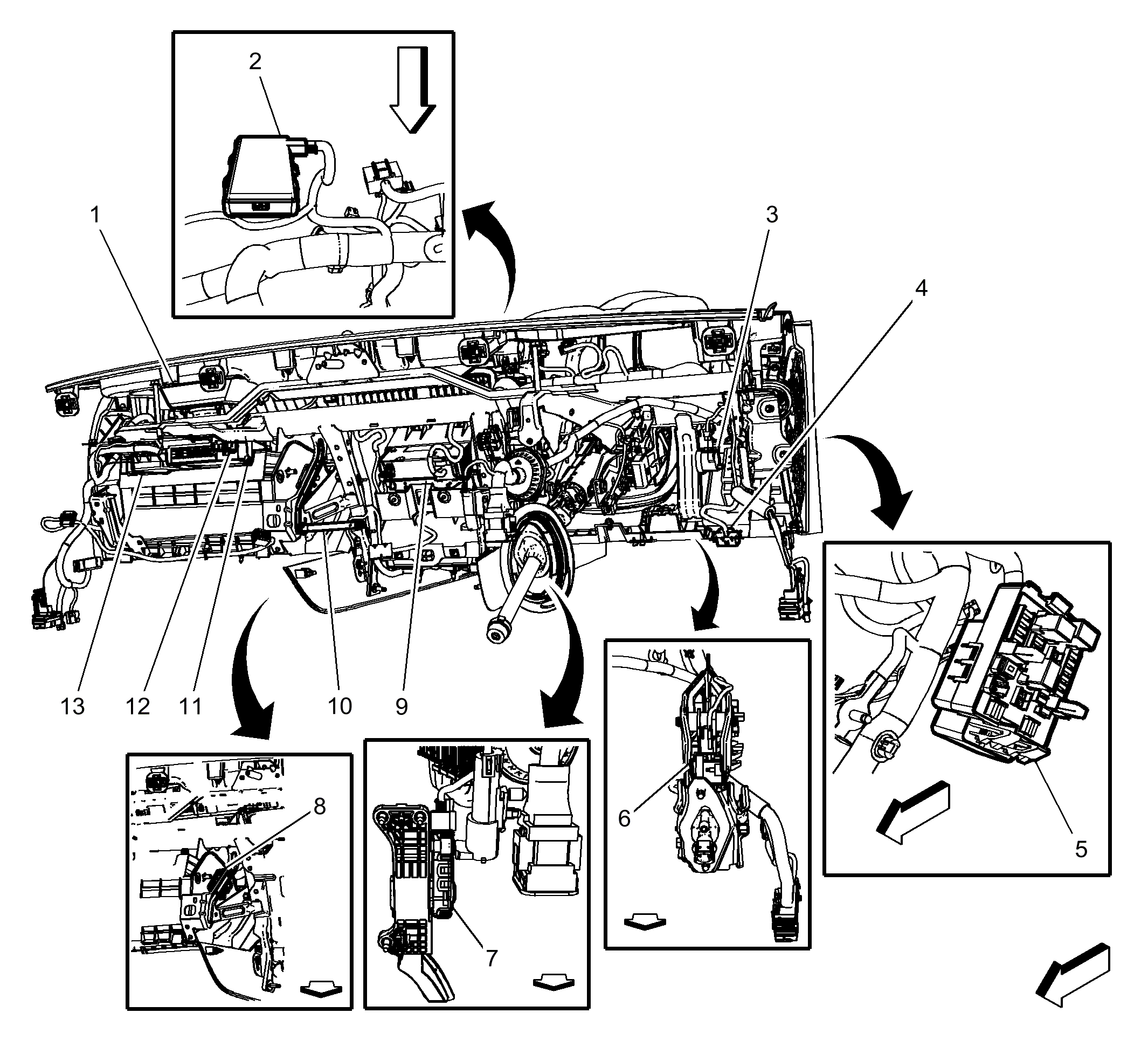

Fig 1: Behind the Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
