Steering Wheel Components

Steering Wheel Components

Items
1: S70L Steering Wheel Controls Switch - Left (NZL) S70L Steering Wheel Controls Switch - Left (NZL)
2: S70R Steering Wheel Controls Switch - Right (NZL) S70R Steering Wheel Controls Switch - Right (NZL)
3: S33 Horn Switch S33 Horn Switch X1S33 Horn Switch X2

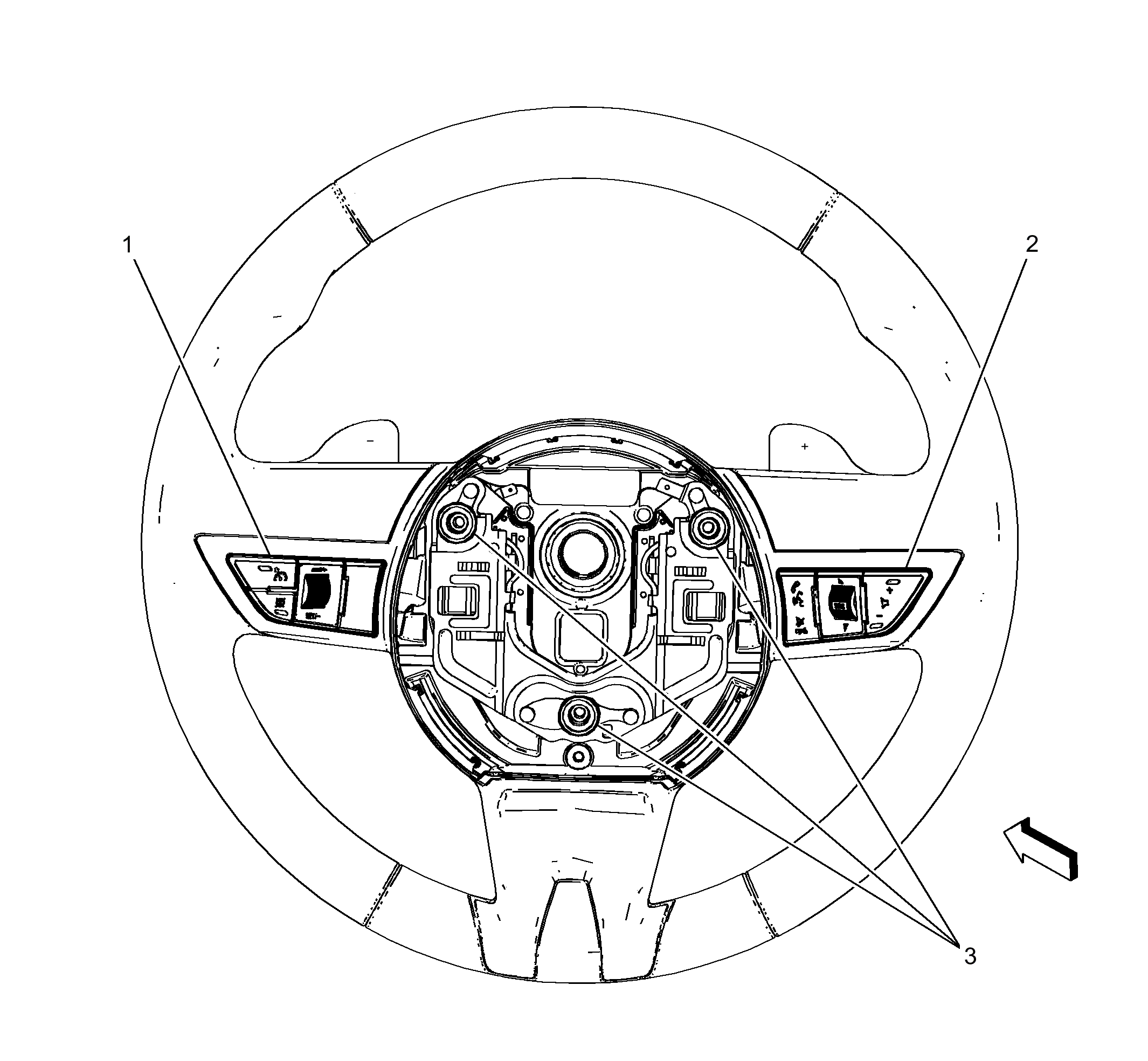

Fig 1: Steering Wheel Components
GM3345073Courtesy of GENERAL MOTORS COMPANY
