Communication Interface Module Bracket Replacement

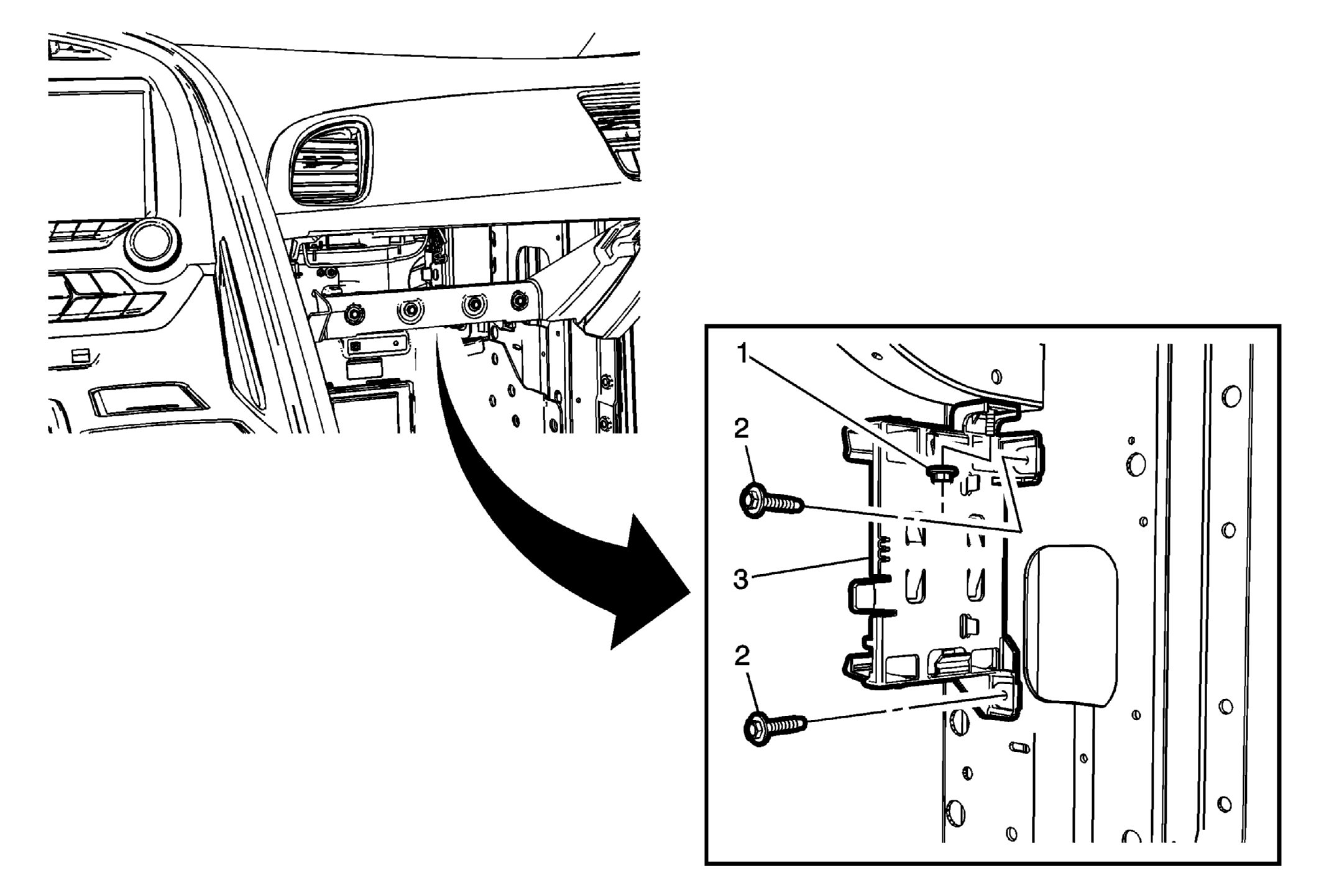

Fig 1: Communication Interface Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower airbag bracket. Refer to Instrument Panel Lower Airbag Bracket Replacement .
1	Communication Interface Module Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Communication Interface Module Bracket Bolts (Qty: 2) Tighten 4 N.m (35 lb in)
3	Communication Interface Module Bracket Procedure Disconnect the electrical connections. Transfer components as necessary.
