Communication Interface Module Battery Replacement

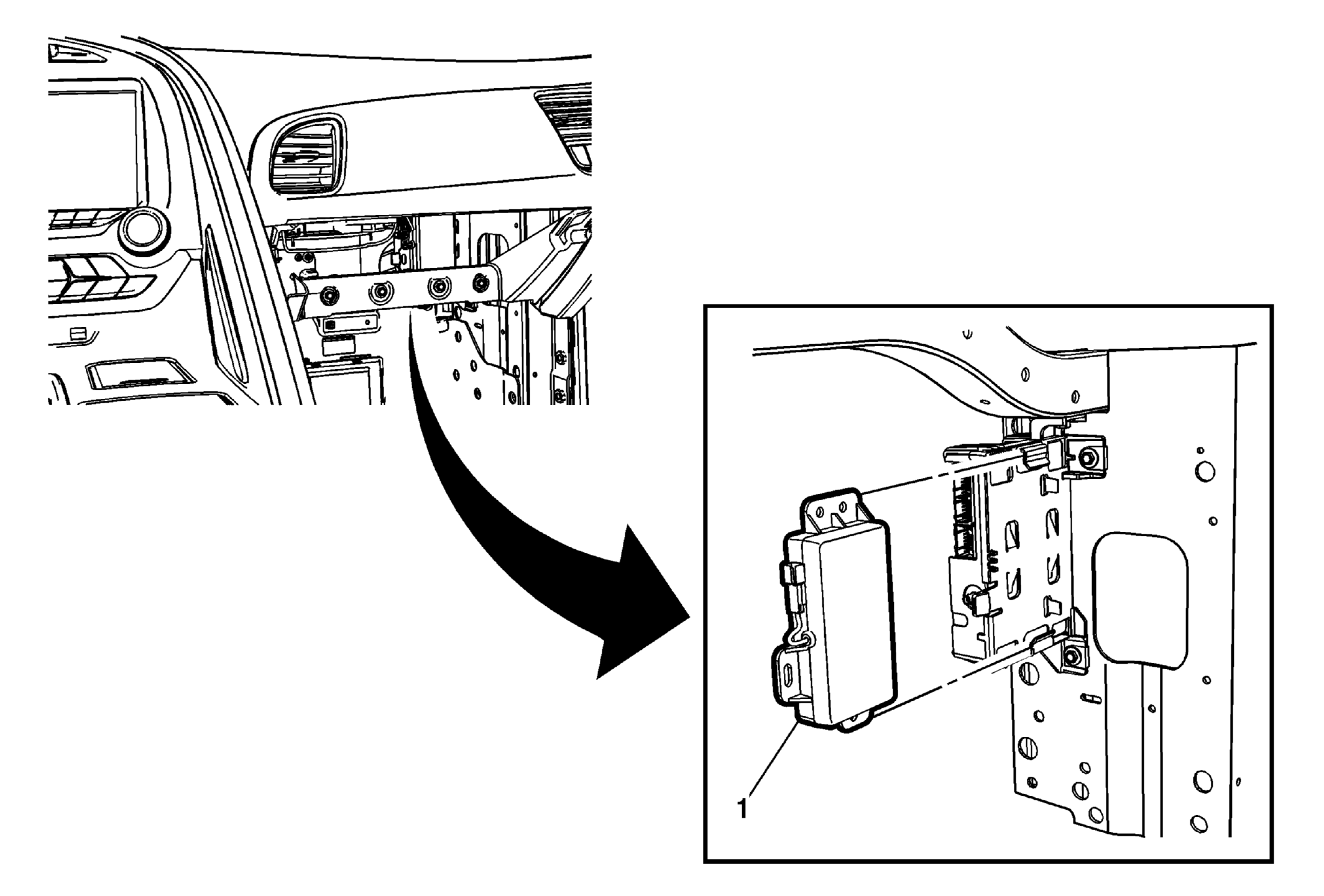

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower airbag bracket. Refer to Instrument Panel Lower Airbag Bracket Replacement .
1	Communication Interface Module Battery Procedure Disconnect the electrical connector. Slide the battery from the communication interface module bracket tabs to remove.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower airbag bracket. Refer to Instrument Panel Lower Airbag Bracket Replacement .

Communication Interface Module Battery

Procedure

Disconnect the electrical connector.
Slide the battery from the communication interface module bracket tabs to remove.
