Left Front of Vehicle Components

Left Front of Vehicle Components

Items
1:  P13 Horn Assembly
2:  K19 Suspension Control Module
3:  B118 Windshield Washer Fluid Level Sensor
4:  G24 Windshield Washer Pump
5:  G16 Headlamp Washer Pump

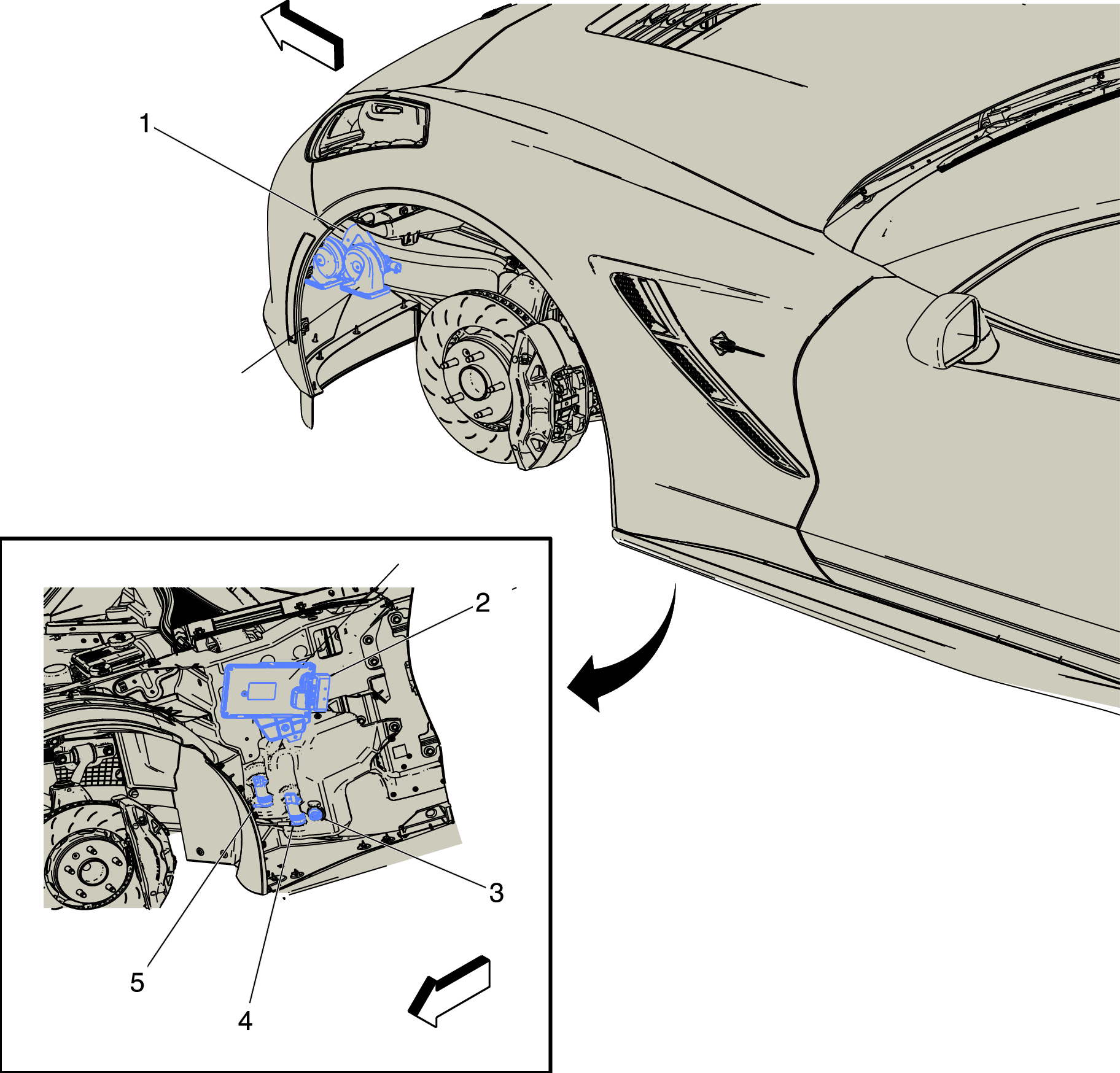

Fig 1: Left Front of Vehicle Components
GM3617104Courtesy of GENERAL MOTORS COMPANY
