Right Front of the Vehicle Components

Right Front of the Vehicle Components

Items
1:  K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3
2:  B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor

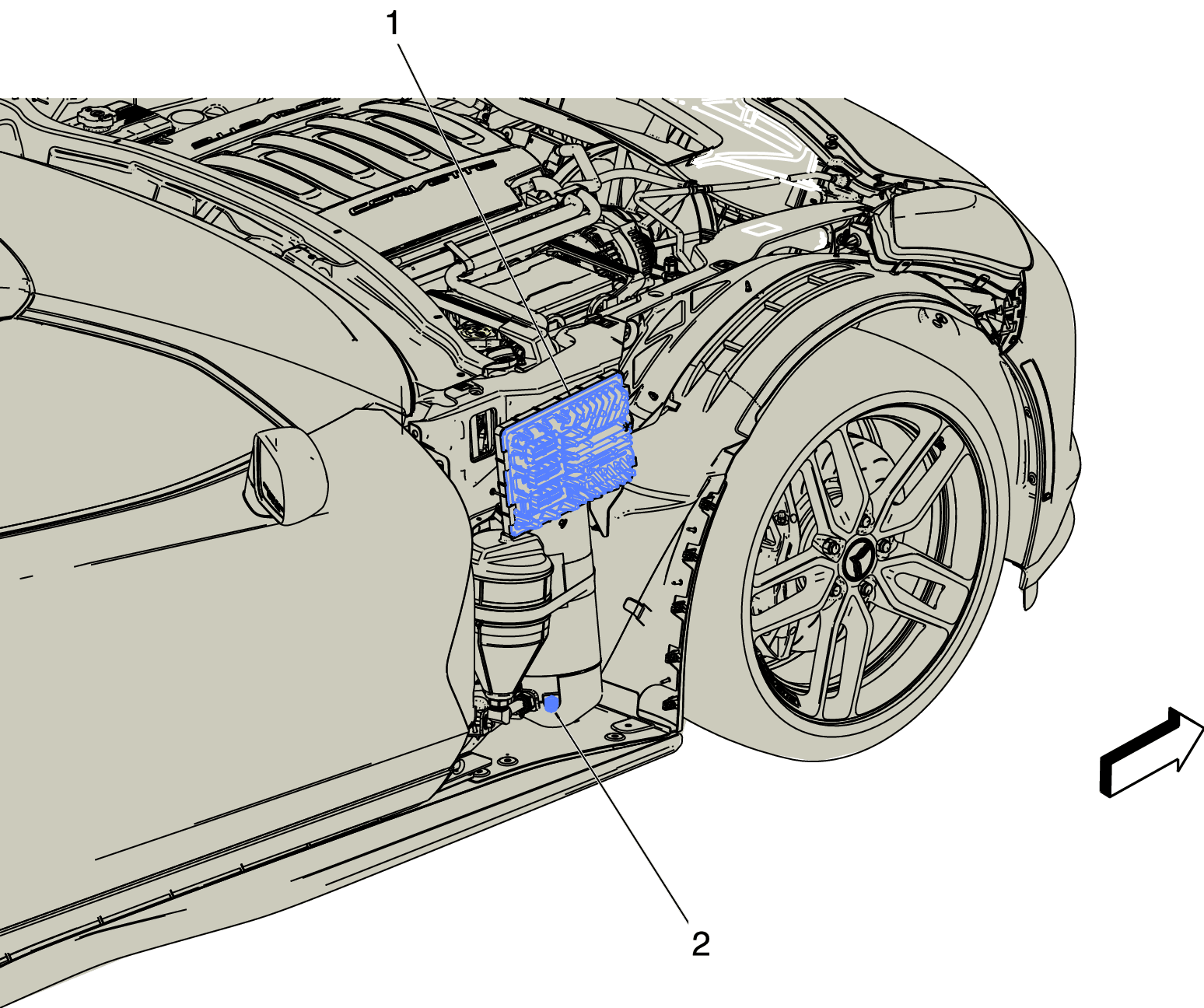

Fig 1: Right Front of the Vehicle Components
GM3511280Courtesy of GENERAL MOTORS COMPANY
