Steering Column Control Module Replacement

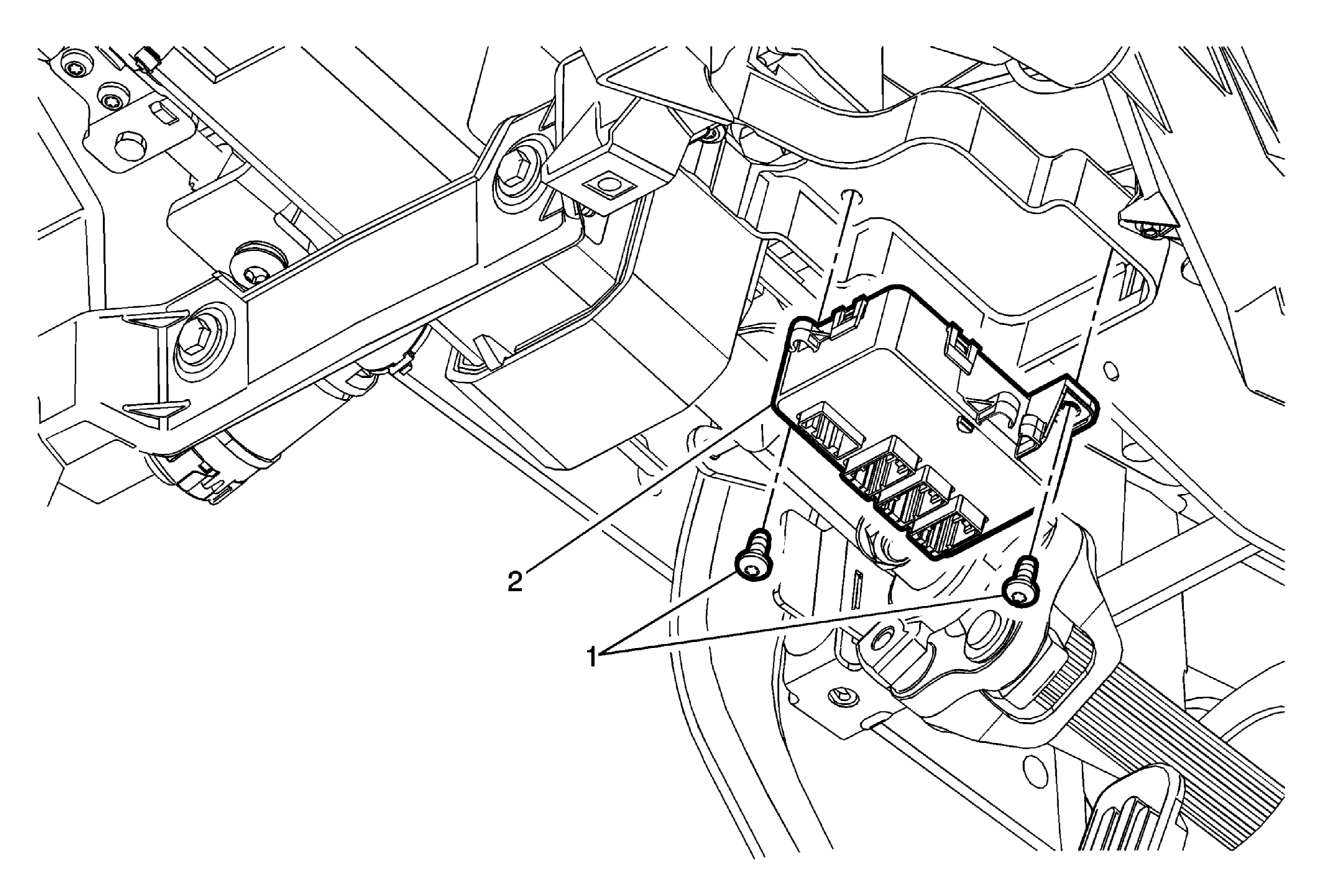

Fig 1: Steering Column Control Module
GM3407141Courtesy of GENERAL MOTORS COMPANY
Steering Column Control Module Replacement

Callout Component Name
Preliminary Procedures
Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
1 Steering Column Control Module Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
7 N.m (62 lb in)
2 Steering Column Control Module
