Front View Driver Information Camera Bracket Replacement

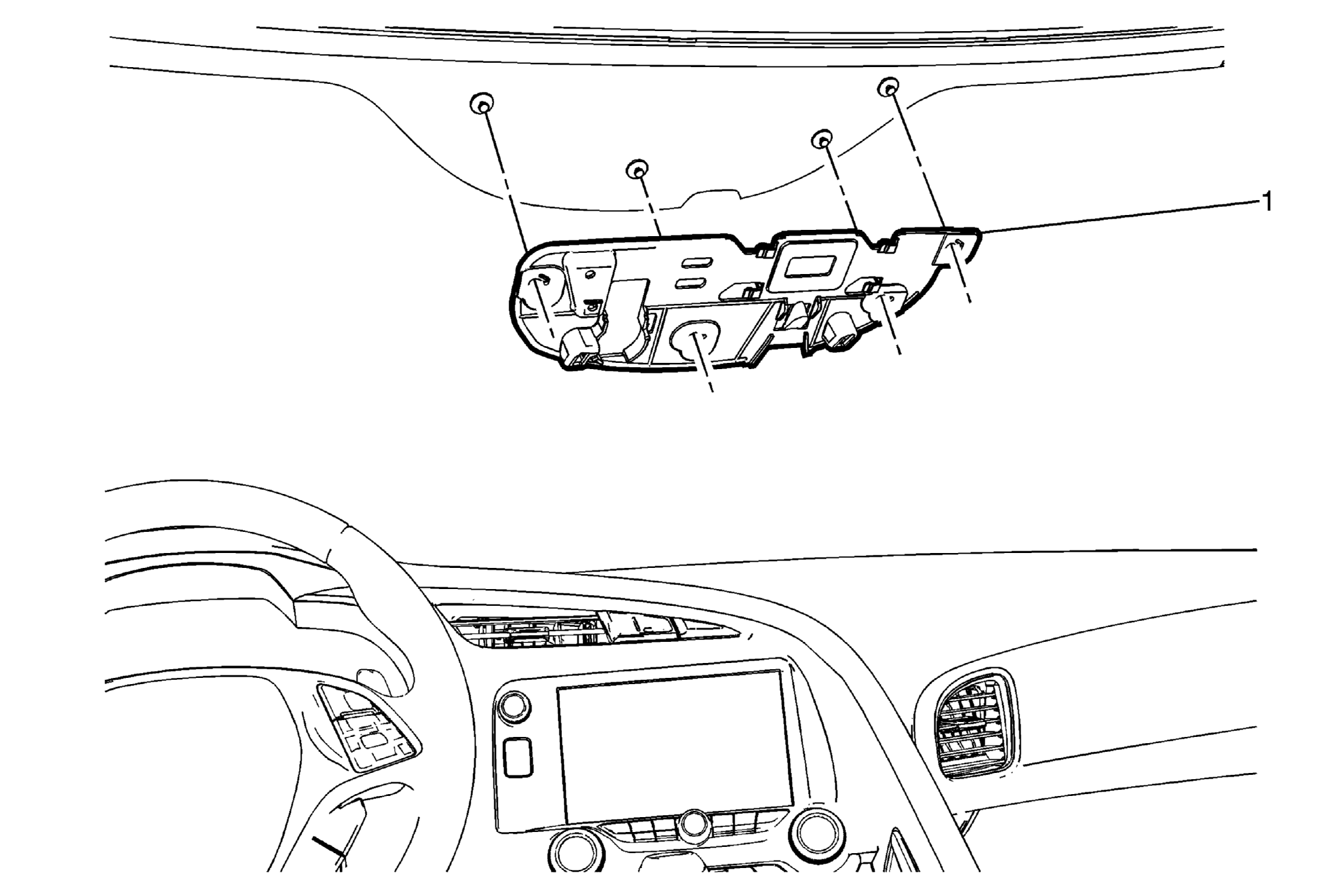

Fig 1: Front View Driver Information Camera Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the vehicle performance camera. Refer to Vehicle Performance Camera Replacement . Remove the mobile telephone and vehicle location antenna. Refer to Mobile Telephone and Vehicle Location Antenna Replacement . Remove the inside air moisture and windshield temperature sensor. Refer to Inside Air Moisture and Windshield Temperature Sensor Replacement .
1	Front View Driver Information Camera Bracket Procedure Slide the bracket towards the drivers side to disengage tabs, gently pull from windshield.

Callout

Component Name

Preliminary Procedures

Remove the vehicle performance camera. Refer to Vehicle Performance Camera Replacement .
Remove the mobile telephone and vehicle location antenna. Refer to Mobile Telephone and Vehicle Location Antenna Replacement .
Remove the inside air moisture and windshield temperature sensor. Refer to Inside Air Moisture and Windshield Temperature Sensor Replacement .

Front View Driver Information Camera Bracket
Procedure
Slide the bracket towards the drivers side to disengage tabs, gently pull from windshield.
