Communication Interface Module Replacement

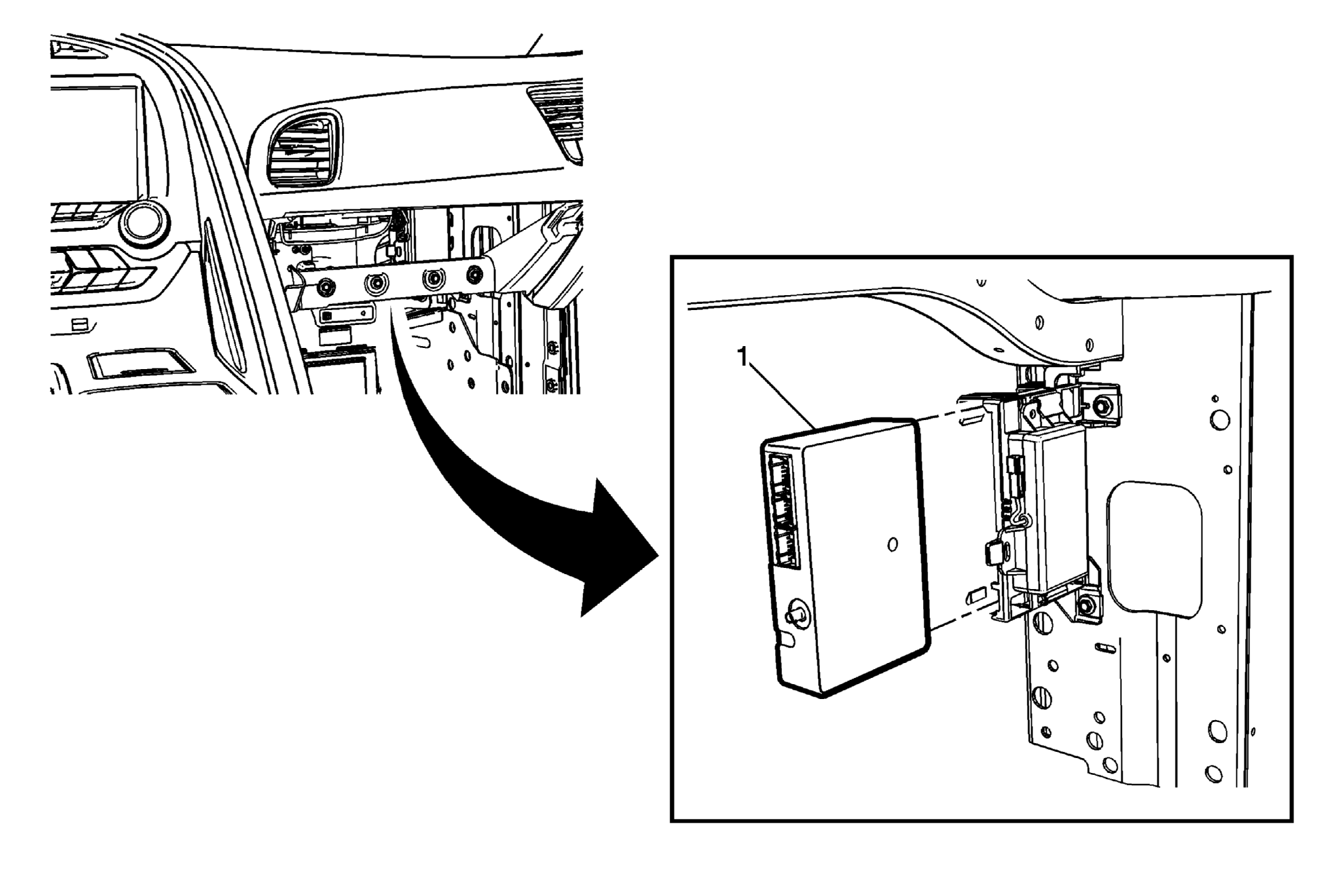

Courtesy of GENERAL MOTORS COMPANY Communication Interface Module Replacement
| Callout |
Component Name |
Preliminary Procedure
Remove the instrument panel lower airbag bracket. Refer to Instrument Panel Lower Airbag Bracket Replacement
. |
| 1 |
Communication Interface Module Procedure
- Disconnect the electrical connectors.
- Slide the module from the bracket tabs to remove.
- For programming and set up, refer to Control Module References
.
|
