Human Machine Interface Control Module Replacement

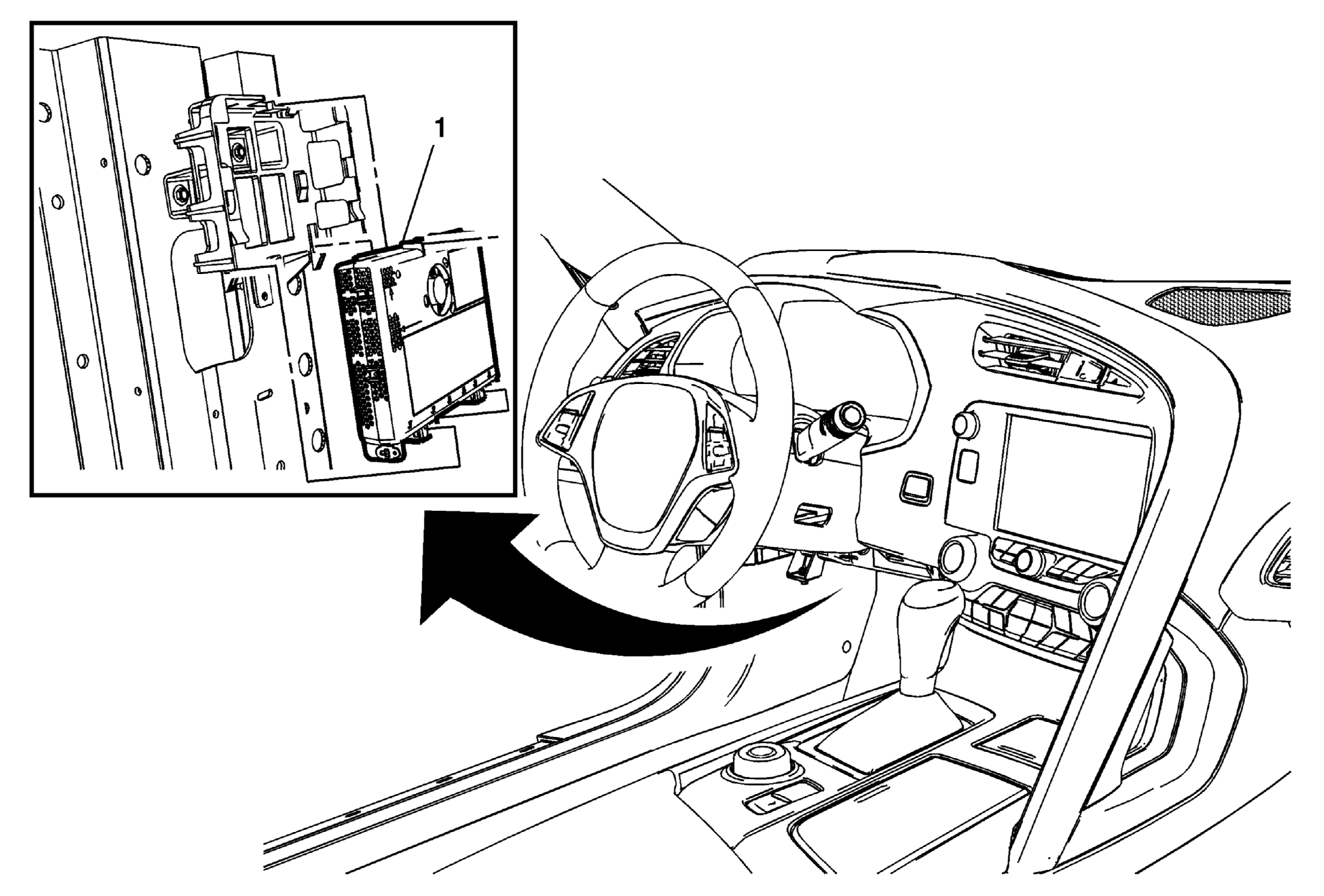

Fig 1: Human Machine Interface Control Module
GM3396141Courtesy of GENERAL MOTORS COMPANY
Human Machine Interface Control Module Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel driver knee bolster deflector bracket. Refer to Instrument Panel Driver Knee Bolster Deflector Bracket Replacement .
  2. Remove the instrument panel insulator panel - left side. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
1 Human Machine Interface Control Module

Procedure

  1. Disconnect the electrical connections.
  2. Release bracket tabs and slide module downward to release.
  3. Refer to Control Module References for programming and setup information.
