K74 Human Machine Interface Control Module X2

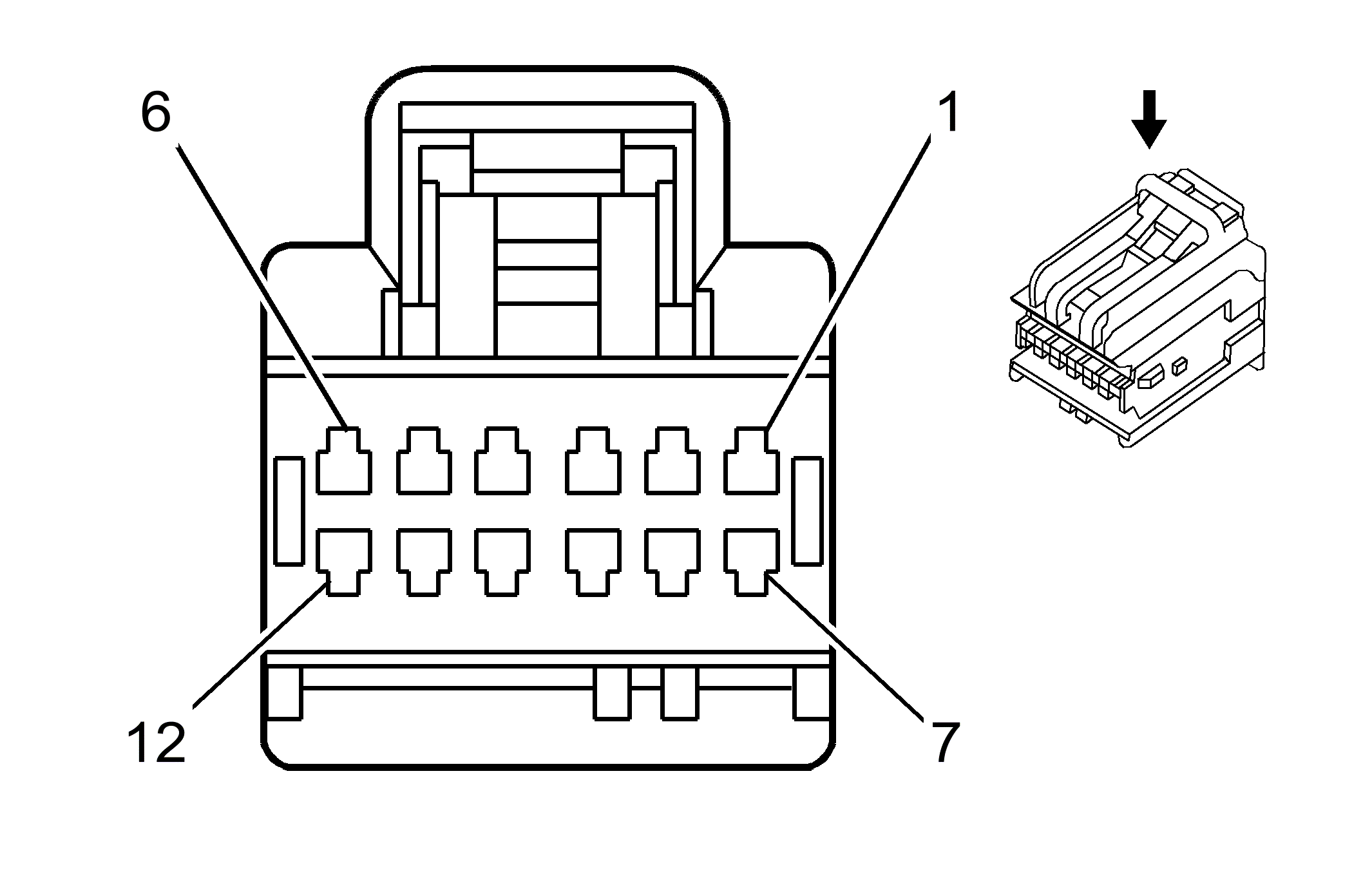

GM2009331
Connector Part Information
  • Harness Type: Instrument Panel Harness
  • OEM Connector: 31410-1121
  • Service Connector: 19151154
  • Description: 12-Way F 64 Series, Sealed (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Pending J-35616-64B (L-BU) Pending Not Available Pending Not Available Not Available
K74 Human Machine Interface Control Module X2

Pin Size Color Circuit Function Terminal Type ID Option
1 0.35 WH/VT 3999 MOST Control I -
2 0.5 WH/L-GN 3997 MOST Serial Data (-) I -
3 0.5 GY/VT 3998 MOST Serial Data (+) I -
4 - - - Not Occupied - -
5 0.35 GY/YE 6972 Camera Signal #2 + I -
6 0.35 WH/L-BU 6973 Camera Signal #2 I -
7 - - - Not Occupied - -
8 0.5 GY/VT 3998 MOST Serial Data (+) I -
9 0.5 WH/L-GN 3997 MOST Serial Data (-) I -
10-12 - - - Not Occupied - -
