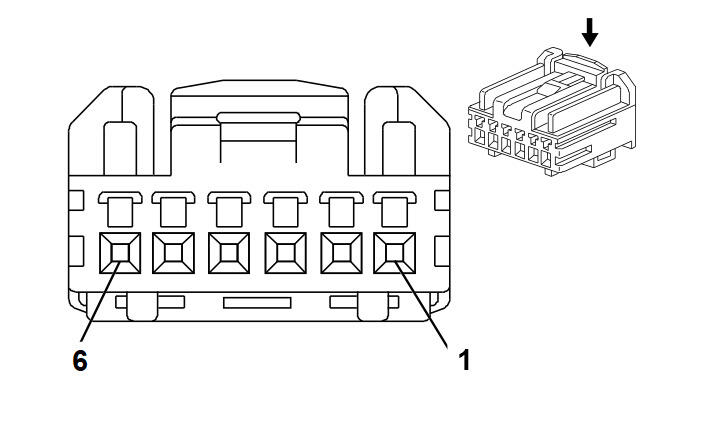

S48E Multi-Function Switch Module - Center Console
|
|
Connector Part Information
- Harness Type: Instrument Panel Harness
- OEM Connector: HCMPB-06-K
- Service Connector: 19115655
- Description: 6-Way F 0.64 HCM Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pending |
Pending |
Pending |
Pending |
Pending |
Pending |
Pending |
S48E Multi-Function Switch Module - Center Console
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
2093 |
Fuel Saver Mode (ECO) Switch 5V Reference |
I |
- |
| 2 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 3 |
0.35 |
WH/VT |
2092 |
Fuel Saver Mode (ECO) Switch Signal |
I |
- |
| 4 |
0.13 |
L-BU/VT |
1788 |
Traction Control Switch Signal (1) |
I |
- |
| 5 |
0.35 |
BK/VT |
3109 |
Economy Mode Switch Low Reference |
I |
- |
| 6 |
0.35 |
BK |
1450 |
Ground |
I |
- |
