HVAC Assembly Components

Items
1: M37 Mode Door Actuator
2: M6L Air Temperature Door Actuator - Left
3: B39 A/C Evaporator Temperature Sensor
4: B7D Air Temperature Sensor - Duct Left Lower
5: B7E Air Temperature Sensor - Duct Right Lower
6: M46 Air Recirculation Door Actuator
7: K8 Blower Motor Control Module
8: M6R Air Temperature Door Actuator - Right

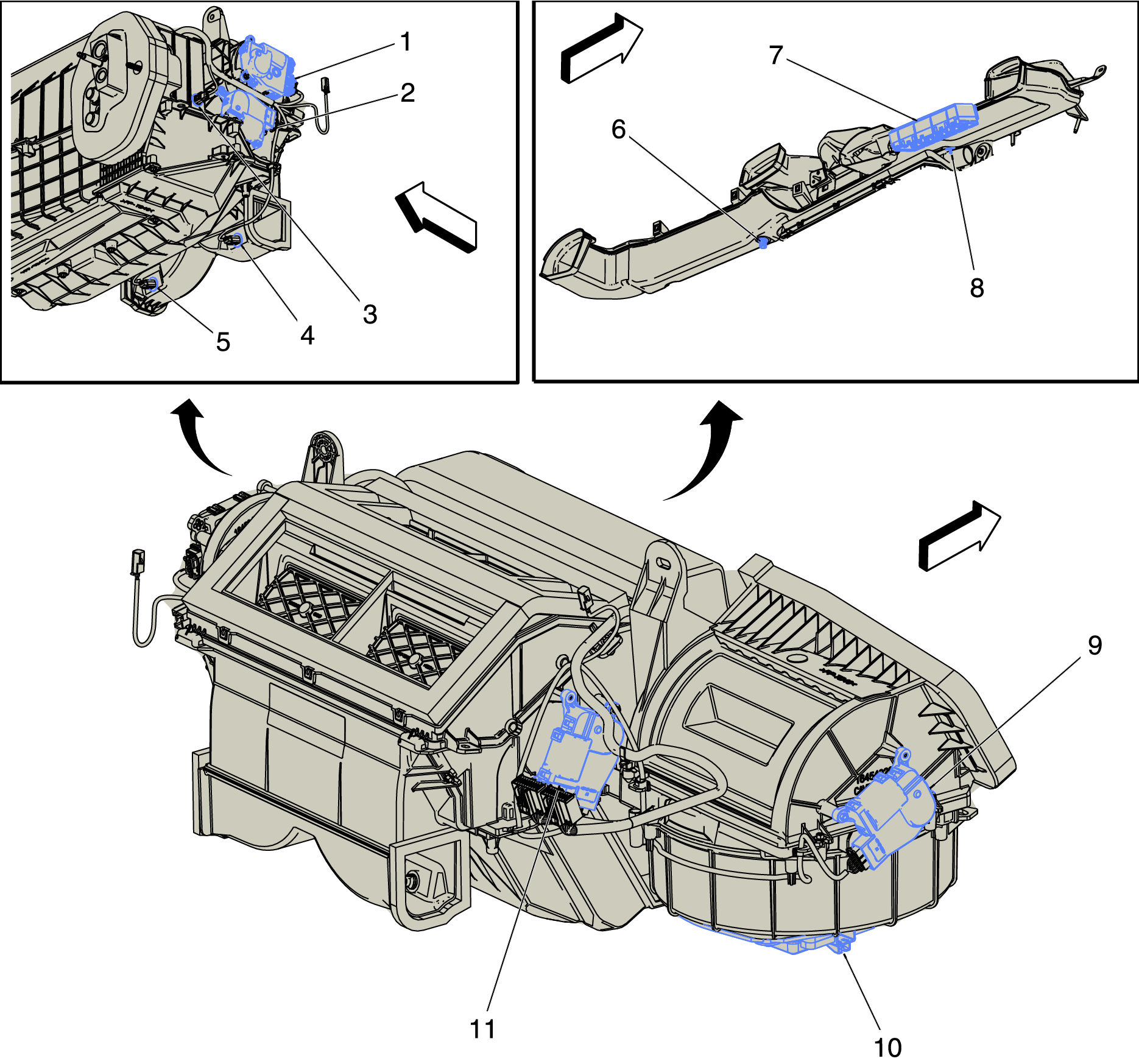

Fig 1: HVAC Assembly Components

Courtesy of GENERAL MOTORS COMPANY
