Rear of Instrument Panel Components

Rear of Instrument Panel Components

Items
1:  T15 Navigation Antenna Signal Splitter T15 Navigation Antenna Signal Splitter X1T15 Navigation Antenna Signal Splitter X1 (EXP)T15 Navigation Antenna Signal Splitter X2 (EXP)T15 Navigation Antenna Signal Splitter X2T15 Navigation Antenna Signal Splitter X3
2:  T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front
3:  K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1K73 Telematics Communication Interface Control Module X2K73 Telematics Communication Interface Control Module X7

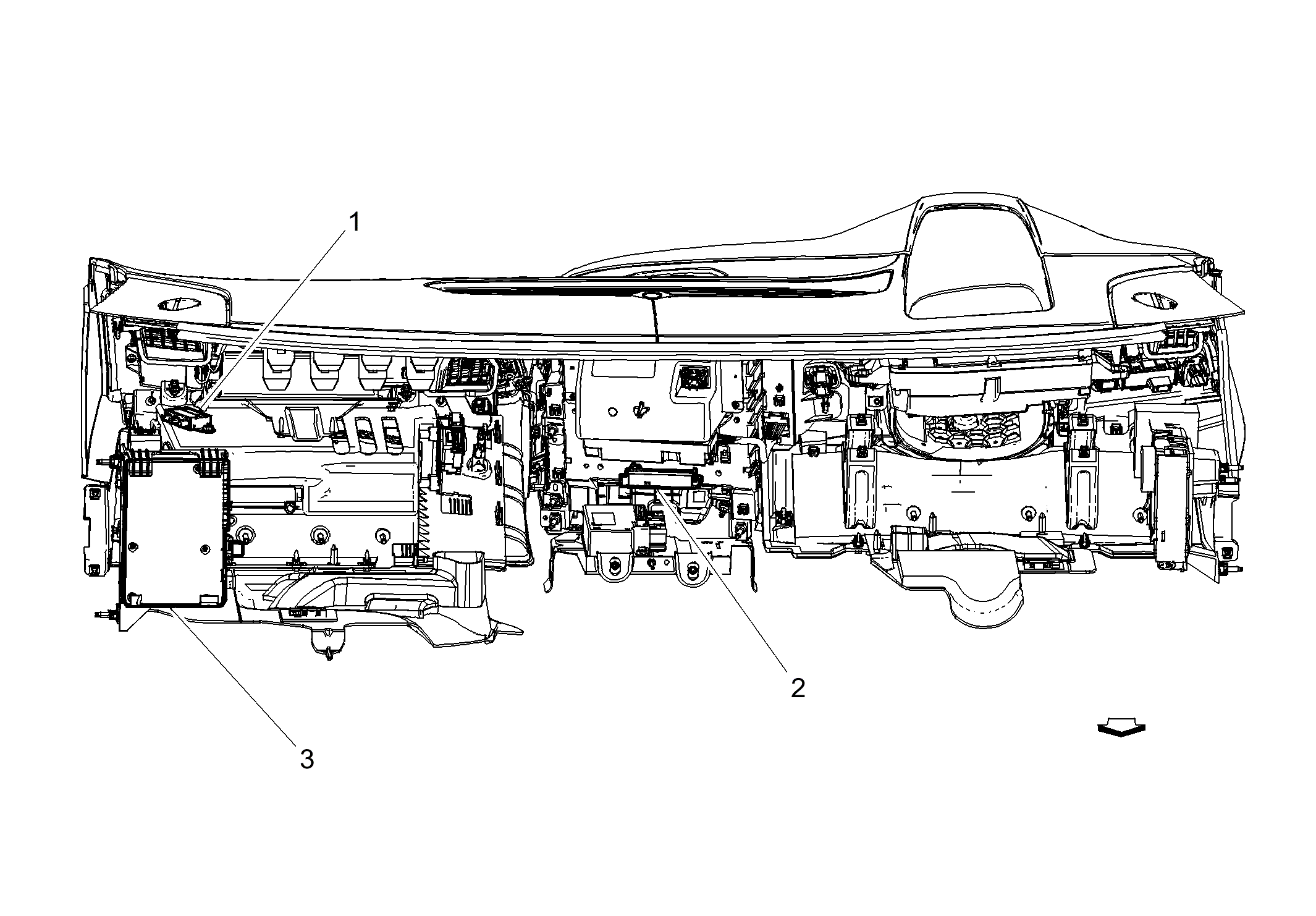

Fig 1: Rear of Instrument Panel Components
GM3392128Courtesy of GENERAL MOTORS COMPANY
