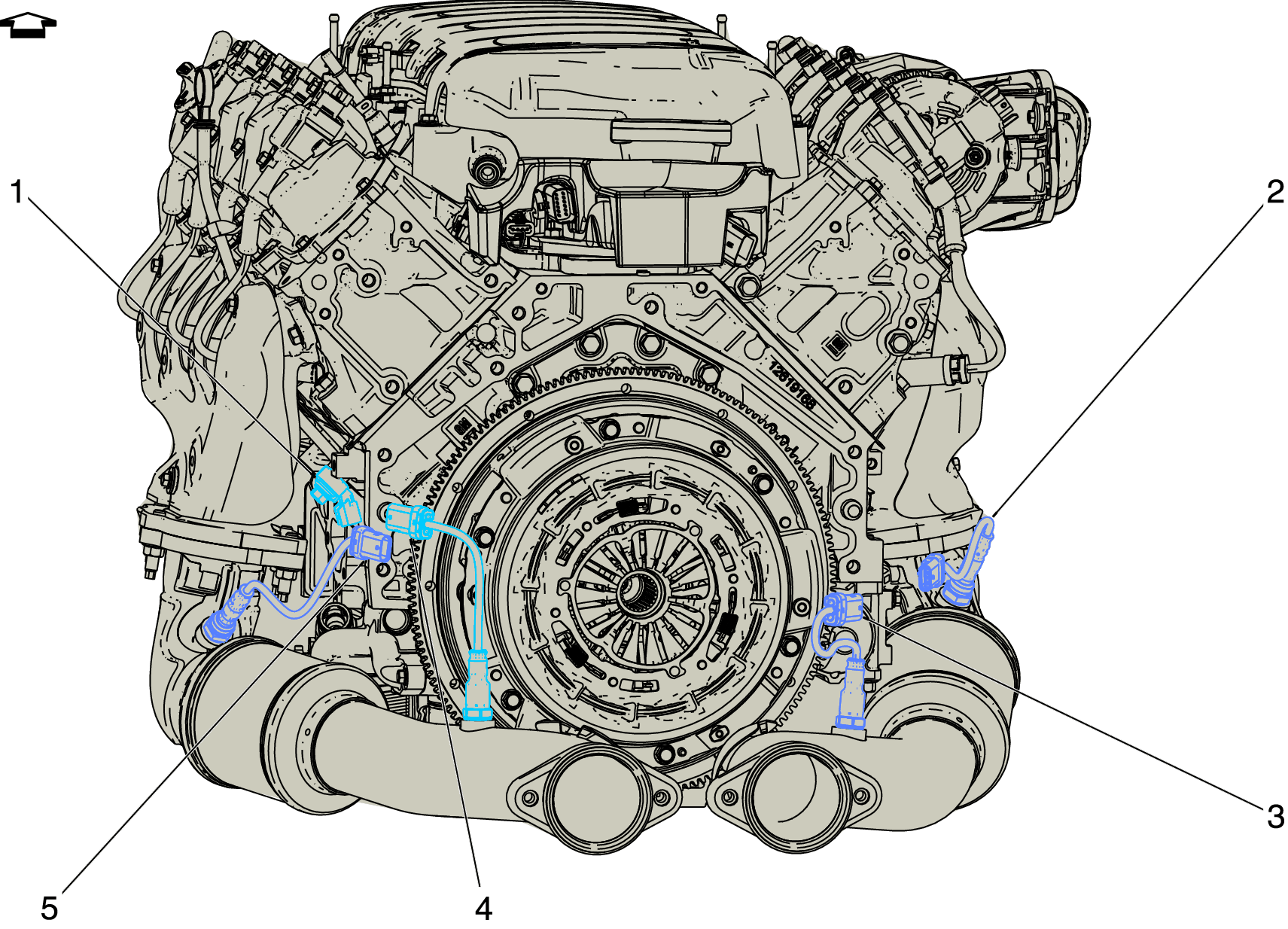

Rear of Engine Components
Rear of Engine Components
| Items |
|---|
| 1: B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 2: B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1 |
| 3: B52D Heated Oxygen Sensor - Bank 1 Sensor 2 B52D Heated Oxygen Sensor - Bank 1 Sensor 2 |
| 4: B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1 |
| 5: B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2 |
