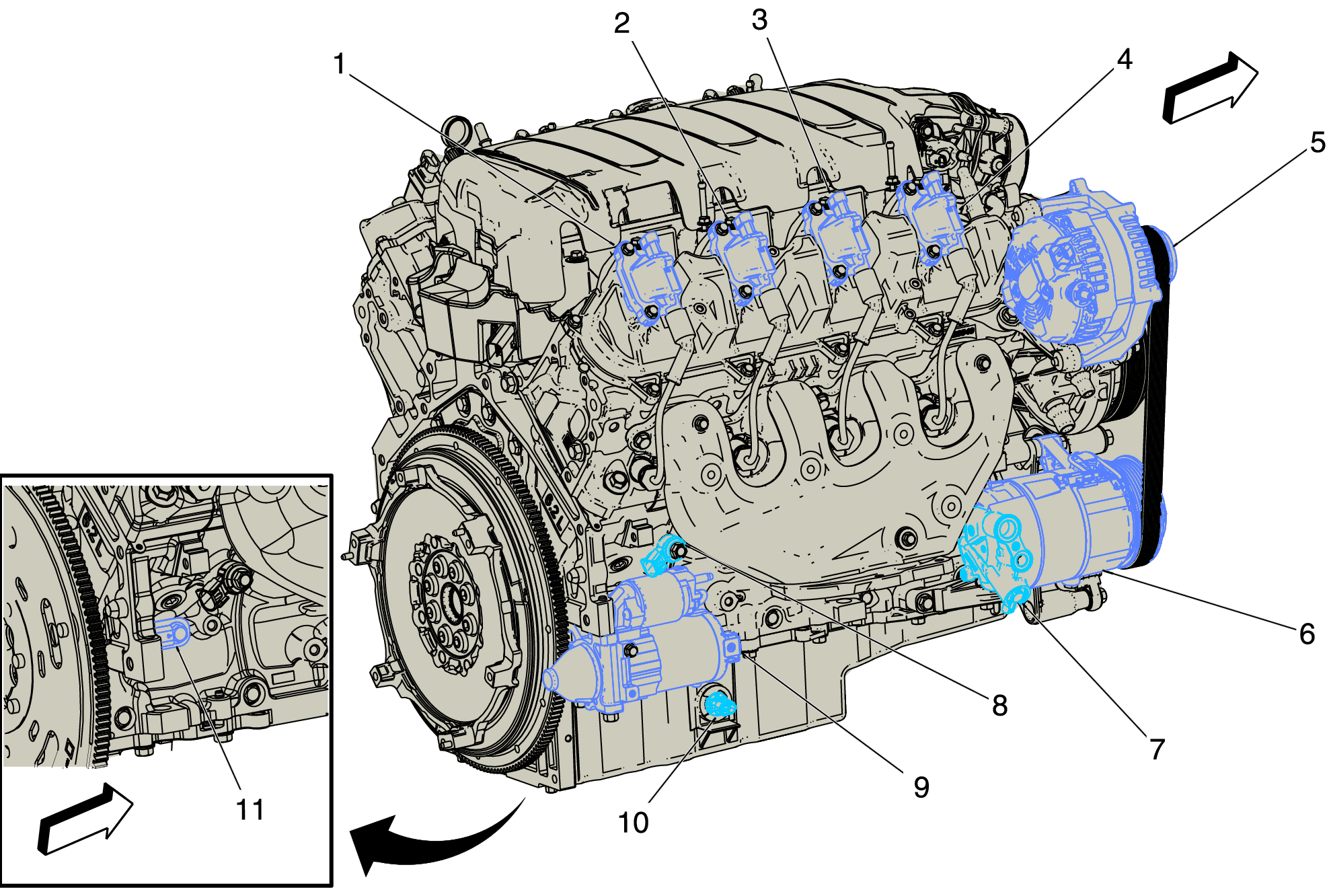

Right Side of Engine Components
Right Side of Engine Components
| Items |
|---|
| 1: T8H Ignition Coil 8 T8H Ignition Coil 8 |
| 2: T8F Ignition Coil 6 T8F Ignition Coil 6 |
| 3: T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 4: T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 5: G13 Generator G13 Generator X1 |
| 6: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 7: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 8: B68B Knock Sensor 2 B68B Knock Sensor 2 |
| 9: M64 Starter Motor M64 Starter Motor X1 |
| 10: B35 Engine Oil Level Switch B35 Engine Oil Level Switch |
