Steering Column Lock Control Module Replacement

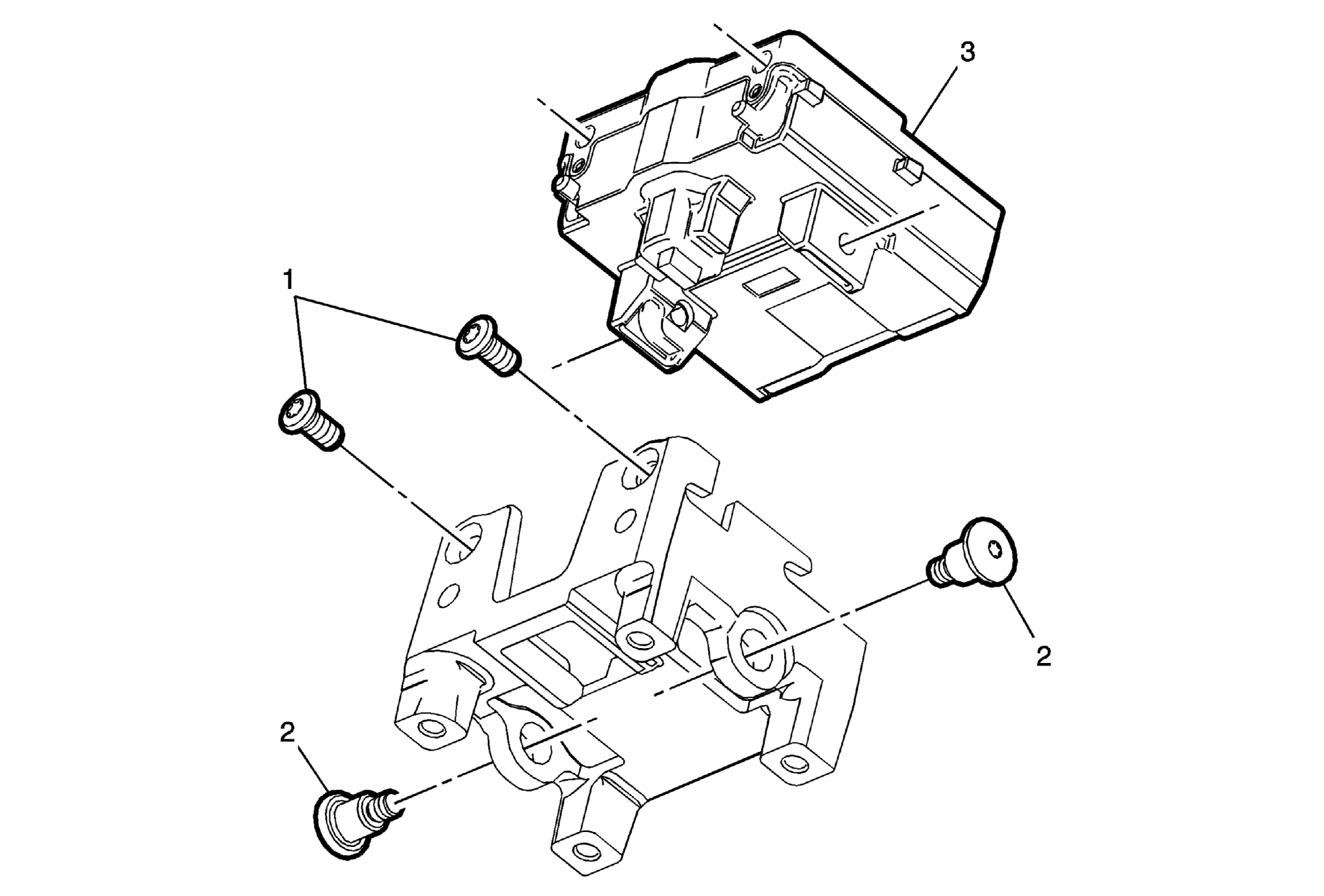

Fig 1: Steering Column Lock Control Module

Courtesy of GENERAL MOTORS COMPANY

Steering Column Lock Control Module Replacement

Callout	Component Name
Preliminary Procedures  Remove the steering column electronic lock. Refer to Steering Column Electronic Lock Replacement .
1	Steering Column Lock Control Module Front Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  8 N.m (71 lb in)
2	Steering Column Lock Control Module Side Bolt (Qty: 2) Tighten  8 N.m (71 lb in)
3	Steering Column Lock Control Module
