Rear Object Alarm Control Module Replacement (Object Detection System And Pedestrian Protection System)

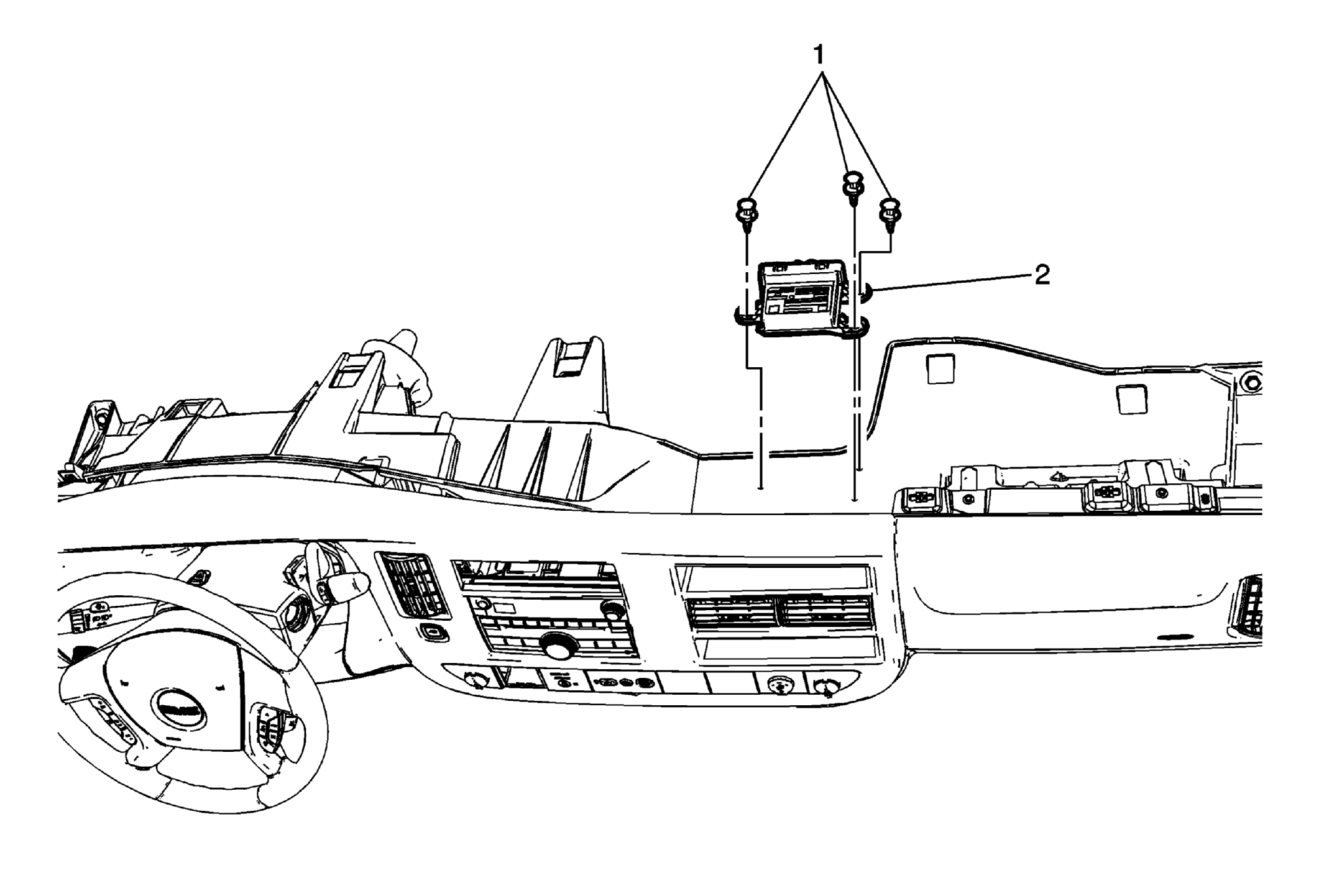

Fig 1: Rear Object Alarm Control Module

Courtesy of GENERAL MOTORS COMPANY

Rear Object Alarm Control Module Replacement

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .
1	Rear Object Alarm Control Module Retainer (Qty: 3)
2	Rear Object Alarm Control Module Procedure Disconnect the electrical connector. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .

Rear Object Alarm Control Module Retainer (Qty: 3)

Rear Object Alarm Control Module

Procedure
