Steering Wheel Secondary/Configurable Controls Wiring Schematics

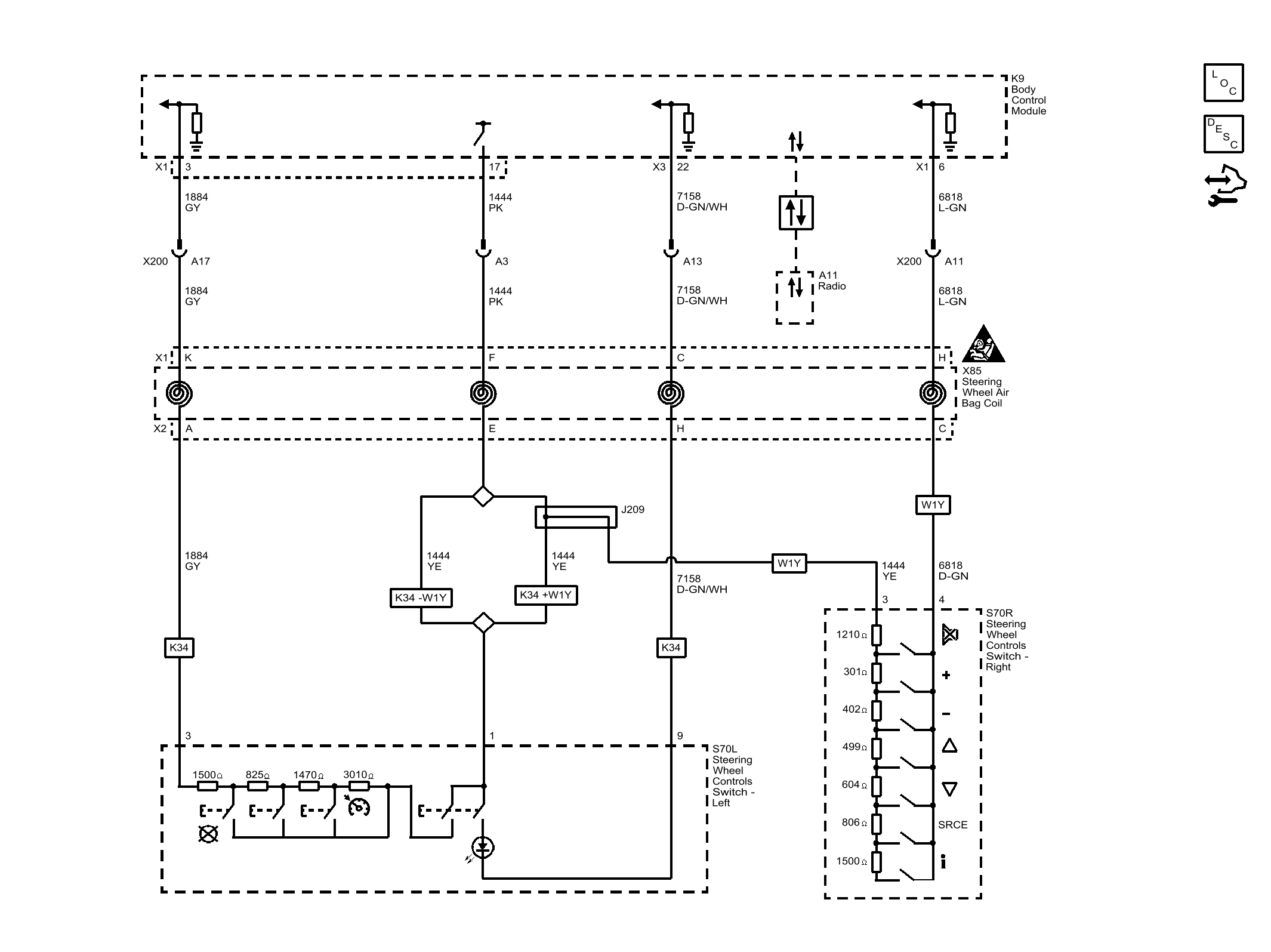

Fig 1: Steering Wheel Secondary/Configurable Controls Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
