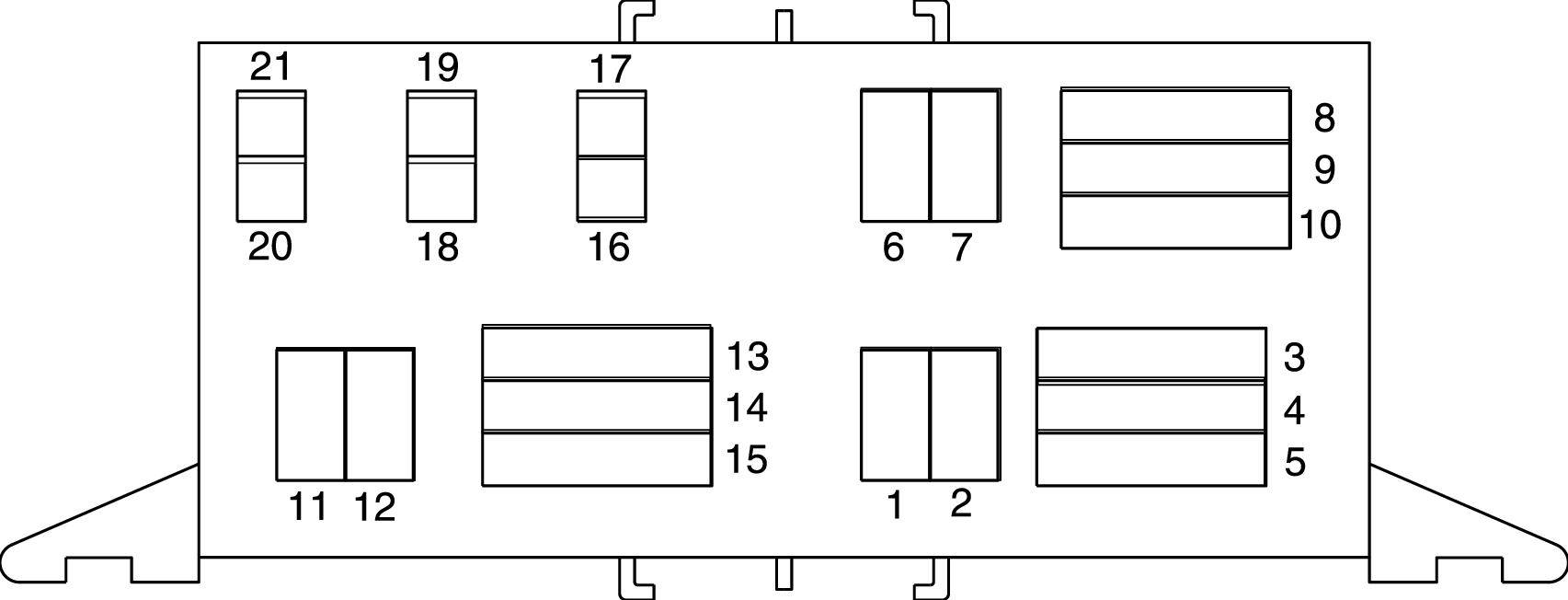

Fuse Block - Rear Bottom View (PRP)

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Service by Harness - See Part Catalog	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	OG	OG	740	Battery Positive Voltage	I	-
2	TN	TN	294	Access Panel Left Front Side Lock Actuators Unlock Control	I	-
3	L-BU	L-BU	195	Access Panel Left Side Front Relay Control	I	-
4	-	-	-	Not Occupied	-	-
5	OG	OG	740	Battery Positive Voltage	I	-
6	OG	OG	740	Battery Positive Voltage	I	-
7	PK	PK	1092	Access Panel Left Rear Side Lock Actuators Unlock Control	I	-
8	L-GN	L-GN	1391	Access Panel Left Side Rear Relay Control	I	-
9	-	-	-	Not Occupied	-	-
10	OG	OG	740	Battery Positive Voltage	I	-
11	OG	OG	740	Battery Positive Voltage	I	-
12	TN/BK	TN/BK	1095	Access Panel Right Side Lock Actuators Unlock Control	I	-
13	L-BU	L-BU	1344	Access Panel Right Side Relay Control	I	-
14	-	-	-	Not Occupied	-	-
15	OG	OG	740	Battery Positive Voltage	I	-
16	RD	RD	1042	Battery Positive Voltage	I	UF2
17	OG	OG	840	Battery Positive Voltage	I	UF2
18	RD	RD	1042	Battery Positive Voltage	I	-
19	OG	OG	740	Battery Positive Voltage	I	-
20-21	-	-	-	Not Occupied	-	-
