Transmission Control Replacement

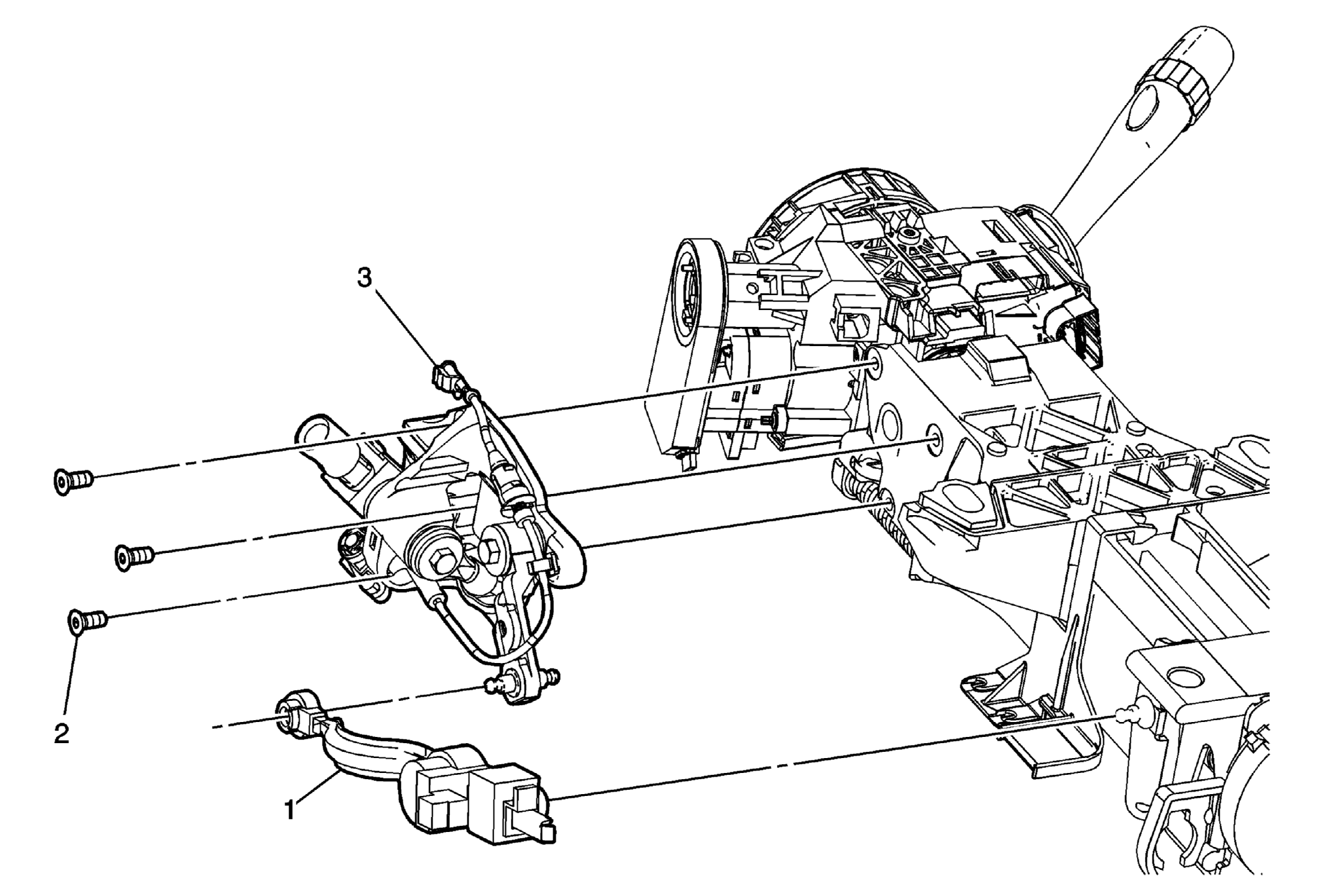

Fig 1: Transmission Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the shift lever. Refer to Shift Lever Replacement .
1	Automatic Transmission Shift Lock Control Actuator Procedure Use the appropriate tool to remove the automatic transmission shift lock control actuator. After repairs, the automatic transmission shift lock control actuator may need to be adjusted. Refer to Automatic Transmission Shift Lock Control Actuator Replacement .
2	Transmission Control Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Transmission Control Procedure Turn the ignition lock cylinder to the OFF-LOCK position and remove the park lock cable from the ignition lock cylinder case.
