Front Exterior Lighting (Base)

Front Exterior Lighting (Base)

Items
1:  E13R Headlamp - Right
2:  E4P Park/Turn Signal Lamp - Right
3:  E2RF Side Marker Lamp - Right Front
4:  E13L Headlamp - Left
5:  E2LF Side Marker Lamp - Left Front
6:  E4N Park/Turn Signal Lamp - Left

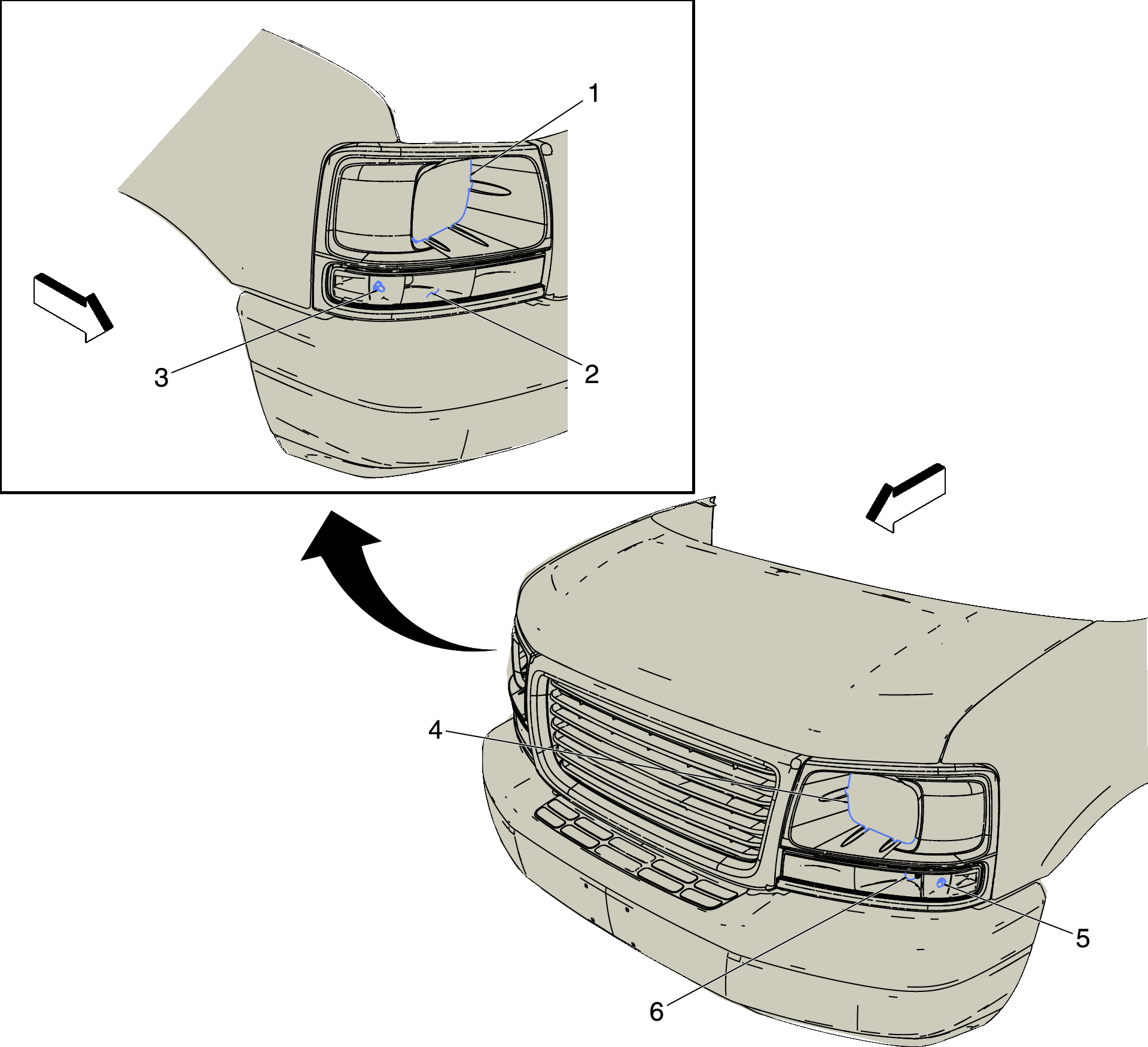

Fig 1: Front Exterior Lighting (Base)
GM2831196Courtesy of GENERAL MOTORS COMPANY
