Rearview Driver Information Camera Replacement
Courtesy of GENERAL MOTORS COMPANY Rearview Driver Information Camera Replacement
| Callout |
Component Name |
Preliminary Procedure
Remove the rear closure center applique. Refer to Rear Closure Center Applique Replacement
. |
| 1 |

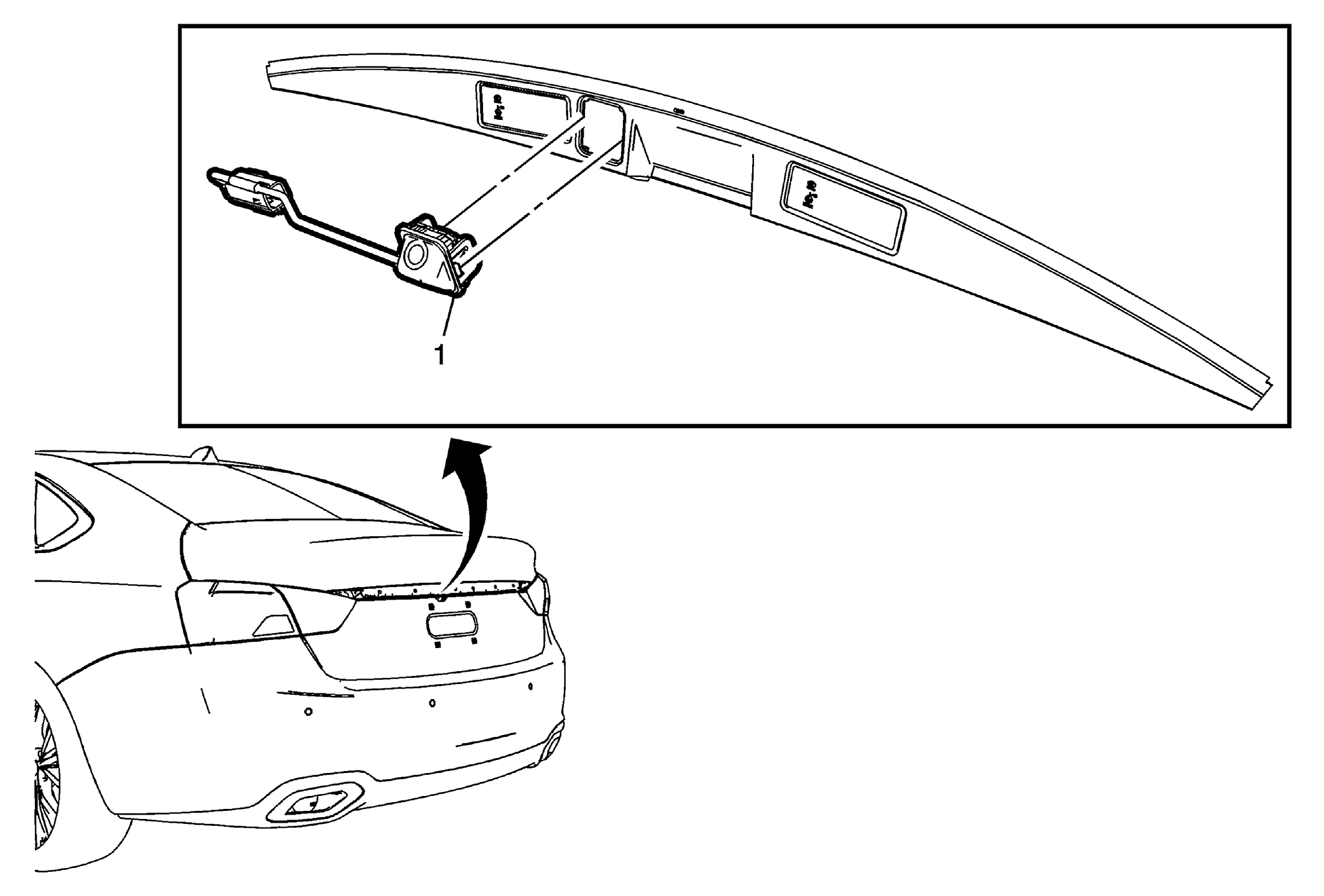

Rearview Camera Procedure
- Disconnect the electrical connector.
- Depress the clip fingers and push outward to remove the rearview camera from the applique.
|
