HVAC Assembly Components (C67)

Items
1: B39 A/C Evaporator Temperature Sensor
2: M8 Blower Motor M8 Blower Motor
3: M6 Air Temperature Door Actuator (C67) M6 Air Temperature Door Actuator (C67)
4: M4 Air Inlet Door Actuator M4 Air Inlet Door Actuator

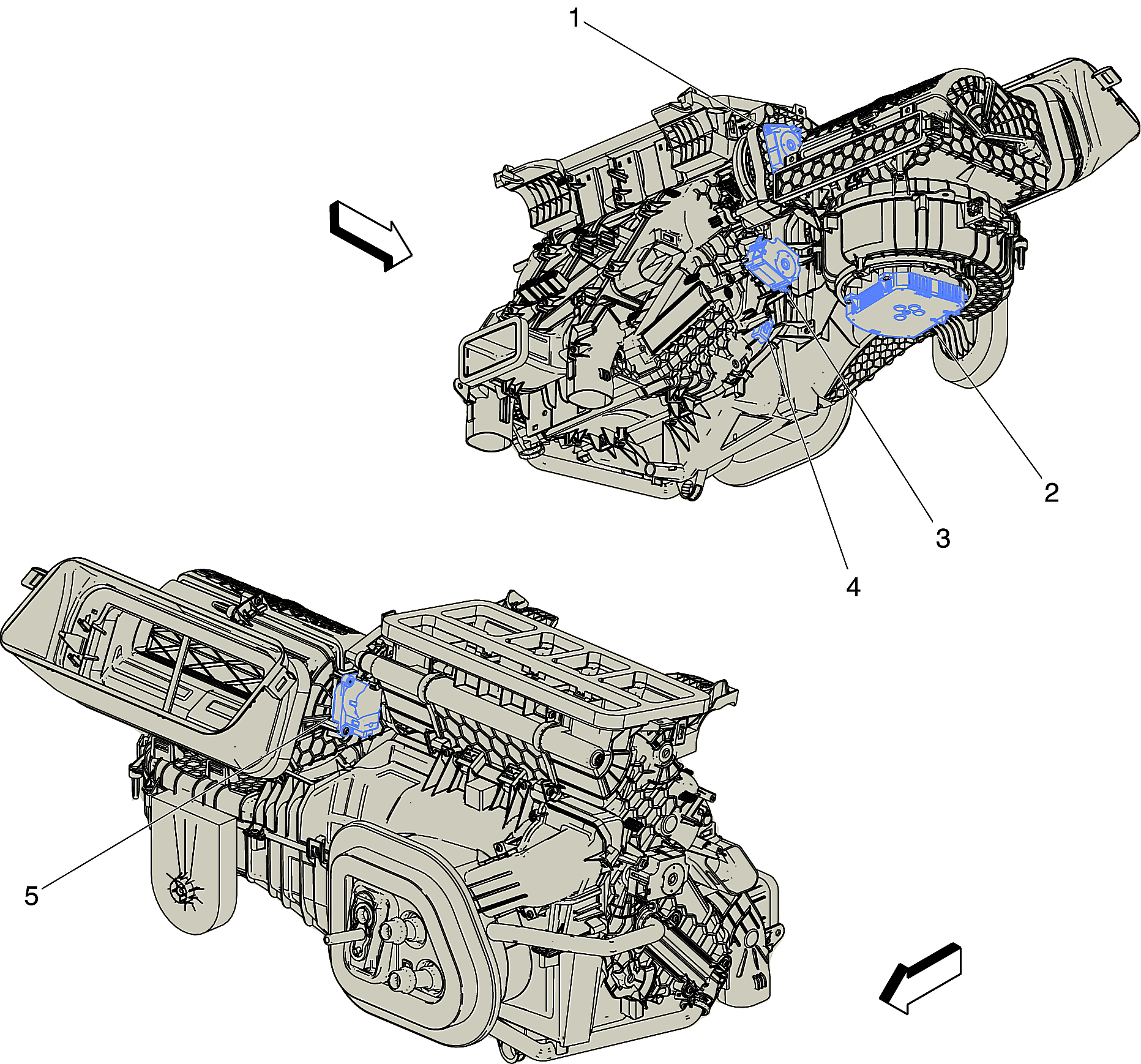

Fig 1: HVAC Assembly Components (C67)

Courtesy of GENERAL MOTORS COMPANY
