Front of Engine Components (LUK)

Front of Engine Components (LUK)

Items
1:  Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LFX)Q17A Fuel Injector 1 (LKW)Q17A Fuel Injector 1 (LUK)
2:  Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LFX)Q17B Fuel Injector 2 (LKW)Q17B Fuel Injector 2 (LUK)
3:  B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (LFX)B47B Fuel Rail Pressure Sensor (LKW)B47B Fuel Rail Pressure Sensor (LUK)
4:  Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LFX)Q17C Fuel Injector 3 (LKW)Q17C Fuel Injector 3 (LUK)
5:  G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LFX)G18 High Pressure Fuel Pump (LKW)G18 High Pressure Fuel Pump (LUK)
6:  B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake (LKW)B23F Camshaft Position Sensor - Intake (LUK)
7:  Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LFX)Q17D Fuel Injector 4 (LKW)Q17D Fuel Injector 4 (LUK)
8:  B68 Knock Sensor (LUK) B68 Knock Sensor (LUK)
9:  B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (LFX)B37 Engine Oil Pressure Switch (LUK)
10:  B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFX)B26 Crankshaft Position Sensor (LKW)B26 Crankshaft Position Sensor (LUK)

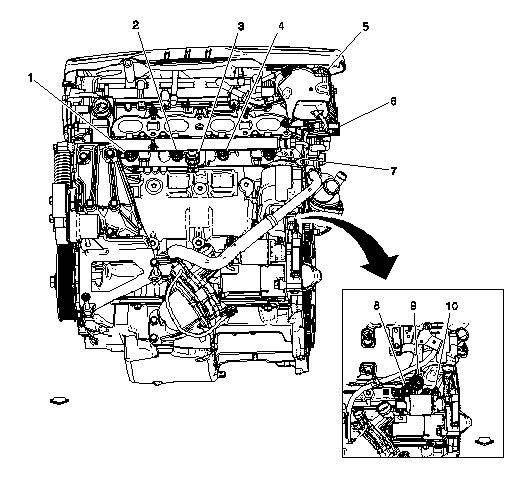

Fig 1: Front of Engine Components (LUK)
GM2913692Courtesy of GENERAL MOTORS COMPANY
