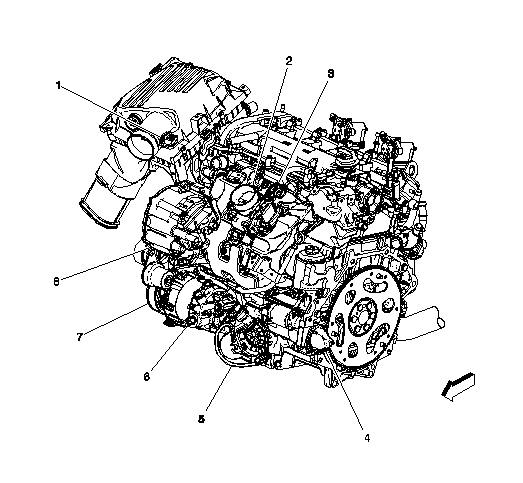

Left Front of Engine Components (LUK)
Left Front of Engine Components (LUK)
| Items |
|---|
| 1: B75B Mass Air Flow/Intake Air Temperature Sensor (LUK) B75B Mass Air Flow/Intake Air Temperature Sensor (LUK) |
| 2: Q38 Throttle Body Q38 Throttle Body |
| 3: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LFX or LKW)B74 Manifold Absolute Pressure Sensor (LUK) |
| 4: M64 Starter Motor M64 Starter Motor X1 (LFX)M64 Starter Motor X1 (LKW)M64 Starter Motor X1 (LUK)M64 Starter Motor X2 (LFX)M64 Starter Motor X2 (LKW)M64 Starter Motor X2 (LUK) |
| 5: G21 Secondary Air Injection Pump G21 Secondary Air Injection Pump (LFX or LKW with NU6)G21 Secondary Air Injection Pump (LUK with NU6) |
| 6: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 7: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 8: G43 Starter/Generator Coolant Pump (HP6) G43 Starter/Generator Coolant Pump (HP6) |
